OptiMill®-Uni-HPC-Pocket
The OptiMill®-Uni-HPC-Pocket corner milling cutter with integrated drill point was specially developed for pocket milling of steel and cast iron. The specially developed pointing together with three large chip spaces guarantees optimum chip removal. The special core rise ensures optimum stability in the cutting process, making the tool ideal for helical milling and grooving.
Selected facets:
Remove all filters-
Milling type
-
Product Family
-
Diameter (d1)
-
-
Total length (l1)
-
-
Flute length (l2)
-
-
Neck length (l3)
-
-
Shank type
-
Cooling
-
Product category
(8)
(8)
(8)
(1)-
OptiMill®-Uni-HPC-Pocket
l1: 62 mm; l2: 13 mm; l3: 24 mm; d1: 5 mm; d2: 6 mm; R: 0,25 mm; z: 3; SCM800-0500Z03R-R0025HB-HP920
Order number: 31031146
In Stock -

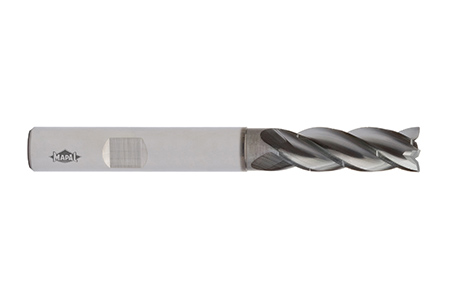

OptiMill®-Uni-HPC-Pocket
l1: 62 mm; l2: 17 mm; l3: 24 mm; d1: 5 mm; d2: 6 mm; R: 0,2 mm; z: 4; 3xD; SCM813-0500Z03R-R0020HB3-HP920
Order number: 31515907
In Stock -

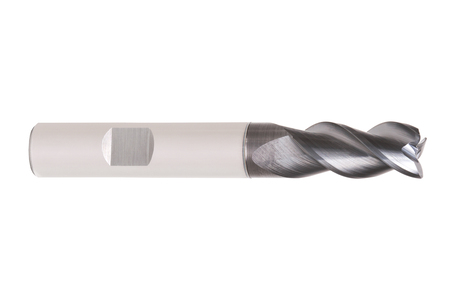

OptiMill®-Uni-HPC-Pocket
l1: 63 mm; l2: 16 mm; l3: 25 mm; d1: 7 mm; d2: 8 mm; R: 0,35 mm; z: 3 ; SCM810-0700Z03R-R0035HB-HP920
Order number: 30788026
In Stock -
OptiMill®-Uni-HPC-Pocket
l1: 68 mm; l2: 16 mm; l3: 30 mm; d1: 7 mm; d2: 8 mm; R: 0,35 mm; z: 3 ; SCM800-0700Z03R-R0035HB-HP920
Order number: 30787960
In Stock -
OptiMill®-Uni-HPC-Pocket
l1: 58 mm; l2: 8 mm; l3: 17 mm; d1: 7 mm; d2: 8 mm; R: 0,2 mm; z: 3 ; SCM840-0700Z03R-R0020HB-HP920
Order number: 30965835
In Stock -
OptiMill®-Uni-HPC-Pocket
l1: 72 mm; l2: 22 mm; l3: 30 mm; d1: 9 mm; d2: 10 mm; R: 0,45 mm; z: 3 ; SCM810-0900Z03R-R0045HB-HP920
Order number: 30788030
In Stock -

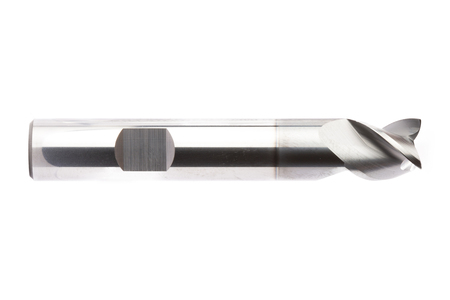

OptiMill®-Uni-HPC-Pocket
l1: 66 mm; l2: 10 mm; l3: 21 mm; d1: 9 mm; d2: 10 mm; R: 0,32 mm; z: 3 ; SCM840-0900Z03R-R0032HB-HP920
Order number: 30965839
In Stock -

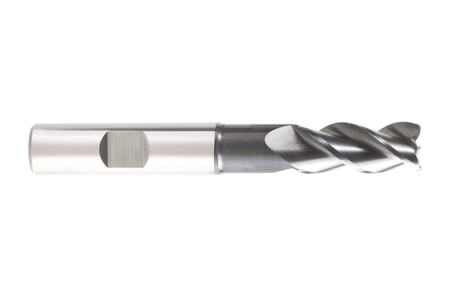

OptiMill®-Uni-HPC-Pocket
l1: 80 mm; l2: 22 mm; l3: 38 mm; d1: 9 mm; d2: 10 mm; R: 0,45 mm; z: 3 ; SCM800-0900Z03R-R0045HB-HP920
Order number: 30787964
In Stock
