OptiMill®-Uni-HPC-Pocket
Diameter d1 (mm)
9.0
Your unit price
*Login requiredArticle
30787964
Quantity
Added to Your Shopping Cart
Inform me when article is back in stock
We recommend:

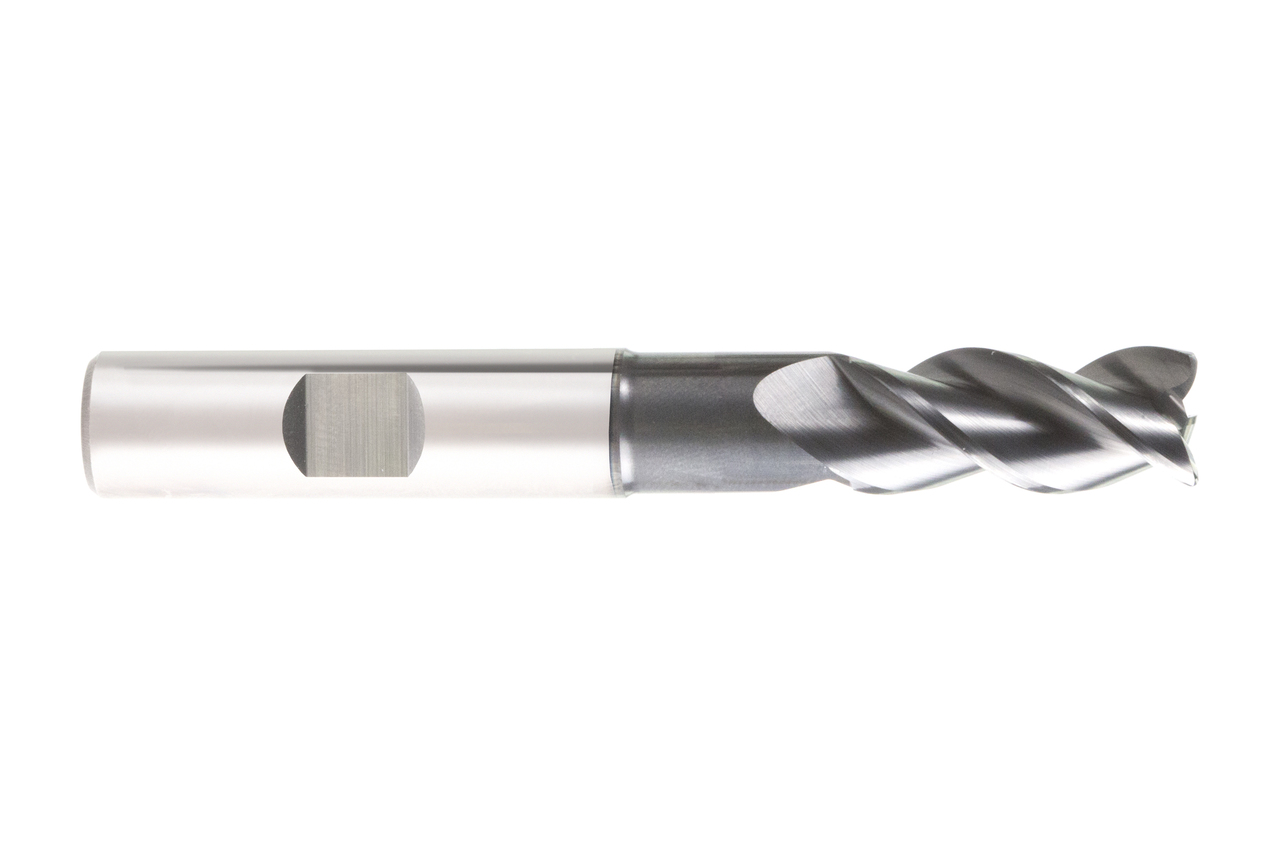

Product description
The OptiMill®-Uni-HPC-Pocket corner milling cutter with integrated drill point was specially developed for pocket milling of steel and cast iron. The specially developed pointing together with three large chip spaces guarantees optimum chip removal. The special core rise ensures optimum stability in the cutting process, making the tool ideal for helical milling and grooving.

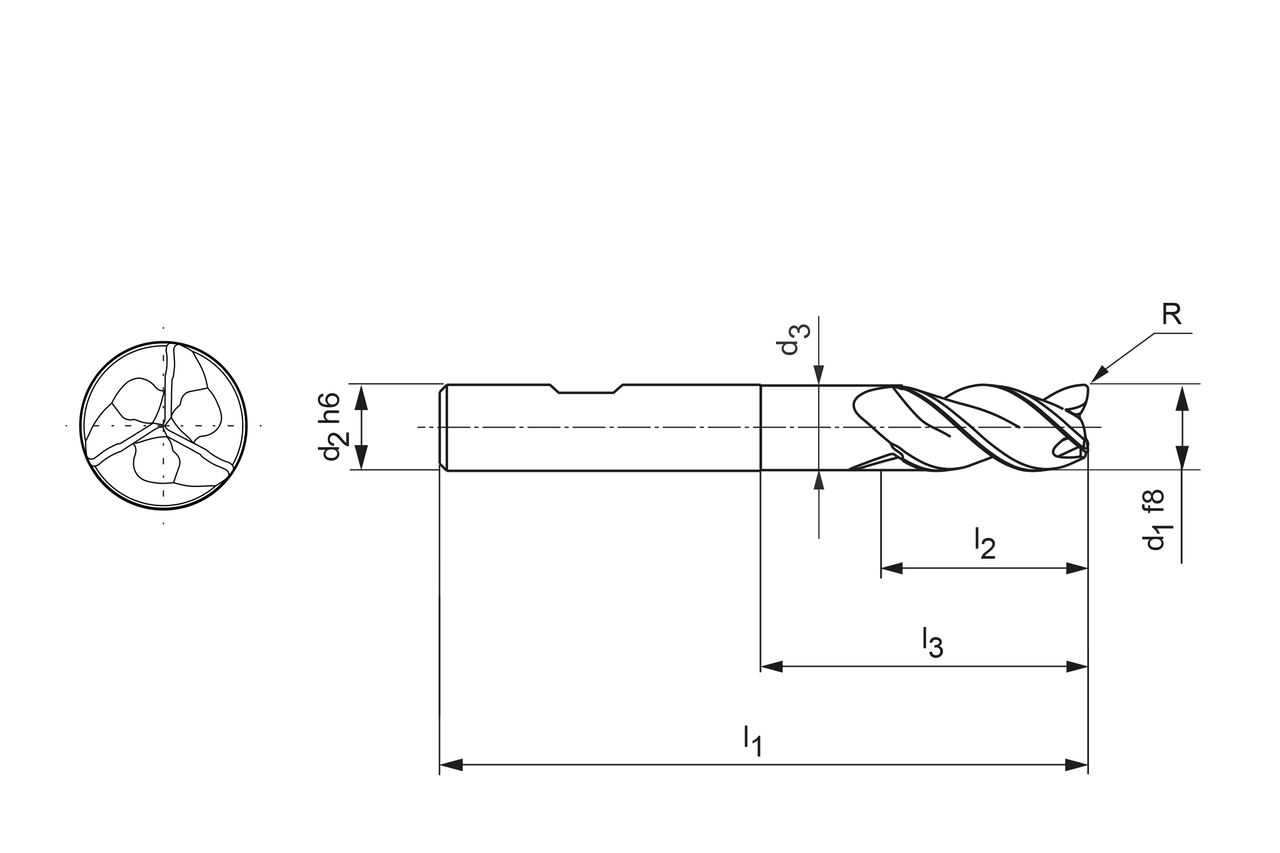

Technical specifications
- Product class
- Performance-Line
- Diameter (d1)
- 9 mm
- Shaft diameter (d2)
- 10 mm
- Cylindrical part diameter (d3)
- 8.7 mm
- Total length (l1)
- 80 mm
- Length of cutting edge (l2)
- 22 mm
- Neck length (l3)
- 38 mm
- Corner radius (R)
- 0.45 mm
- Taper angle (φ)
- 28.1 °
- Number of cutting edges (z)
- 3
- Cooling
- external cooling
- Shank type
- HB
- Cutting material
- HP920
- Material group
- MV
- Specification
- SCM800-0900Z03R-R0045HB-HP920
Downloads
- 3D envelope in stp
- 30787964_607977083-000-00-E43.STP
- Technical drawing in dxf
- 30787964_607977084-000-00-ED1.DXF
- Technical drawing in pdf
- 30787964_607977084-000-00-ED1.PDF
- Technical drawing in tif
- 30787964_607977084-000-00-ED1.TIF
- Brochure OptiMill-HPC-Pocket
- 30787964_OptiMill-HPC-Pocket__EN.pdf
