OptiMill®-Uni-HPC-Pocket
Diameter d1 (mm)
7.0
Your unit price
*Login requiredWe recommend:
Product description

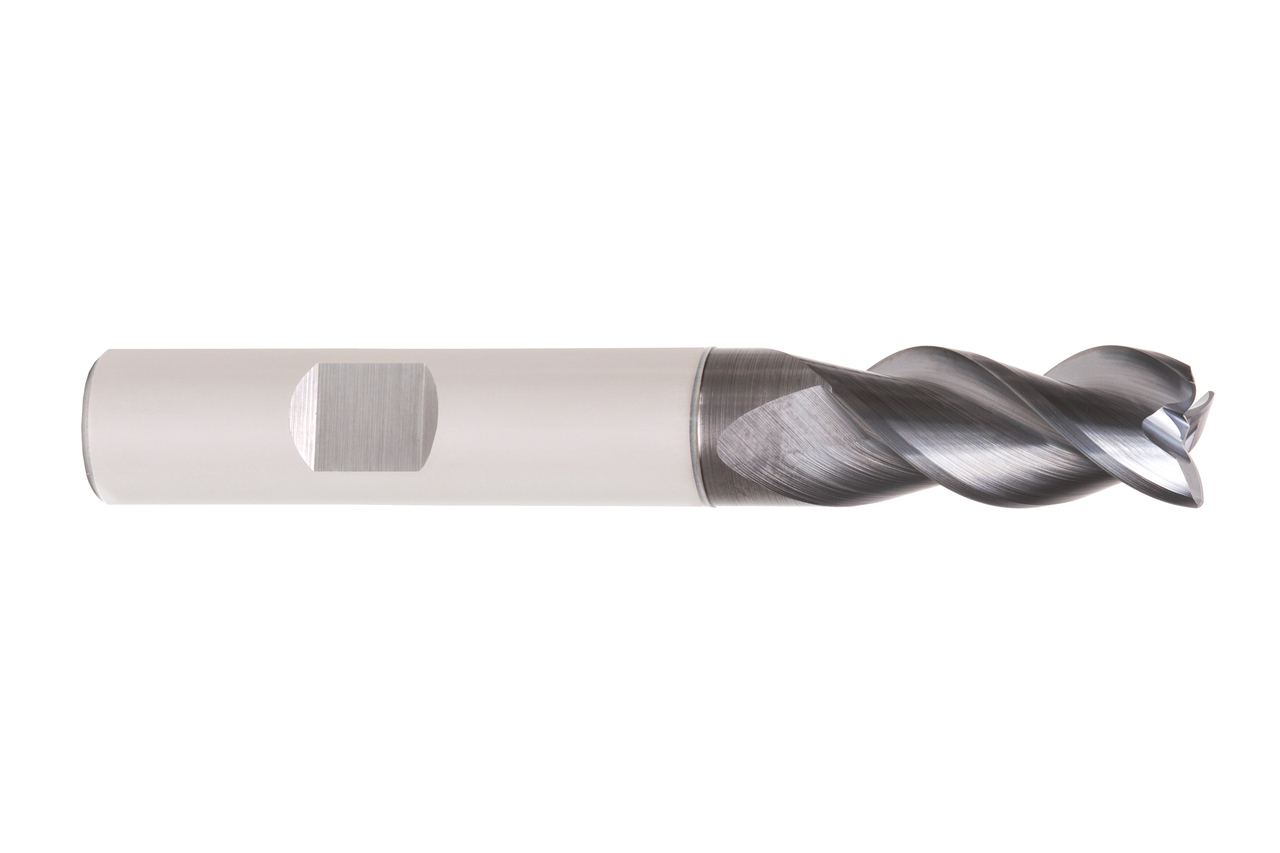

The OptiMill®-Uni-HPC-Pocket corner milling cutter with integrated drill point was specially developed for pocket milling of steel and cast iron. The specially developed pointing together with three large chip spaces guarantees optimum chip removal. The special core rise ensures optimum stability in the cutting process, making the tool ideal for helical milling and grooving.
Technical specifications
- Product class
- Performance-Line
- Diameter (d1)
- 7 mm
- Shaft diameter (d2)
- 8 mm
- Cylindrical part diameter (d3)
- 6.8 mm
- Gesamtlänge (l1)
- 63 mm
- Schneidenlänge (l2)
- 16 mm
- Halslänge (l3)
- 25 mm
- Eckenradius (R)
- 0.35 mm
- Konuswinkel (φ)
- 28.1 °
- Anzahl Schneiden (z)
- 3
- Kühlmittelzufuhr
- äußere Kühlmittelzufuhr
- Schaft Typ
- HB
- Schneidstoff
- HP920
- Materialgruppe
- MV
- Spezifikation
- SCM810-0700Z03R-R0035HB-HP920
Downloads

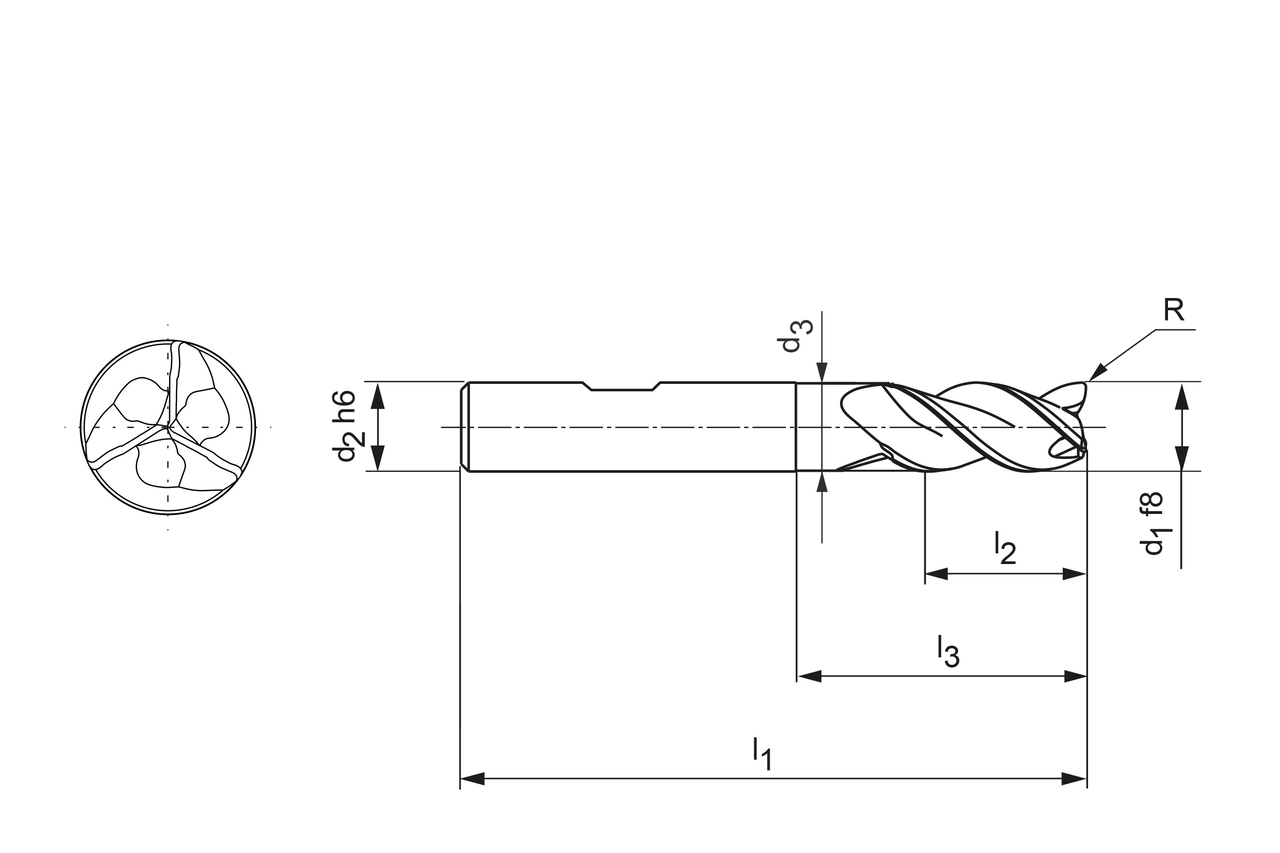

- Technische Zeichnung in tif
- 30788026_607921459-000-00-ED1.TIF
- Technische Zeichnung in pdf
- 30788026_607921459-000-00-ED1.PDF
- Technische Zeichnung in dxf
- 30788026_607921459-000-00-ED1.DXF
- 3D Hüllkontur in stp
- 30788026_607921460-000-00-E43.STP
- Brochure OptiMill-HPC-Pocket
- 30788026_OptiMill-HPC-Pocket__EN.pdf
