OptiMill®-3D-BN-Hardened
The OptiMill®-3D-BN-Hardened ball nose mill cutter has been specifically designed for machining materials up to 68 HRC. It is characterized by high radius accuracy, making it ideal for high-precision machining of 3D contours. In addition to an extremely heat-resistant coating and a special carbide substrate, these tools are distinguished by dimensions and geometries tailored specifically to mold making.
Selected facets:
Remove all filters-
Milling type
-
Product Family
-
Diameter (d1)
-
-
Total length (l1)
-
-
Flute length (l2)
-
-
Neck length (l3)
-
-
Shank type
-
Cooling
-
Product category
(24)
(24)
(24)-

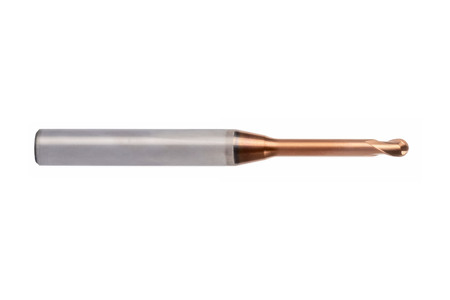

OptiMill®-3D-BN-Hardened
l1: 50 mm; l2: 2,9 mm; l3: 10 mm; d1: 2,5 mm; d2: 4 mm; R: 1,25 mm; z: 2; MBN107-025-0125-1000X050-HP808
Order number: 31153737
In Stock -
OptiMill®-3D-BN-Hardened
l1: 60 mm; l2: 2,9 mm; l3: 20 mm; d1: 2,5 mm; d2: 6 mm; R: 1,25 mm; z: 2; MBN107-025-0125-2000X060-HP808
Order number: 31153741
In Stock -
OptiMill®-3D-BN-Hardened
l1: 60 mm; l2: 2,9 mm; l3: 15 mm; d1: 2,5 mm; d2: 6 mm; R: 1,25 mm; z: 2; MBN107-025-0125-1500X060-HP808
Order number: 31153739
In Stock -
OptiMill®-3D-BN-Hardened
l1: 50 mm; l2: 2,9 mm; l3: 8 mm; d1: 2,5 mm; d2: 4 mm; R: 1,25 mm; z: 2; MBN107-025-0125-0800X050-HP808
Order number: 31153736
In Stock -
OptiMill®-3D-BN-Hardened
l1: 50 mm; l2: 2,9 mm; l3: 20 mm; d1: 2,5 mm; d2: 4 mm; R: 1,25 mm; z: 2; MBN107-025-0125-2000X050-HP808
Order number: 31153740
In Stock -
OptiMill®-3D-BN-Hardened
l1: 75 mm; l2: 2,9 mm; l3: 25 mm; d1: 2,5 mm; d2: 6 mm; R: 1,25 mm; z: 2; MBN107-025-0125-2500X075-HP808
Order number: 31153743
In Stock -
OptiMill®-3D-BN-Hardened
l1: 50 mm; l2: 2,9 mm; l3: 15 mm; d1: 2,5 mm; d2: 4 mm; R: 1,25 mm; z: 2; MBN107-025-0125-1500X050-HP808
Order number: 31153738
In Stock -

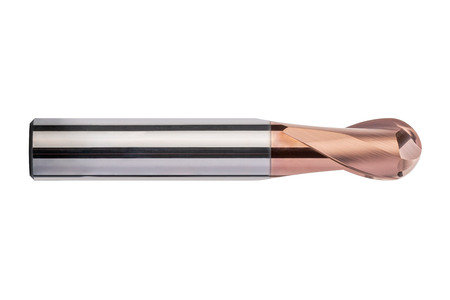

OptiMill®-3D-BN-Hardened
l1: 75 mm; l2: 9,2 mm; d1: 8 mm; d2: 8 mm; R: 4 mm; z:2; MBN106-080-0400-X075-HP808
Order number: 31354867
In Stock -
OptiMill®-3D-BN-Hardened
l1: 100 mm; l2: 9,2mm; d1: 8 mm; d2: 8 mm; R: 4 mm; z: 2; MBN106-080-0400-X100-HP808
Order number: 31153647
In Stock -
OptiMill®-3D-BN-Hardened
l1: 64 mm; l2: 9,2mm; l3: 25 mm; d1: 8 mm; d2: 8 mm; R: 4 mm; z: 2; MBN107-080-0400-2500X064-HP808
Order number: 31153764
In Stock -
OptiMill®-3D-BN-Hardened
l1: 100 mm; l2: 9,2mm; l3: 50 mm; d1: 8 mm; d2: 8 mm; R: 4 mm; z: 2; MBN107-080-0400-5000X100-HP808
Order number: 31153765
In Stock -

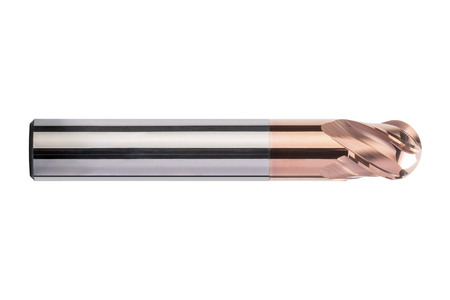

OptiMill®-3D-BN-Hardened
l1: 64 mm; l2: 9,2mm; d1: 8 mm; d2: 8 mm; R: 4 mm; z: 4; MBN108-080-0400-X064-HP808
Order number: 31153774
In Stock -
OptiMill®-3D-BN-Hardened
l1: 100 mm; l2: 9,2mm; d1: 8 mm; d2: 8 mm; R: 4 mm; z: 4; MBN108-080-0400-X100-HP808
Order number: 31153775
In Stock -

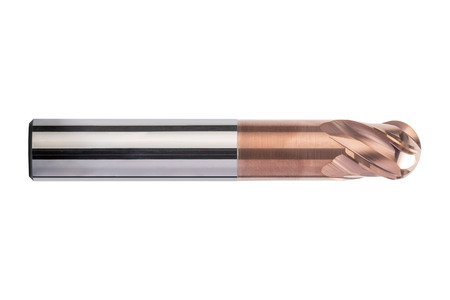

OptiMill®-3D-BN-Hardened
l1: 64 mm; l2: 9,2mm; l3: 25 mm; d1: 8 mm; d2: 8 mm; R: 4 mm; z: 4; MBN109-080-0400-2500X064-HP808
Order number: 31153800
In Stock -
OptiMill®-3D-BN-Hardened
l1: 100 mm; l2: 9,2mm; l3: 50 mm; d1: 8 mm; d2: 8 mm; R: 4 mm; z: 4; MBN109-080-0400-5000X100-HP808
Order number: 31153801
In Stock
