OptiMill®-3D-BN-Hardened
Diameter d1 (mm)
8.0
Your unit price
*Login requiredWe recommend:
Product description

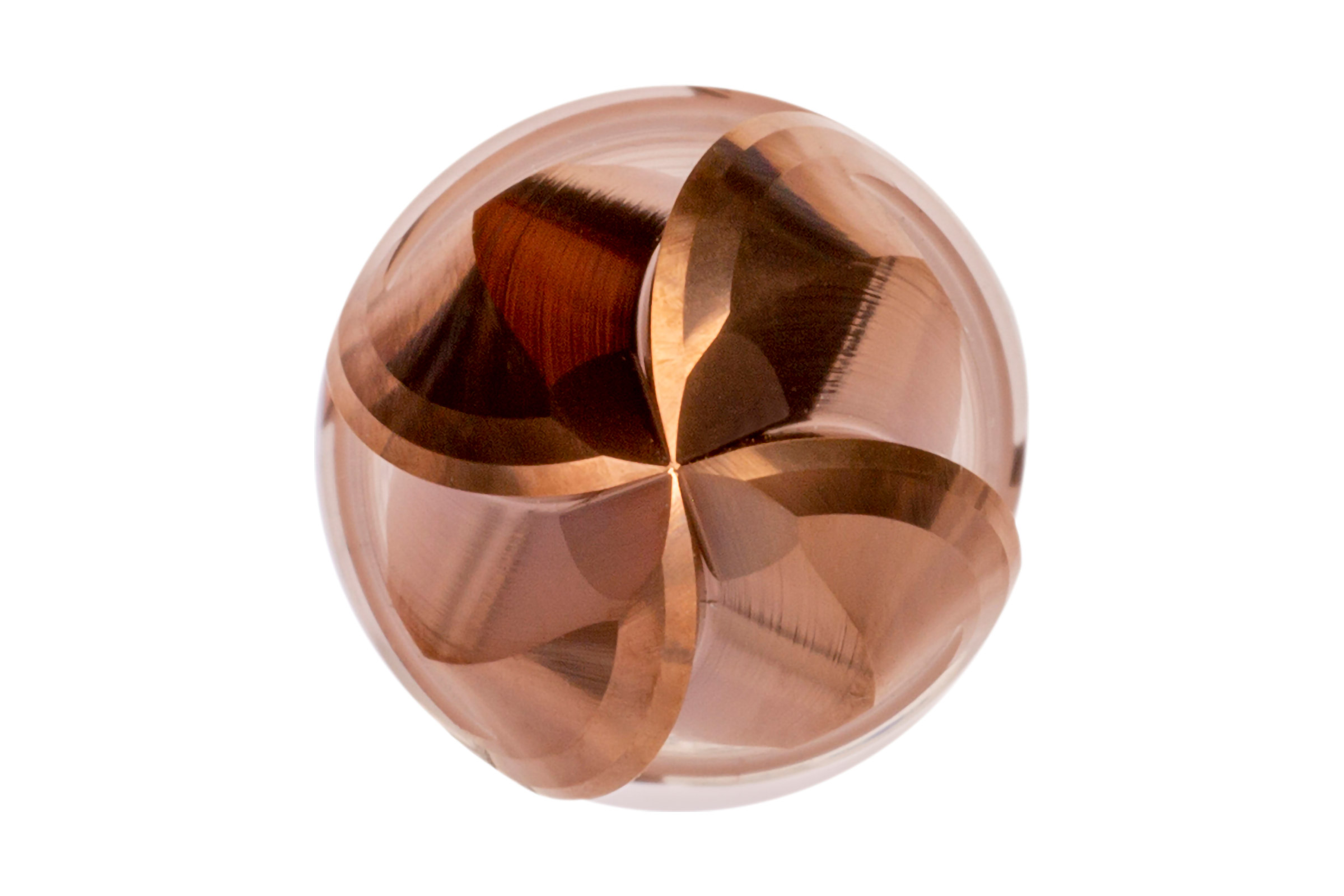

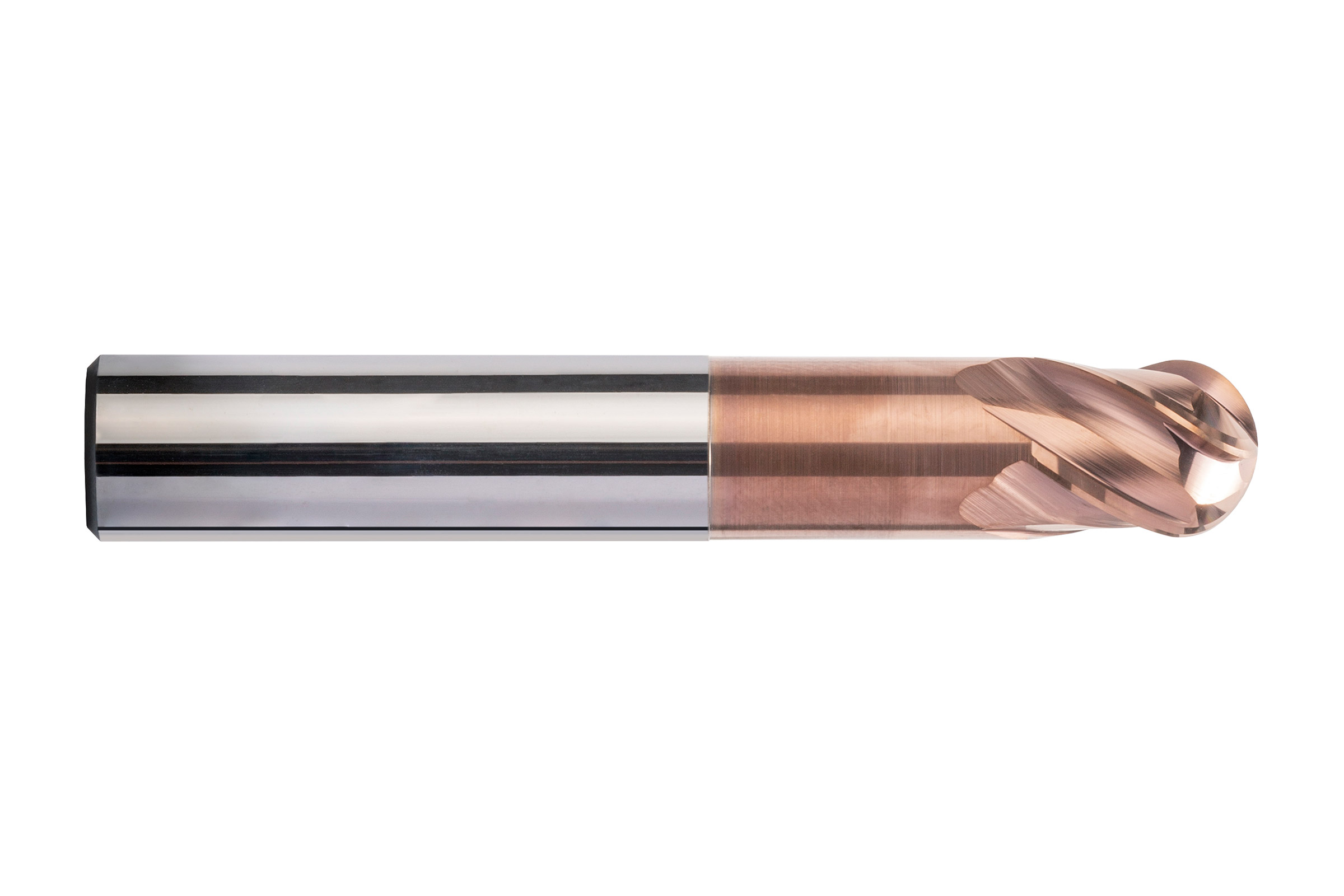

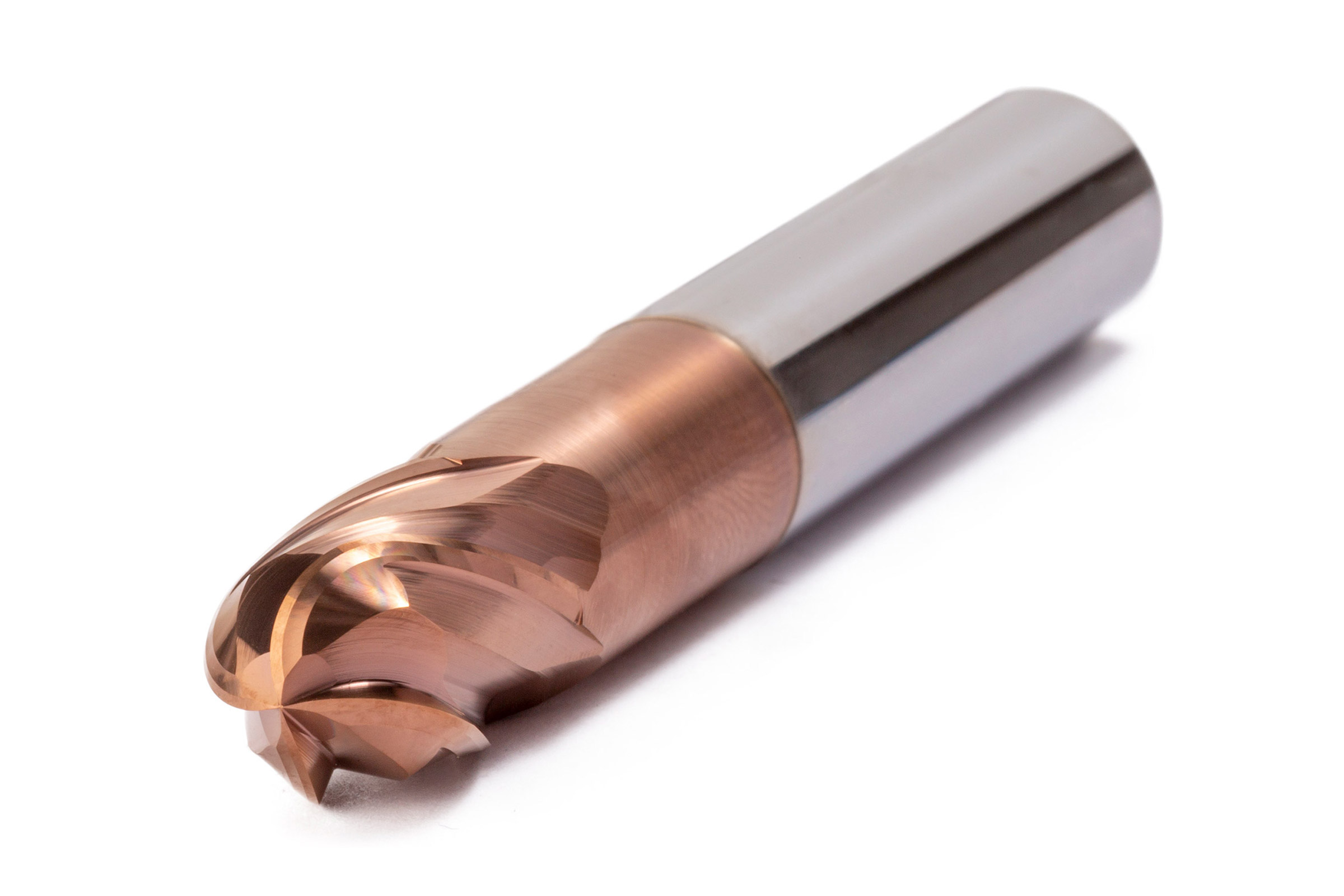

The OptiMill-3D-BN-Hardened ball end mill cutter has been specifically designed for machining materials up to 68 HRC. It is characterized by high radius accuracy, making it ideal for high-precision machining of 3D contours. In addition to an extremely heat-resistant coating and a special carbide substrate, these tools are distinguished by dimensions and geometries tailored specifically to mold making.
Technical specifications
- Product class
- Performance-Line

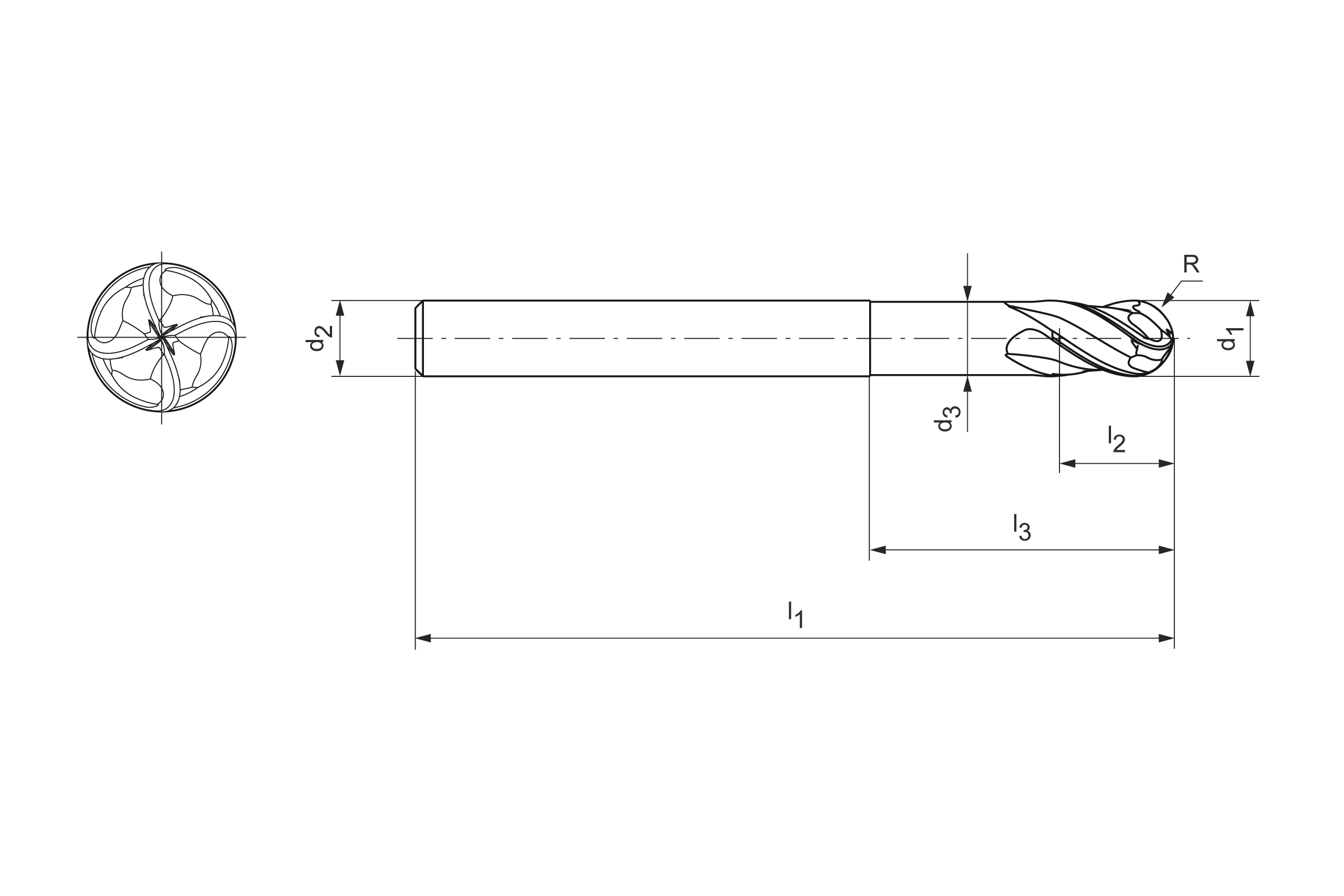

- Diameter (d1)
- 8 mm
- Shaft diameter (d2)
- 8 mm
- Cylindrical part diameter (d3)
- 7.8 mm
- Total length (l1)
- 64 mm
- Length of cutting edge (l2)
- 9.2 mm
- Neck length (l3)
- 25 mm
- Corner radius (R)
- 4 mm
- Number of cutting edges (z)
- 4
- Cooling
- external cooling
- Shank type
- HA
- Material group
- RC
Downloads
- 3D envelope in stp
- 31153800_607642172-000-00-E43.STP
- Technical drawing in dxf
- 31153800_607408771-000-01-ED1-MM.DXF
- Technical drawing in pdf
- 31153800_607408771-000-01-ED1-MM.PDF
- Technical drawing in tif
- 31153800_607408771-000-01-ED1-MM.TIF
- Cutting data recommendations
- 31153800_OptiMill®-3D-BN-Hardened_EN.pdf
