OptiMill®-3D-BN-Hardened

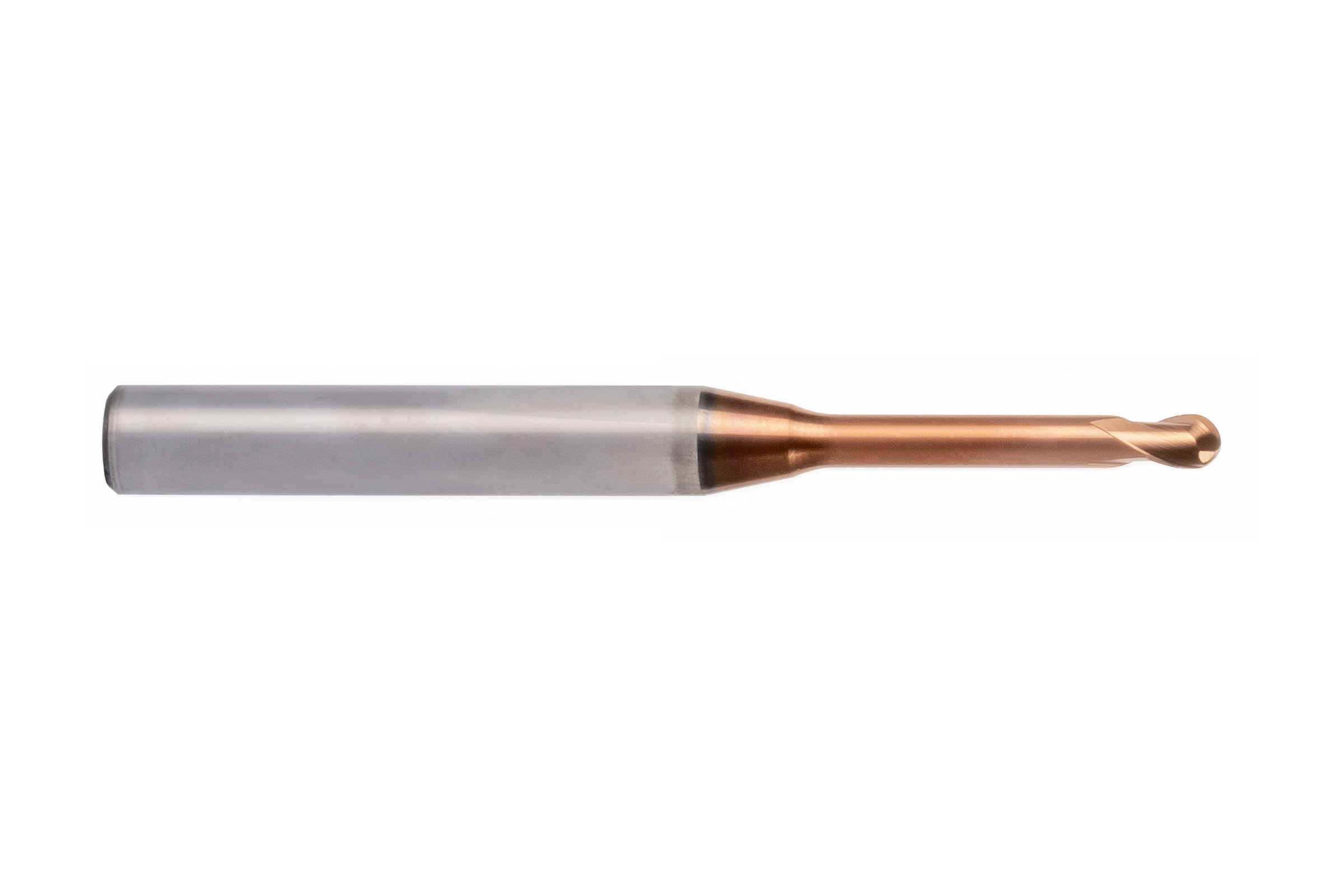

  • Product image OptiMill®-3D-BN-Hardened

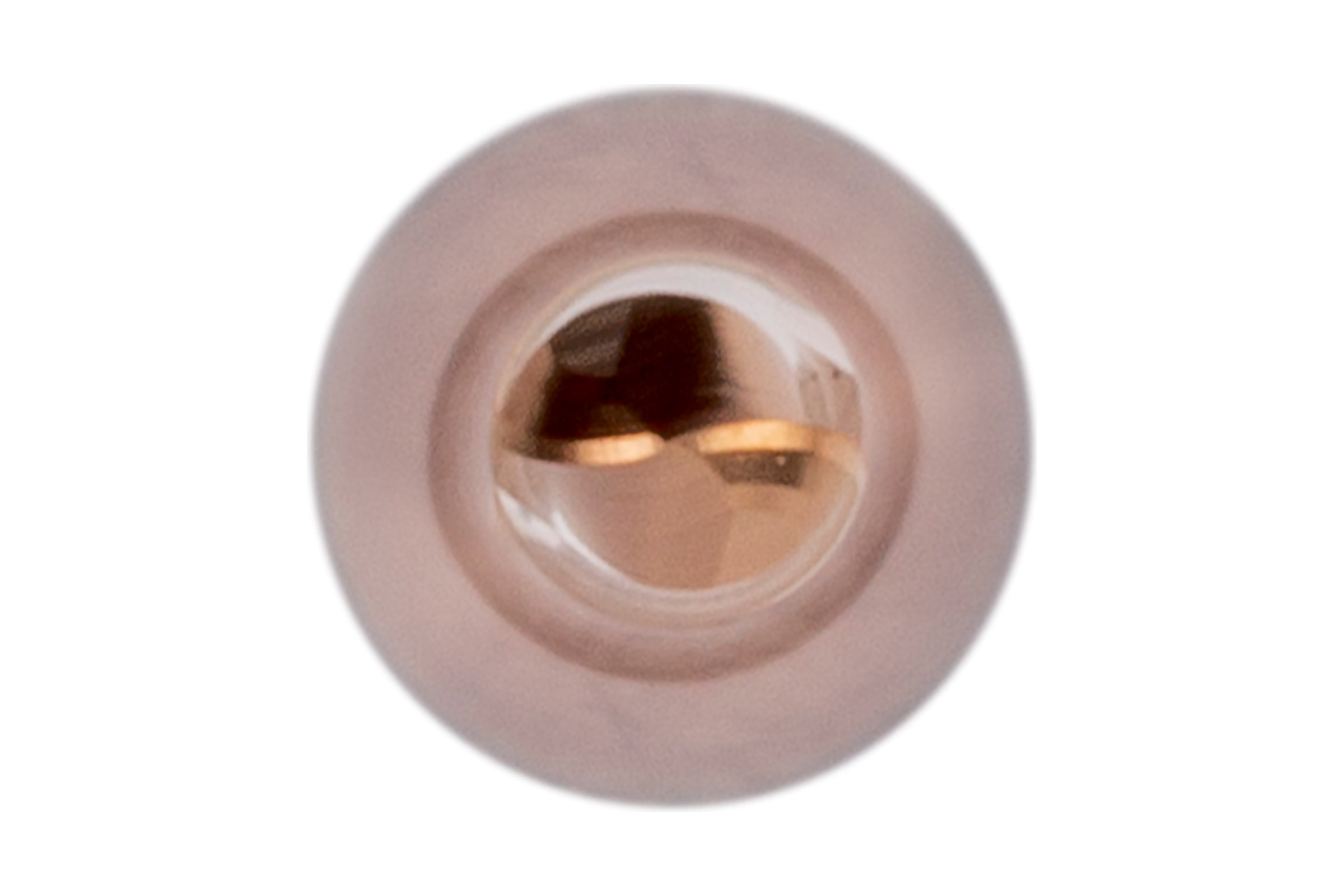

  • Product image OptiMill®-3D-BN-Hardened

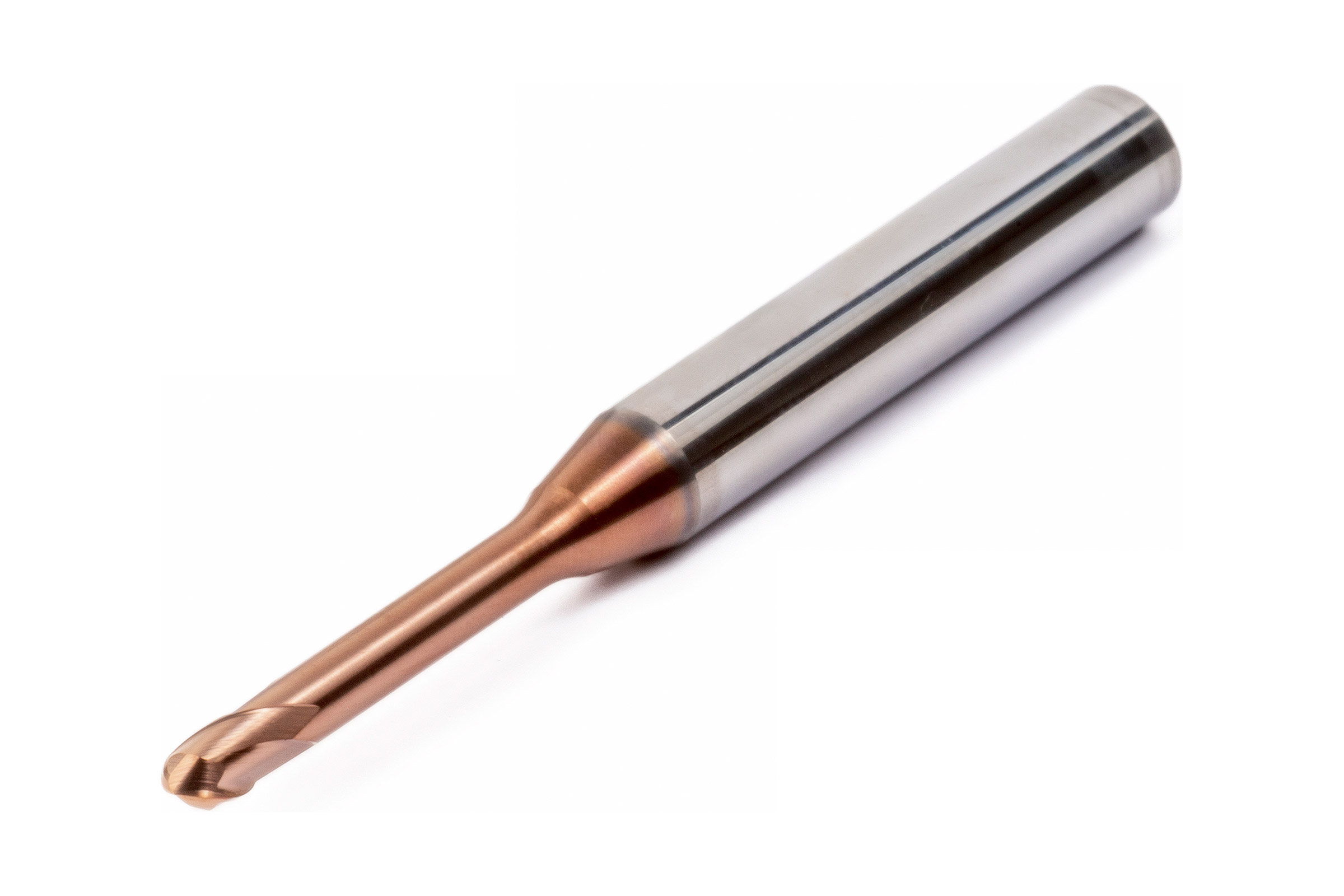

  • Product image OptiMill®-3D-BN-Hardened

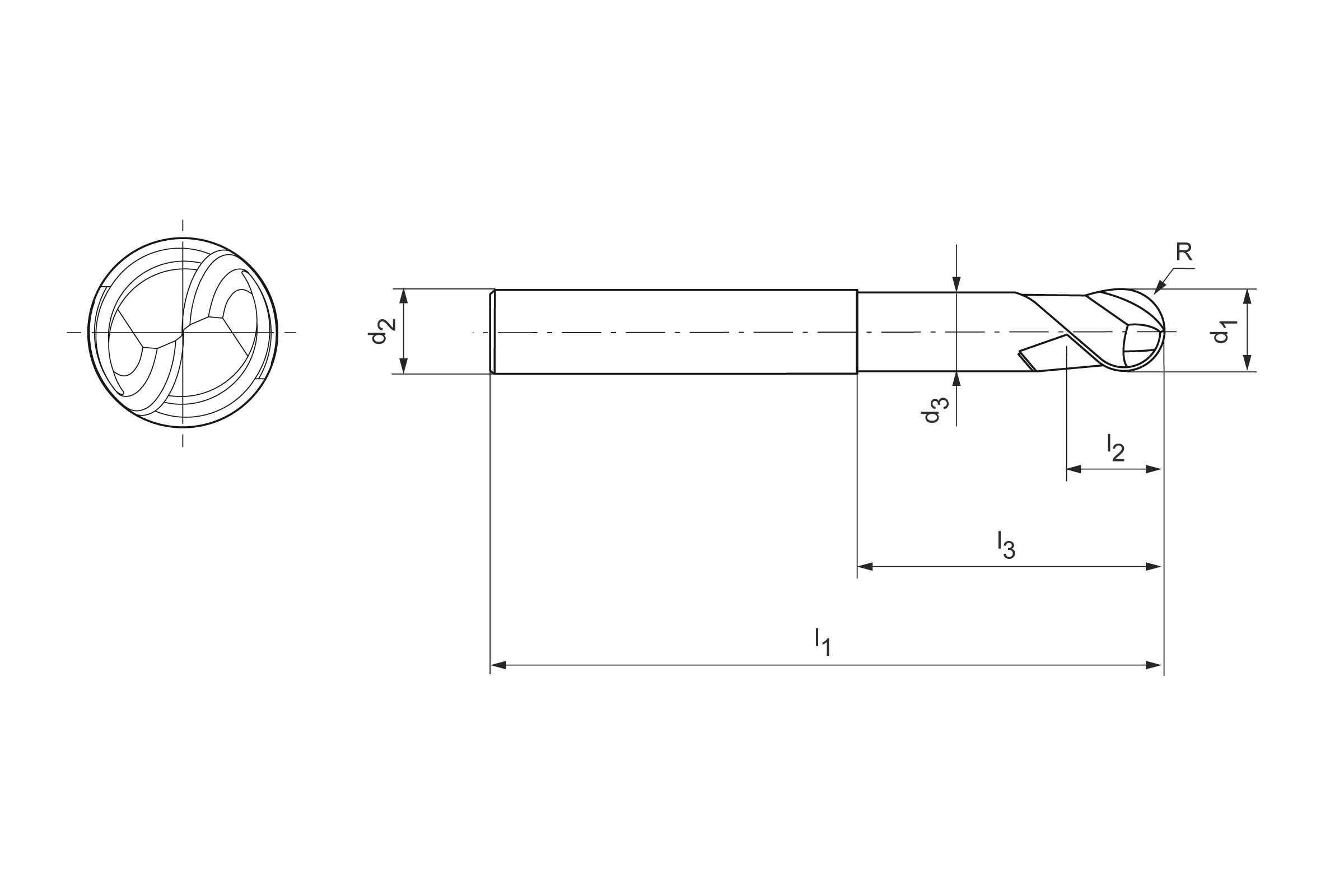

  • Technical drawing OptiMill®-3D-BN-Hardened

Diameter d1 (mm)

8.0

Your unit price

*Login required

Article

31153764

Quantity

Added to Your Shopping Cart

Unsere Produktempfehlung:

Product description

The OptiMill®-3D-BN-Hardened ball nose mill cutter has been specifically designed for machining materials up to 68 HRC. It is characterized by high radius accuracy, making it ideal for high-precision machining of 3D contours. In addition to an extremely heat-resistant coating and a special carbide substrate, these tools are distinguished by dimensions and geometries tailored specifically to mold making.

Material suitability

Technical specifications

Produktklasse
Performance-Line
Schneidendurchmesser (d1)
8   mm
Schaftdurchmesser (d2)
8   mm
Durchmesser zylindrischer Anteil (d3)
7.8   mm
Gesamtlänge (l1)
64   mm
Schneidenlänge (l2)
9.2   mm
Halslänge (l3)
25   mm
Eckenradius (R)
4   mm
Anzahl Schneiden (z)
2
Kühlmittelzufuhr
äußere Kühlmittelzufuhr
Schaft Typ
HA
Schneidstoff
HP808
Materialgruppe
RC
Spezifikation
MBN107-080-0400-2500X064-HP808

Downloads

3D Hüllkontur in stp
31153764_607644411-000-00-E43.STP
Technische Zeichnung in dxf
31153764_607410371-000-01-ED1-MM.DXF
Technische Zeichnung in pdf
31153764_607410371-000-01-ED1-MM.PDF
Technische Zeichnung in tif
31153764_607410371-000-01-ED1-MM.TIF
Cutting data recommendations
31153764_OptiMill-3D-BN-Hardened_EN.pdf
