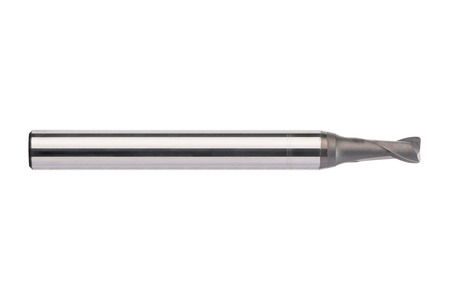

OptiMill®-3D-CR-Graphite
The OptiMill®-3D-CR-Graphite corner radius milling cutter was specially developed for machining graphite electrodes. It is characterised by a special geometry and diamond coating which prevents chipping and thus damage to the sensitive profiles even after longer milling.
Selected facets:
Remove all filters-
Milling type
-
Product Family
-
Material charateristics
-
Diameter (d1)
-
-
Total length (l1)
-
-
Flute length (l2)
-
-
Neck length (l3)
-
-
Shank type
-
Cooling
-
Product category
(27)-
OptiMill®-3D-CR-Graphite
l1: 50 mm; l2: 1,5 mm; l3:15mm; d1: 1 mm; d2:4 mm; R: 0,2 mm; z: 2; MCR111-010-0020-1500X050-HC116
Order number: 31152913
In Stock -
OptiMill®-3D-CR-Graphite
l1: 50 mm; l2: 1,5 mm; l3:10mm; d1: 1 mm; d2:4 mm; R: 0,2 mm; z: 2; MCR111-010-0020-1000X050-HC116
Order number: 31152912
In Stock -
OptiMill®-3D-CR-Graphite
l1: 75 mm; l2: 1,5 mm; l3:20mm; d1: 1 mm; d2:4 mm; R: 0,2 mm; z: 2; MCR111-010-0020-2000X075-HC116
Order number: 31152914
In Stock -
OptiMill®-3D-CR-Graphite
l1: 50 mm; l2: 2,3 mm; l3:15mm; d1: 1,5 mm; d2:4 mm; R: 0,2 mm; z: 2; MCR111-015-0020-1500X050-HC116
Order number: 31152922
In Stock -
OptiMill®-3D-CR-Graphite
l1: 50 mm; l2: 2,3 mm; l3:10mm; d1: 1,5 mm; d2:4 mm; R: 0,2 mm; z: 2; MCR111-015-0020-1000X050-HC116
Order number: 31152921
In Stock -
OptiMill®-3D-CR-Graphite
l1: 75 mm; l2: 2,3 mm; l3:20mm; d1: 1,5 mm; d2:4 mm; R: 0,2 mm; z: 2; MCR111-015-0020-2000X075-HC116
Order number: 31152923
In Stock -
OptiMill®-3D-CR-Graphite
l1: 50 mm; l2: 1,9 mm; l3:10mm; d1: 2 mm; d2:4 mm; R: 0,2 mm; z: 2; MCR112-020-0020-1000X050-HC116
Order number: 31180368
In Stock -
OptiMill®-3D-CR-Graphite
l1: 75 mm; l2: 3 mm; l3:25mm; d1: 2 mm; d2:4 mm; R: 0,2 mm; z: 2; MCR111-020-0020-2500X075-HC116
Order number: 31152929
In Stock -
OptiMill®-3D-CR-Graphite
l1: 75 mm; l2: 1,9 mm; l3:25mm; d1: 2 mm; d2:4 mm; R: 0,2 mm; z: 2; MCR112-020-0020-2500X075-HC116
Order number: 31180381
In Stock -
OptiMill®-3D-CR-Graphite
l1: 75 mm; l2: 1,9 mm; l3:20mm; d1: 2 mm; d2:4 mm; R: 0,2 mm; z: 2; MCR112-020-0020-2000X075-HC116
Order number: 31180380
In Stock -
OptiMill®-3D-CR-Graphite
l1: 50 mm; l2: 3 mm; l3:5mm; d1: 2 mm; d2:4 mm; R: 0,2 mm; z: 2; MCR111-020-0020-0500X050-HC116
Order number: 31152924
In Stock -
OptiMill®-3D-CR-Graphite
l1: 50 mm; l2: 3 mm; l3:10mm; d1: 2 mm; d2:4 mm; R: 0,2 mm; z: 2; MCR111-020-0020-1000X050-HC116
Order number: 31152925
In Stock -
OptiMill®-3D-CR-Graphite
l1: 50 mm; l2: 3 mm; l3:15mm; d1: 2 mm; d2:4 mm; R: 0,2 mm; z: 2; MCR111-020-0020-1500X050-HC116
Order number: 31152926
In Stock -
OptiMill®-3D-CR-Graphite
l1: 75 mm; l2: 3 mm; l3:20mm; d1: 2 mm; d2:4 mm; R: 0,2 mm; z: 2; MCR111-020-0020-2000X075-HC116
Order number: 31152927
In Stock -
OptiMill®-3D-CR-Graphite
l1: 75 mm; l2: 3 mm; l3:30mm; d1: 2 mm; d2:4 mm; R: 0,2 mm; z: 2; MCR111-020-0020-3000X075-HC116
Order number: 31152930
In Stock
