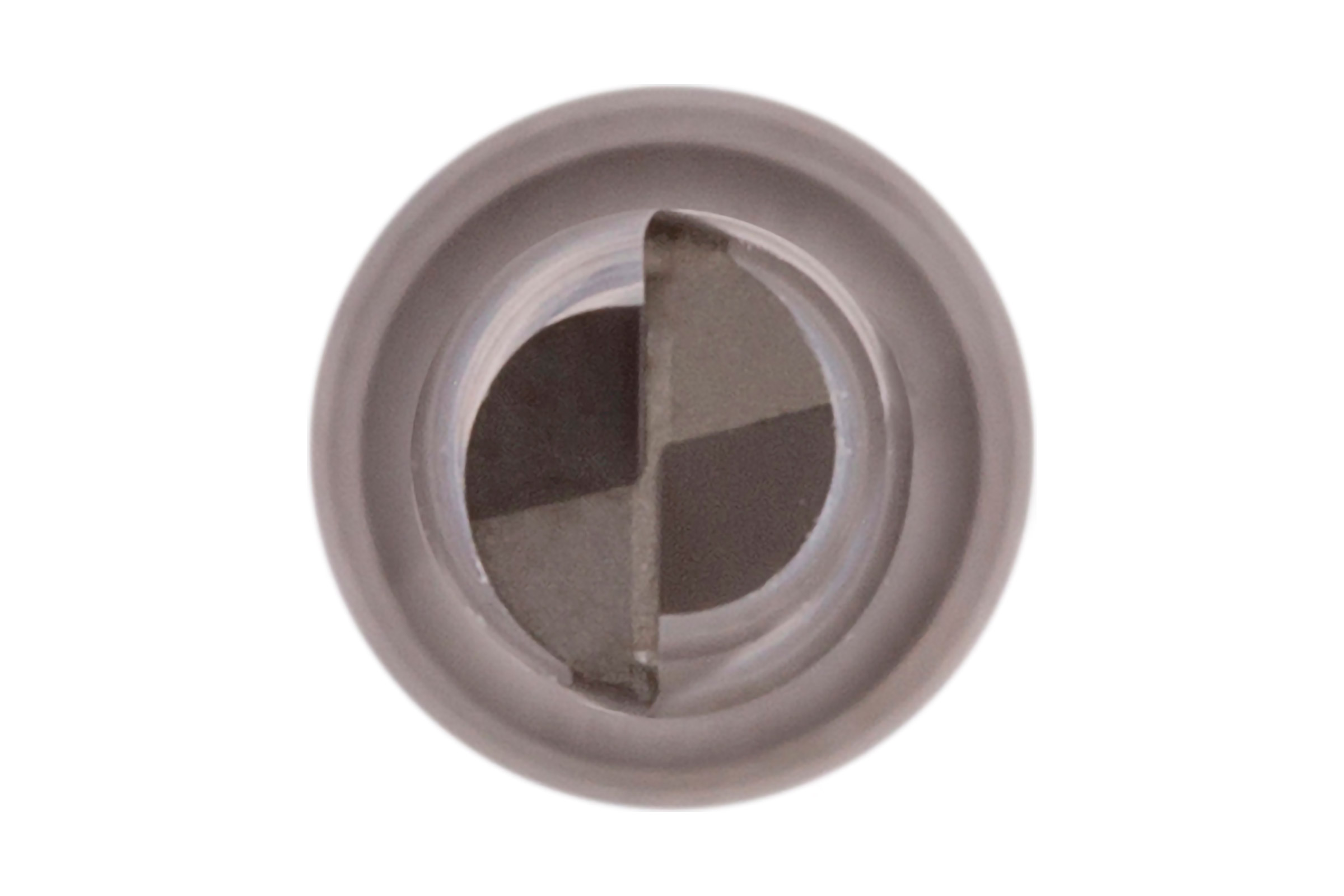

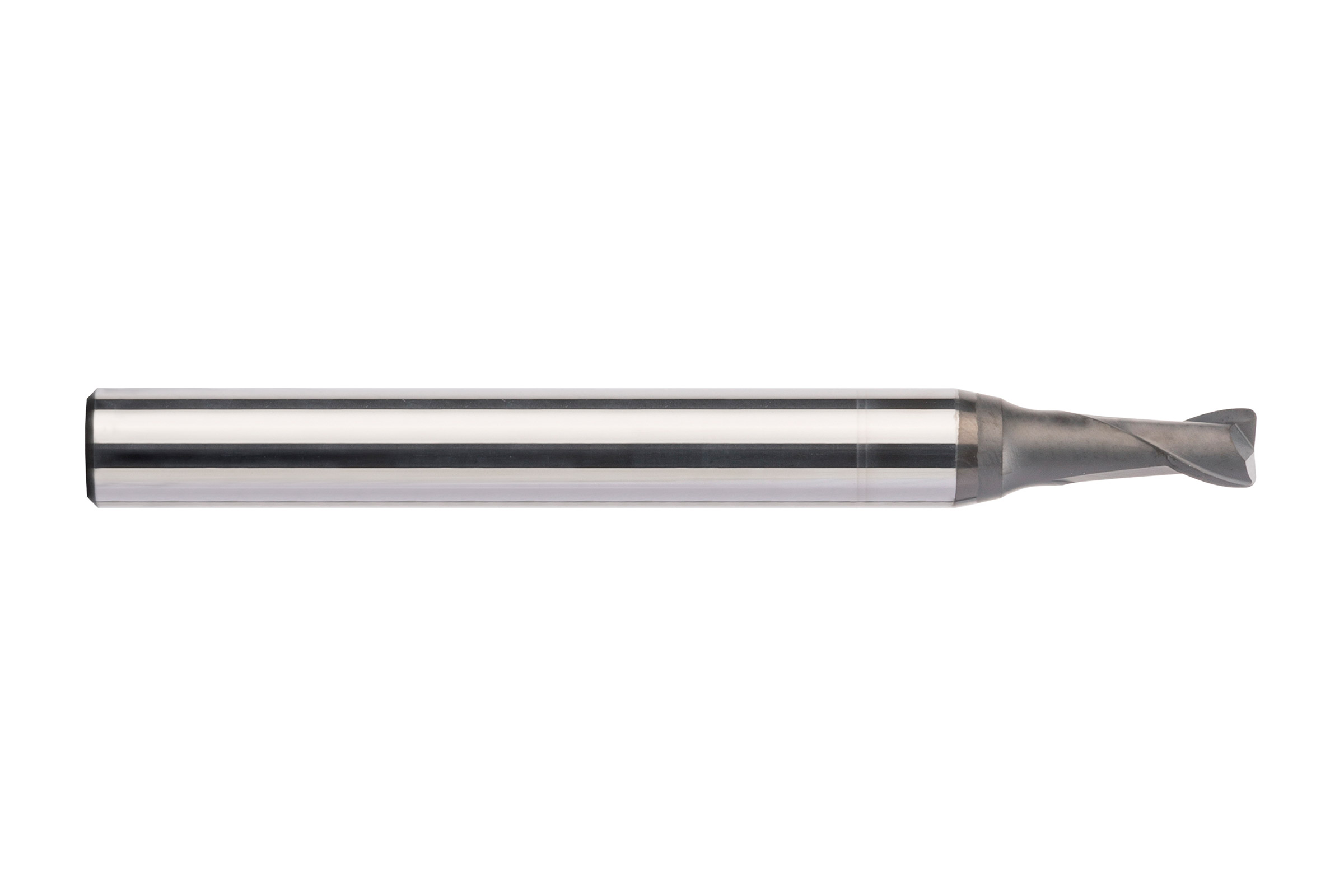

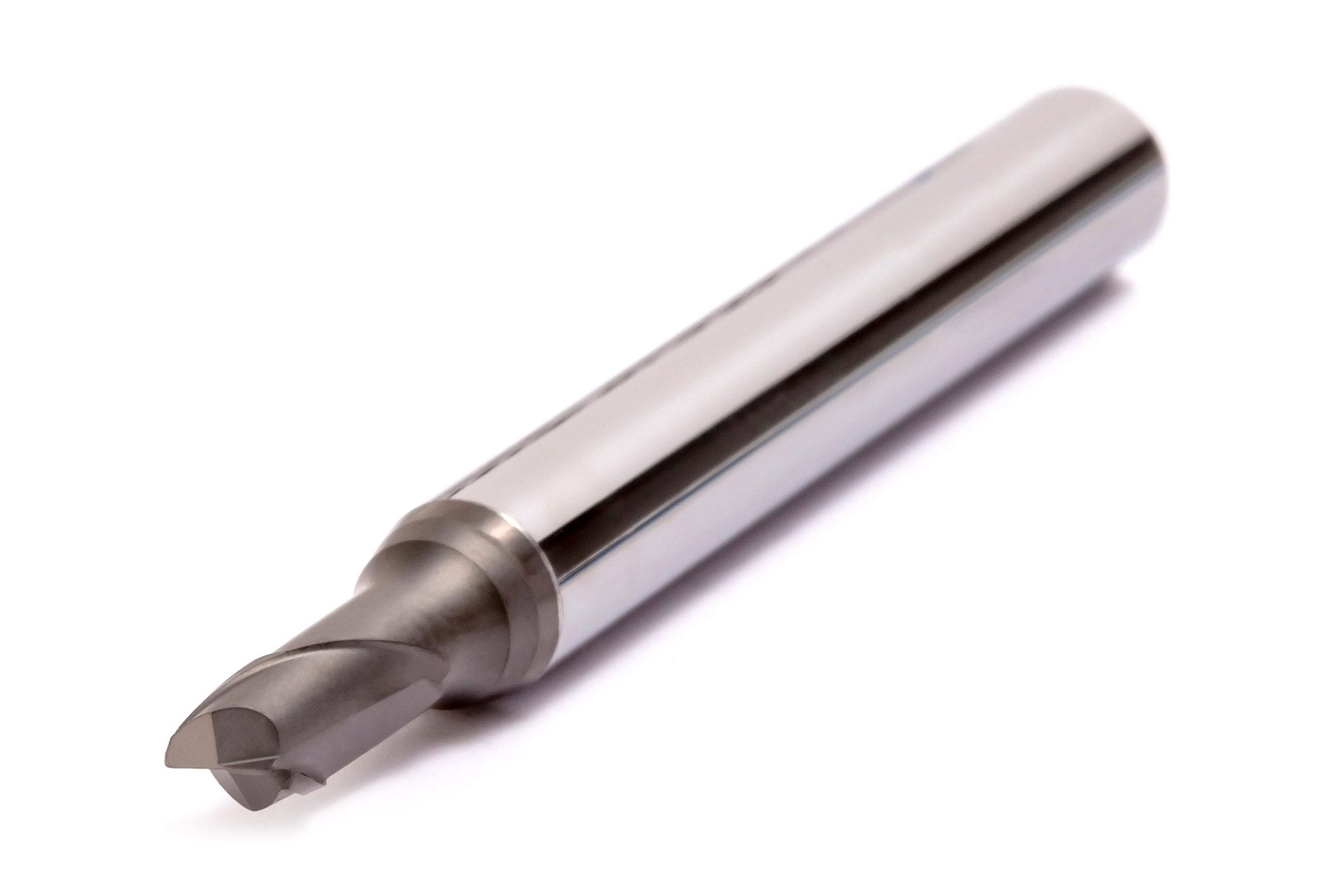

OptiMill®-3D-CR-Graphite
Diameter d1 (mm)
1.5
Your unit price
*Login requiredWe recommend:
Product description
The OptiMill®-3D-CR-Graphite corner radius milling cutter was specially developed for machining graphite electrodes. It is characterised by a special geometry and diamond coating which prevents chipping and thus damage to the sensitive profiles even after longer milling.
Technical specifications
- Product class
- Expert-Line
- Diameter (d1)
- 1.5 mm
- Shaft diameter (d2)
- 4 mm
- Total length (l1)
- 50 mm
- Length of cutting edge (l2)
- 2.3 mm
- Neck length (l3)
- 15 mm
- Corner radius (R)
- 0.2 mm
- Number of cutting edges (z)
- 2
- Cooling
- external cooling
- Shank type
- HA
- Material group
- RC
Downloads

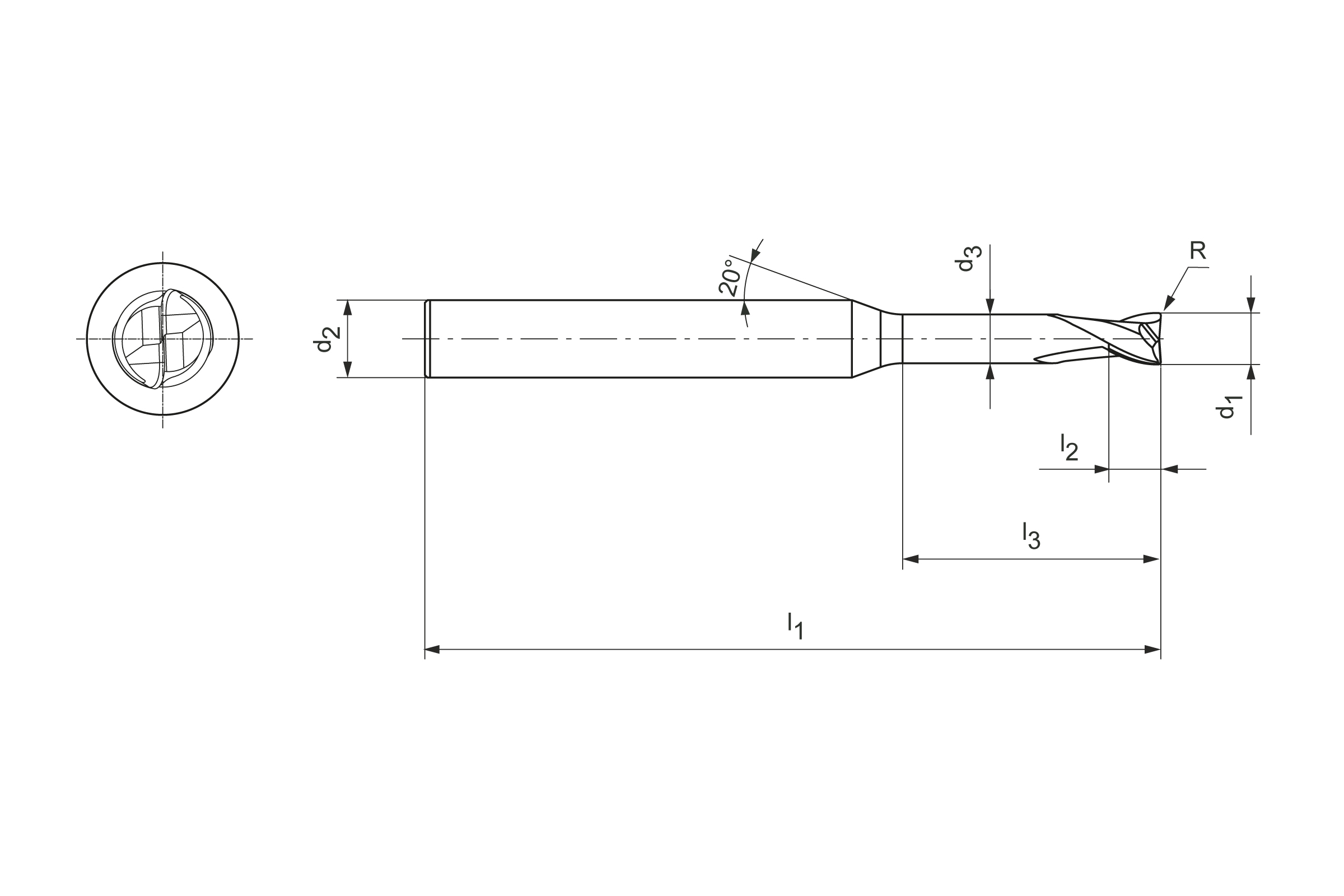

- Technical drawing in dxf
- 31152922_607906483-000-00-ED1-MM.DXF
- Technical drawing in pdf
- 31152922_607906483-000-00-ED1-MM.PDF
- Technical drawing in tif
- 31152922_607906483-000-00-ED1-MM.TIF
- 3D envelope in stp
- 31152922_607906484-000-00-E43.STP
