Tritan-Drill-Uni-Plus

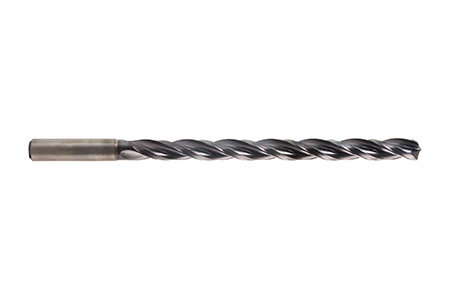

MAPAL has developed the Tritan-Drill-Uni-Plus specifically for high-speed machining of steel, stainless steel, cast iron, and aluminum. This three-edged solid carbide drill features an optimized groove profile. Thanks to its innovative coating and finely ground chip flutes, the Tritan-Drill-Uni-Plus offers higher wear resistance and ensures optimal chip removal with short chips even at the highest feed rates.
Selected facets:
- 14.0 Shank diameter (d2)
- Tritan-Drill-Uni-Plus Product Family
- 18.0 Shank diameter (d2)
- MEGA-180°-Drill Product Family
- Tritan-Drill-Uni-Plus family
-
Product Family
-
Diameter (d1)
-
-
Number of cutting edges (z)
-
Cooling
-
Tip angle
-
Product category
-
Bore tolerance
(18)
(18)
(18)
(18)-
Tritan-Drill-Uni-Plus
d1: 12,5 mm; d2: 14 mm; l1: 230 mm; l2: 182 mm; l3: 166 mm; z: 3; internal cooling; SCD631-1250-3-3-135HA12-HP358
Order number: 31035439
In Stock -
Tritan-Drill-Uni-Plus
d1: 12,5 mm; d2: 14 mm; l1: 124 mm; l2: 77 mm; l3: 60 mm; z: 3; internal cooling; SCD631-1250-3-3-140HA05-HP358
Order number: 31037364
In Stock -
Tritan-Drill-Uni-Plus
d1: 12,5 mm; d2: 14 mm; l1: 178 mm; l2: 133 mm; l3: 112 mm; z: 3; internal cooling; SCD631-1250-3-3-135HA08-HP358
Order number: 31037477
In Stock -
Tritan-Drill-Uni-Plus
d1: 13 mm; d2: 14 mm; l1: 230 mm; l2: 182 mm; l3: 166 mm; z: 3; internal cooling; SCD631-1300-3-3-135HA12-HP358
Order number: 31035441
In Stock -
Tritan-Drill-Uni-Plus
d1: 13 mm; d2: 14 mm; l1: 124 mm; l2: 77 mm; l3: 60 mm; z: 3; internal cooling; SCD631-1300-3-3-140HA05-HP358
Order number: 31037366
In Stock -
Tritan-Drill-Uni-Plus
d1: 13 mm; d2: 14 mm; l1: 178 mm; l2: 133 mm; l3: 112 mm; z: 3; internal cooling; SCD631-1300-3-3-135HA08-HP358
Order number: 31037479
In Stock -
Tritan-Drill-Uni-Plus
d1: 13,5 mm; d2: 14 mm; l1: 230 mm; l2: 182 mm; l3: 166 mm; z: 3; internal cooling; SCD631-1350-3-3-135HA12-HP358
Order number: 31035443
In Stock -
Tritan-Drill-Uni-Plus
d1: 13,5 mm; d2: 14 mm; l1: 124 mm; l2: 77 mm; l3: 60 mm; z: 3; internal cooling; SCD631-1350-3-3-140HA05-HP358
Order number: 31037368
In Stock -
Tritan-Drill-Uni-Plus
d1: 13,5 mm; d2: 14 mm; l1: 178 mm; l2: 133 mm; l3: 112 mm; z: 3; internal cooling; SCD631-1350-3-3-135HA08-HP358
Order number: 31037481
In Stock -
Tritan-Drill-Uni-Plus
d1: 13,8 mm; d2: 14 mm; l1: 230 mm; l2: 182 mm; l3: 166 mm; z: 3; internal cooling; SCD631-1380-3-3-135HA12-HP358
Order number: 31035444
In Stock -
Tritan-Drill-Uni-Plus
d1: 14 mm; d2: 14 mm; l1: 230 mm; l2: 182 mm; l3: 166 mm; z: 3; internal cooling; SCD631-1400-3-3-135HA12-HP358
Order number: 31035445
In Stock -
Tritan-Drill-Uni-Plus
d1: 14 mm; d2: 14 mm; l1: 124 mm; l2: 77 mm; l3: 60 mm; z: 3; internal cooling; SCD631-1400-3-3-140HA05-HP358
Order number: 31037370
In Stock -
Tritan-Drill-Uni-Plus
d1: 17 mm; d2: 18 mm; l1: 143 mm; l2: 93 mm; l3: 71 mm; z: 3; internal cooling; SCD631-1700-3-3-140HA05-HP358
Order number: 31037382
In Stock -
Tritan-Drill-Uni-Plus
d1: 17 mm; d2: 18 mm; l1: 222 mm; l2: 171 mm; l3: 144 mm; z: 3; internal cooling; SCD631-1700-3-3-135HA08-HP358
Order number: 31037495
In Stock -
Tritan-Drill-Uni-Plus
d1: 17,5 mm; d2: 18 mm; l1: 143 mm; l2: 93 mm; l3: 71 mm; z: 3; internal cooling; SCD631-1750-3-3-140HA05-HP358
Order number: 31037384
In Stock
