Tritan-Drill-Uni-Plus

Durchmesser d1 (mm)

17.5

Ihr Stückpreis

*Login erforderlich

Bestellnummer

31037384

Menge

Ihrem Warenkorb hinzugefügt

Produktbeschreibung

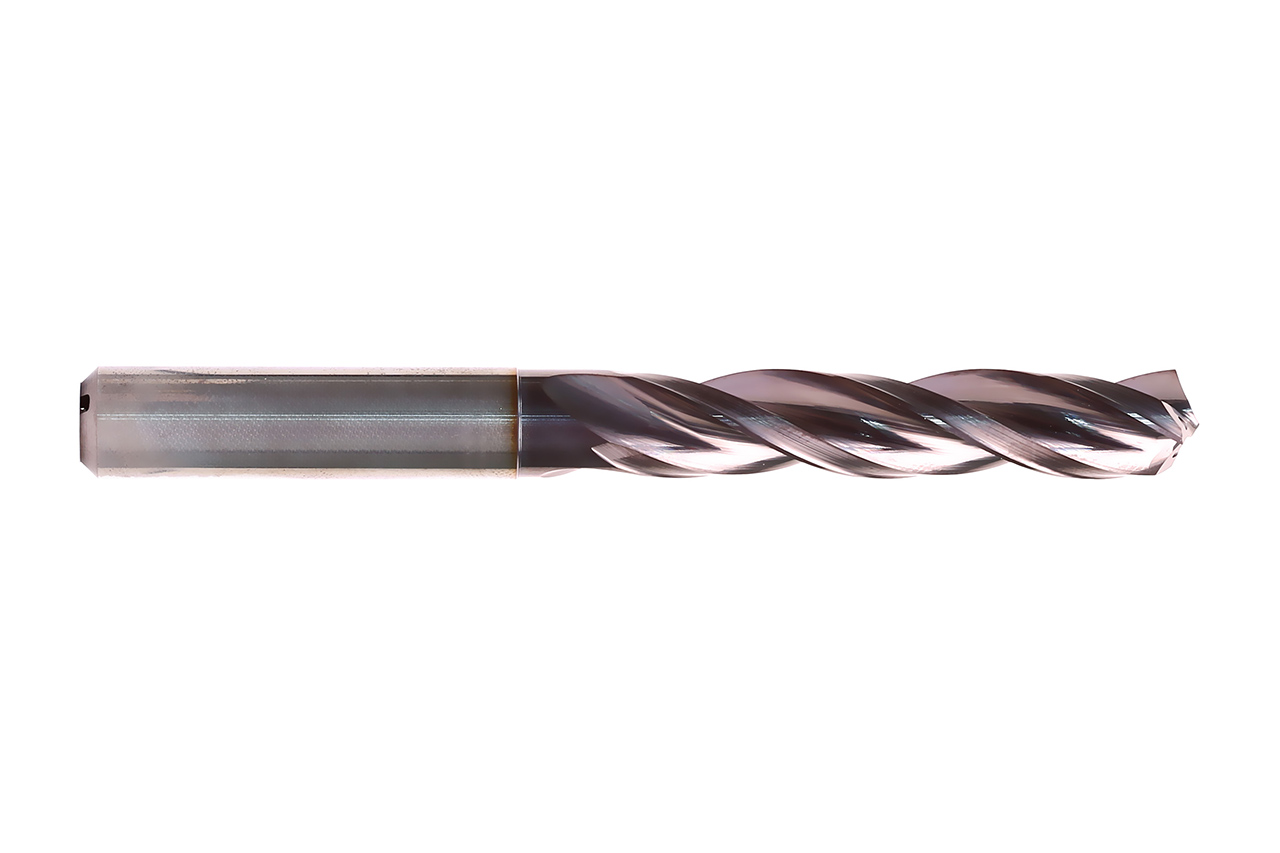

MAPAL has developed the Tritan-Drill-Uni-Plus specifically for high-speed machining of steel, stainless steel, cast iron, and aluminum. This three-edged solid carbide drill features an optimized groove profile. Thanks to its innovative coating and finely ground chip flutes, the Tritan-Drill-Uni-Plus offers higher wear resistance and ensures optimal chip removal with short chips even at the highest feed rates.

Materialeignung

Technische Daten

Schneidstoff
HP358
Produktklasse
Expert-Line
Bohrtiefe
5xD

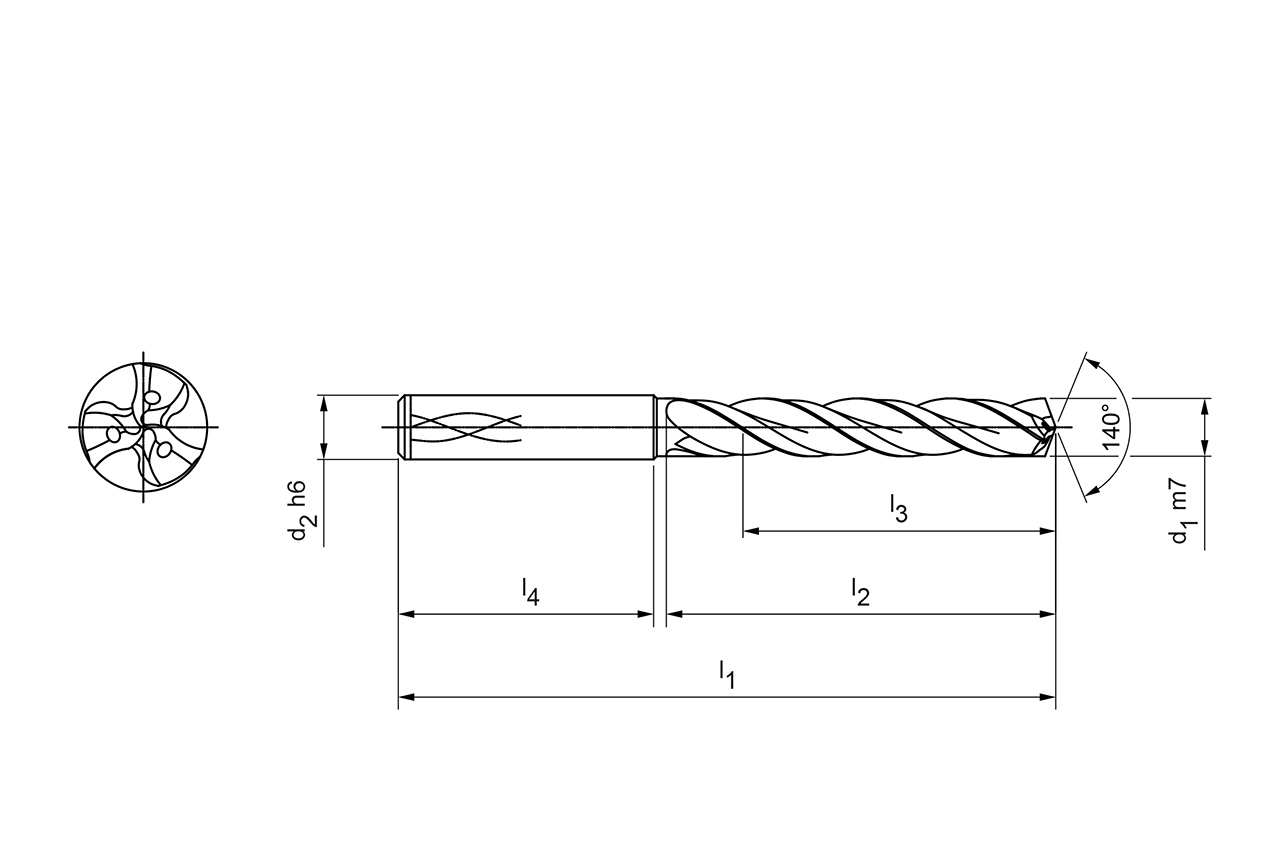

d1
17.5   mm
d2
18   mm
l1
143   mm
l2
93   mm
l3
71   mm
l4
48   mm
Kühlmittelaustritt
innere Kühlmittelzufuhr
Anzahl Schneiden (z)
3
Schafttoleranz
h6
Bohrungstoleranz
≥ IT 9
Schaftform
HA
Spitzenwinkel
140   °
Seitenspanwinkel
30   °
Materialgruppe
R8
Spezifikation
SCD631-1750-3-3-140HA05-HP358
