Tritan-Drill-Uni-Plus

Diameter d1 (mm)

13.0

Your unit price

*Login required

Article

31035441

Quantity

Added to Your Shopping Cart

Product description

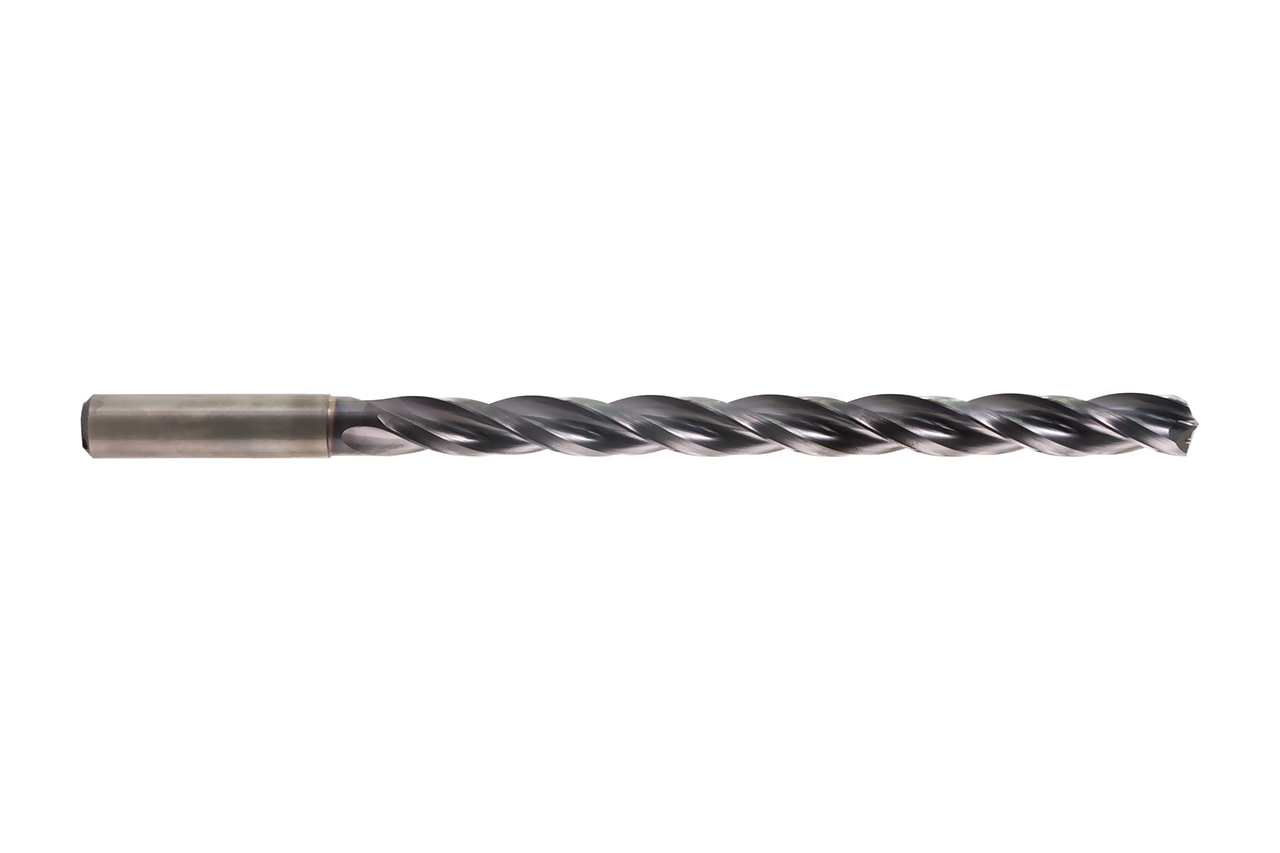

MAPAL has developed the Tritan-Drill-Uni-Plus specifically for high-speed machining of steel, stainless steel, cast iron, and aluminum. This three-edged solid carbide drill features an optimized groove profile. Thanks to its innovative coating and finely ground chip flutes, the Tritan-Drill-Uni-Plus offers higher wear resistance and ensures optimal chip removal with short chips even at the highest feed rates.

Material suitability

Technical specifications

Cutting material
HP358
Produktklasse
Expert-Line
Bohrtiefe
12xD
d1
13   mm
d2
14   mm
l1
230   mm
l2
182   mm
l3
166   mm
l4
45   mm
Kühlmittelaustritt
innere Kühlmittelzufuhr
Anzahl Schneiden (z)
3
Schafttoleranz
h6
Bohrungstoleranz
≥ IT 9
Schaftform
HA
Spitzenwinkel
135   °
Seitenspanwinkel
30   °
Materialgruppe
R8
Spezifikation
SCD631-1300-3-3-135HA12-HP358

Downloads

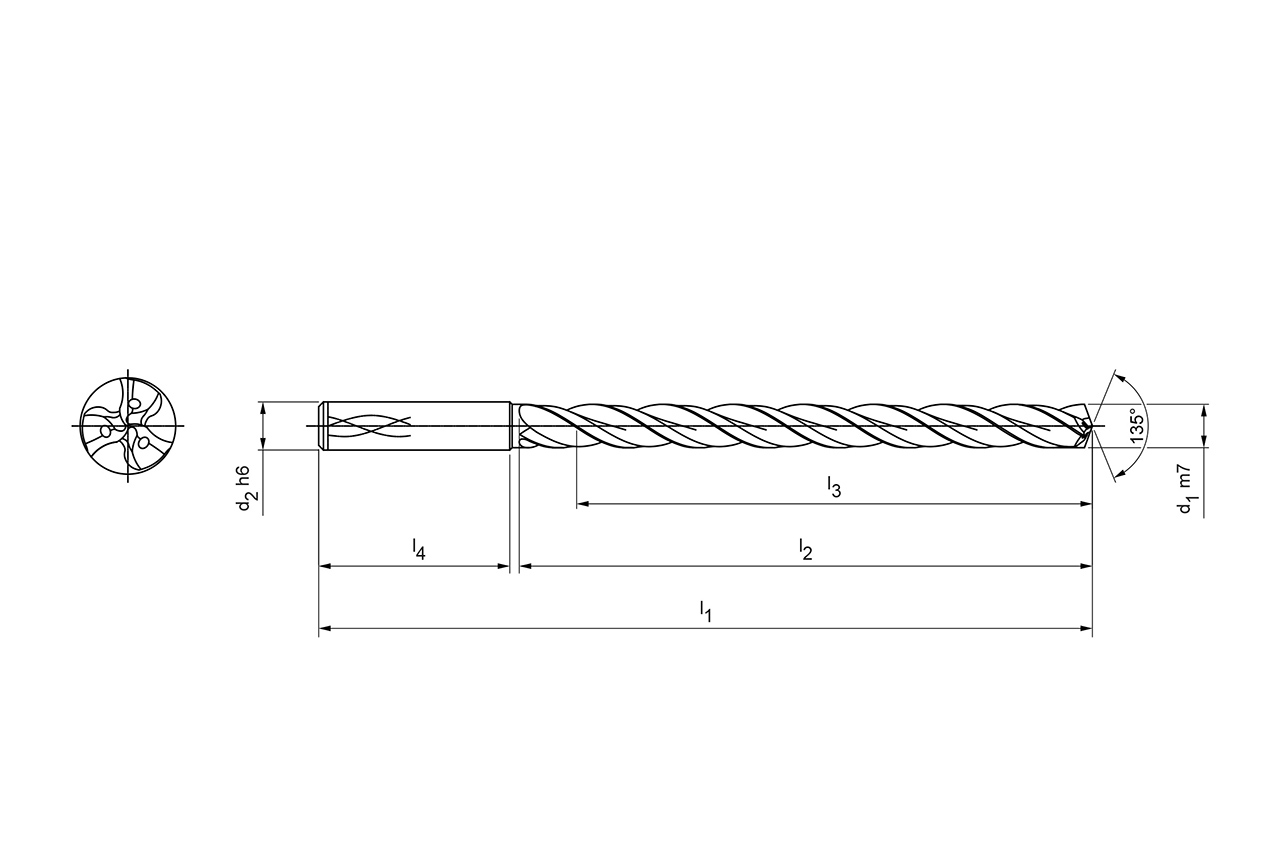

Technische Zeichnung in dxf
