Reducing sleeve for hydraulic chuck
The reduction sleeves for hydraulic expansion chucks enable the secure clamping of cylindrical shank tools. They precisely reduce the clamping diameter, ensuring maximum flexibility and process reliability during tool clamping. This allows tools of different diameters to be used efficiently and reliably.
Selected facets:
Remove all filters-
Product Family
-
Diameter (d1)
-
-
Coolant supply
-
Reducing sleeve for hydraulic chuck
d1: 12 mm; d2: 4 mm; l1: 40 mm; without length adjustment, coolant seal; Ø12XØ4X4
Order number: 30251060
In Stock -
Reducing sleeve for hydraulic chuck
d1: 12 mm; d2: 9 mm; l1: 40 mm; without length adjustment, coolant seal; Ø12XØ9X4
Order number: 30251065
In Stock -
Reducing sleeve for hydraulic chuck
d1: 12 mm; d2: 4 mm; l1: 40 mm; without length adjustment, with cooling channel bores; Ø12XØ4X4
Order number: 30557344
In Stock -
Reducing sleeve for hydraulic chuck
d1: 20 mm; d2: 4 mm; l1: 50 mm; without length adjustment, coolant seal; Ø20XØ4X4
Order number: 30251068
In Stock -

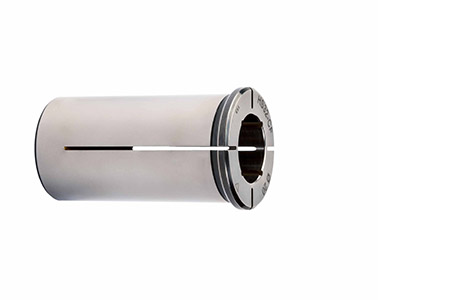

Reducing sleeve for hydraulic chuck
d1: 20 mm; d2: 4 mm; l1: 50 mm; without length adjustment, with cooling channel bores; Ø20XØ4X4
Order number: 30557350
In Stock -
Reducing sleeve for hydraulic chuck
d1: 25 mm; d2: 4 mm; l1: 56 mm; without length adjustment, coolant seal; Ø25XØ4X4
Order number: 30251082
In Stock -
Reducing sleeve for hydraulic chuck
d1: 25 mm; d2: 9 mm; l1: 56 mm; without length adjustment, coolant seal; Ø25XØ9X4
Order number: 30251087
In Stock -
Reducing sleeve for hydraulic chuck
d1: 32 mm; d2: 9 mm; l1: 60 mm; without length adjustment, coolant seal; Ø32XØ9X4
Order number: 30251097
In Stock -

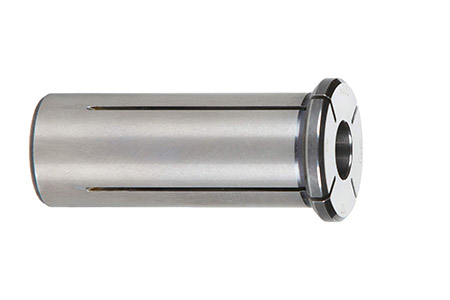

Reducing sleeve for hydraulic chuck
d1: 20 mm; d2: 9 mm; l1: 50 mm; without length adjustment, coolant seal; Ø20XØ9X4
Order number: 30251073
currently out of stockInform me when article is back in stock
