Reducing sleeve for hydraulic chuck

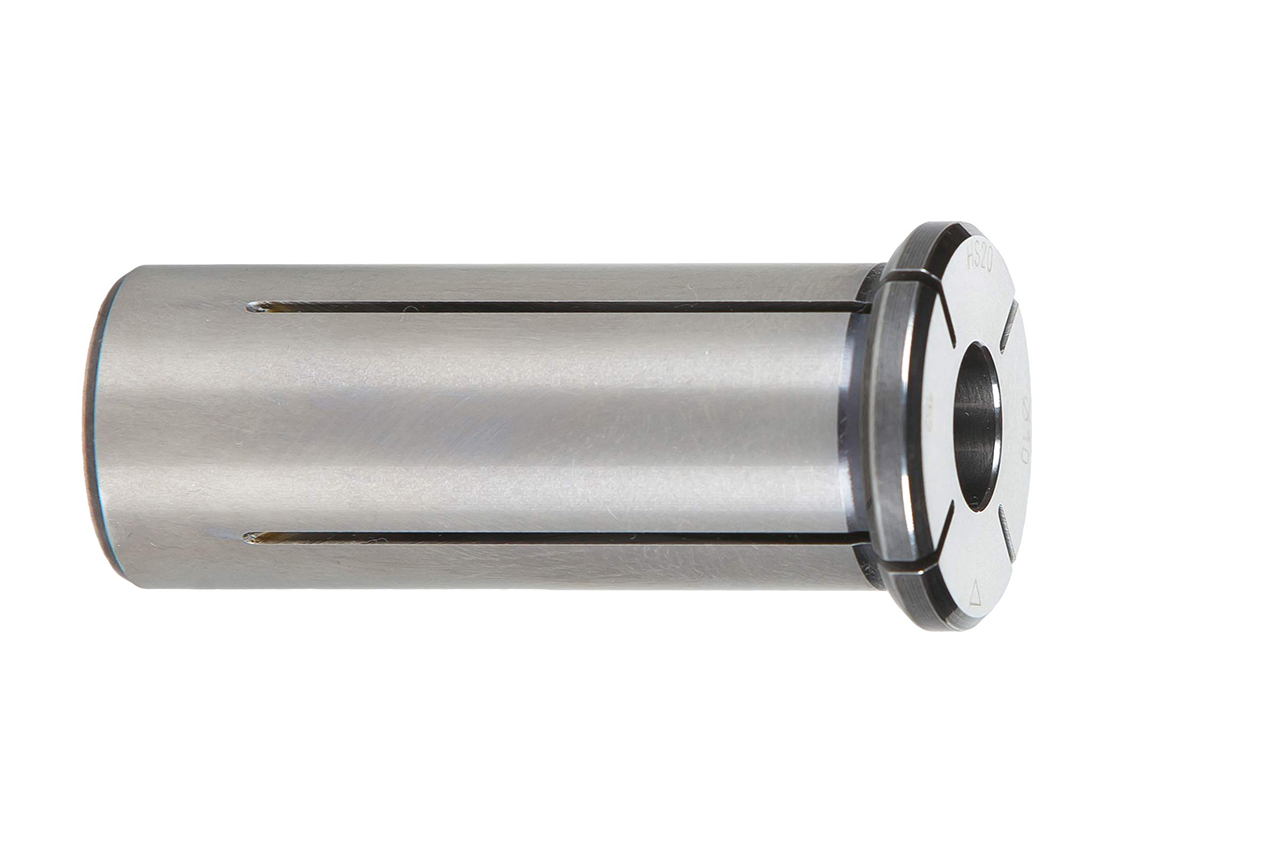

  • Product image Reducing sleeve for hydraulic chuck

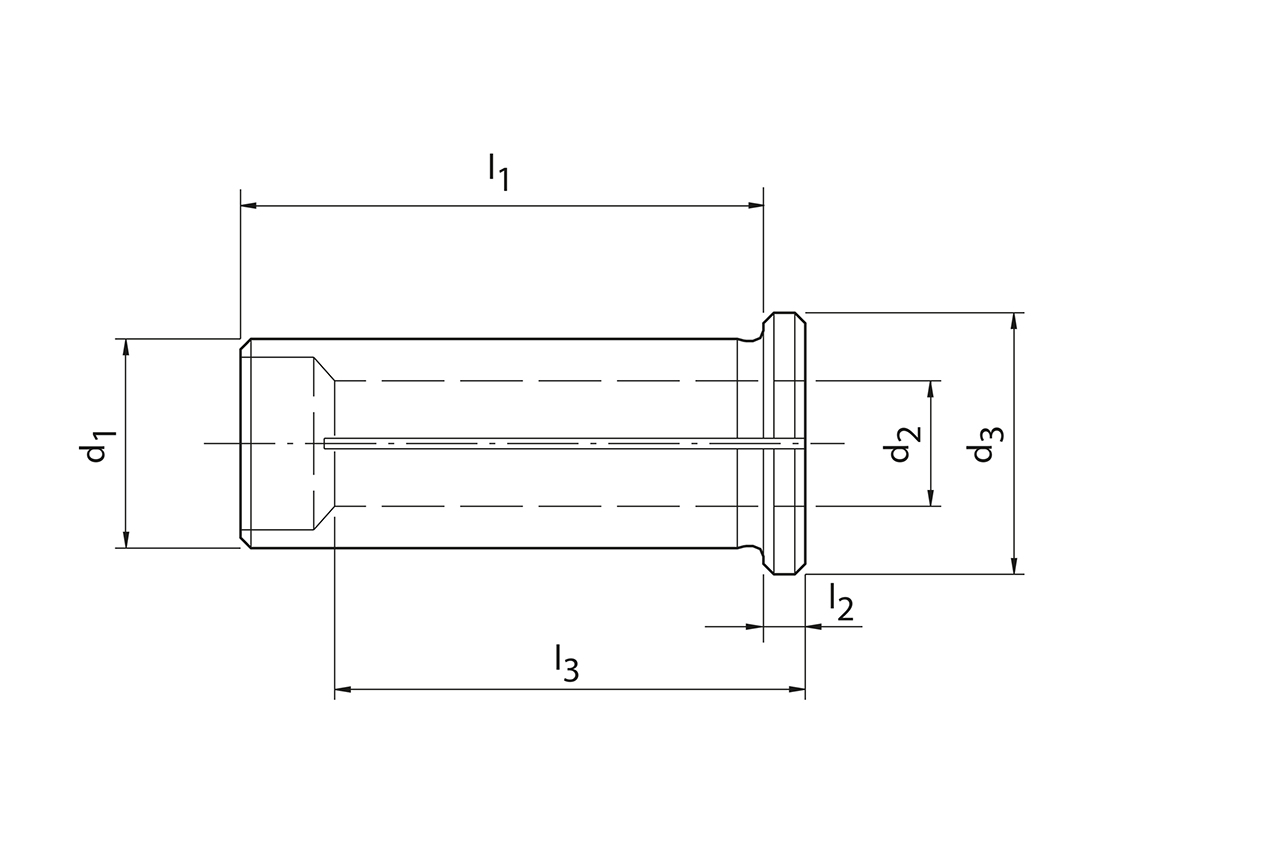

  • Technical drawing Reducing sleeve for hydraulic chuck

Diameter d1 (mm)

25.0

Your unit price

*Login required

Article

30251082

Quantity

Added to Your Shopping Cart

Product description

The reduction sleeves for hydraulic expansion chucks enable the secure clamping of cylindrical shank tools. They precisely reduce the clamping diameter, ensuring maximum flexibility and process reliability during tool clamping. This allows tools of different diameters to be used efficiently and reliably.

Technical specifications

Cooling
coolant seal
d1
25   mm
d2
4   mm
d3
30   mm
l1
56   mm
l2
4   mm
l3
29   mm
l1 + l2
60   mm
Materialgruppe
CZ
Spezifikation
Ø25XØ4X4

Downloads

3D Hüllkontur in stp
30251082_607362970-000-00-E43.STP
Technische Zeichnung in dxf
30251082_606589436-000-00-EN1.DXF
Technische Zeichnung in pdf
30251082_606589436-000-00-EN1.PDF
