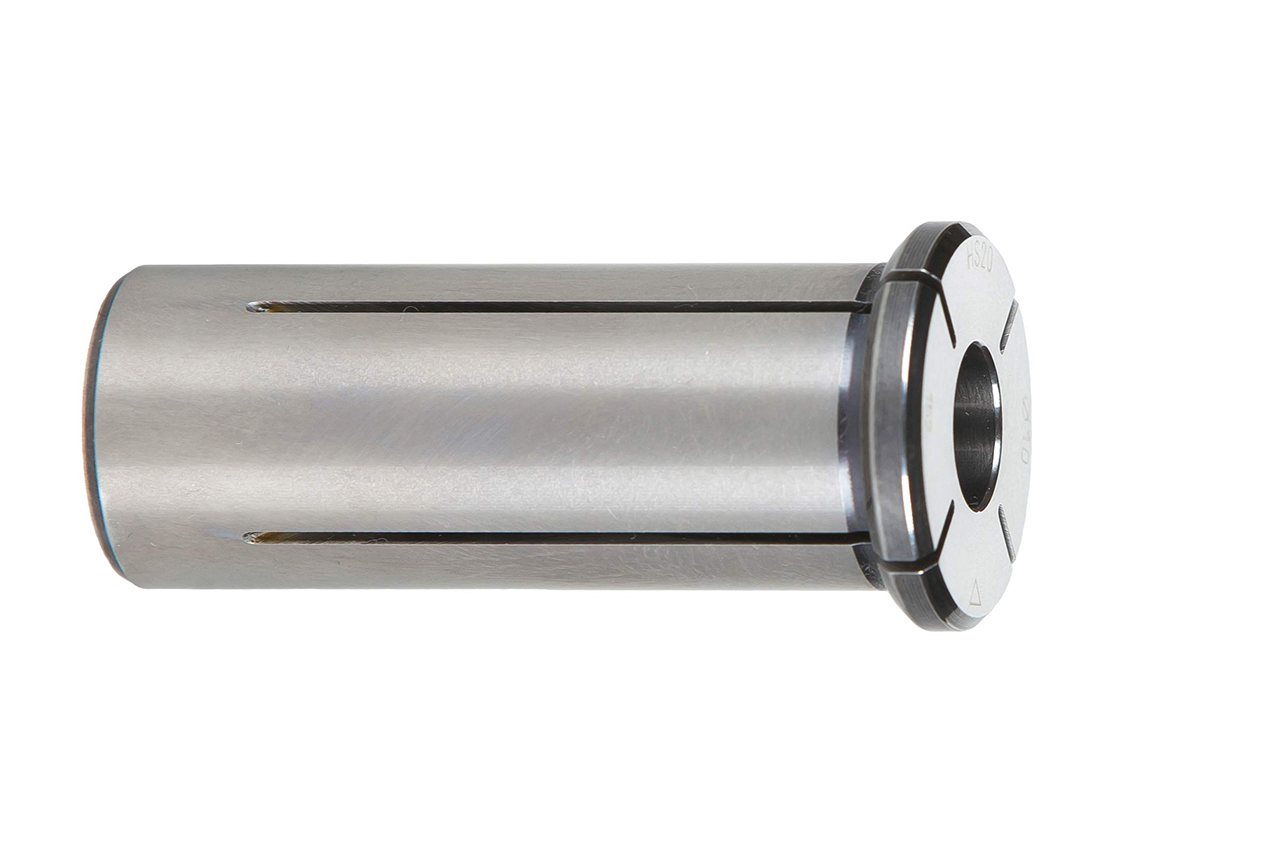

Reducing sleeve for hydraulic chuck
Diameter d1 (mm)
20.0
Your unit price

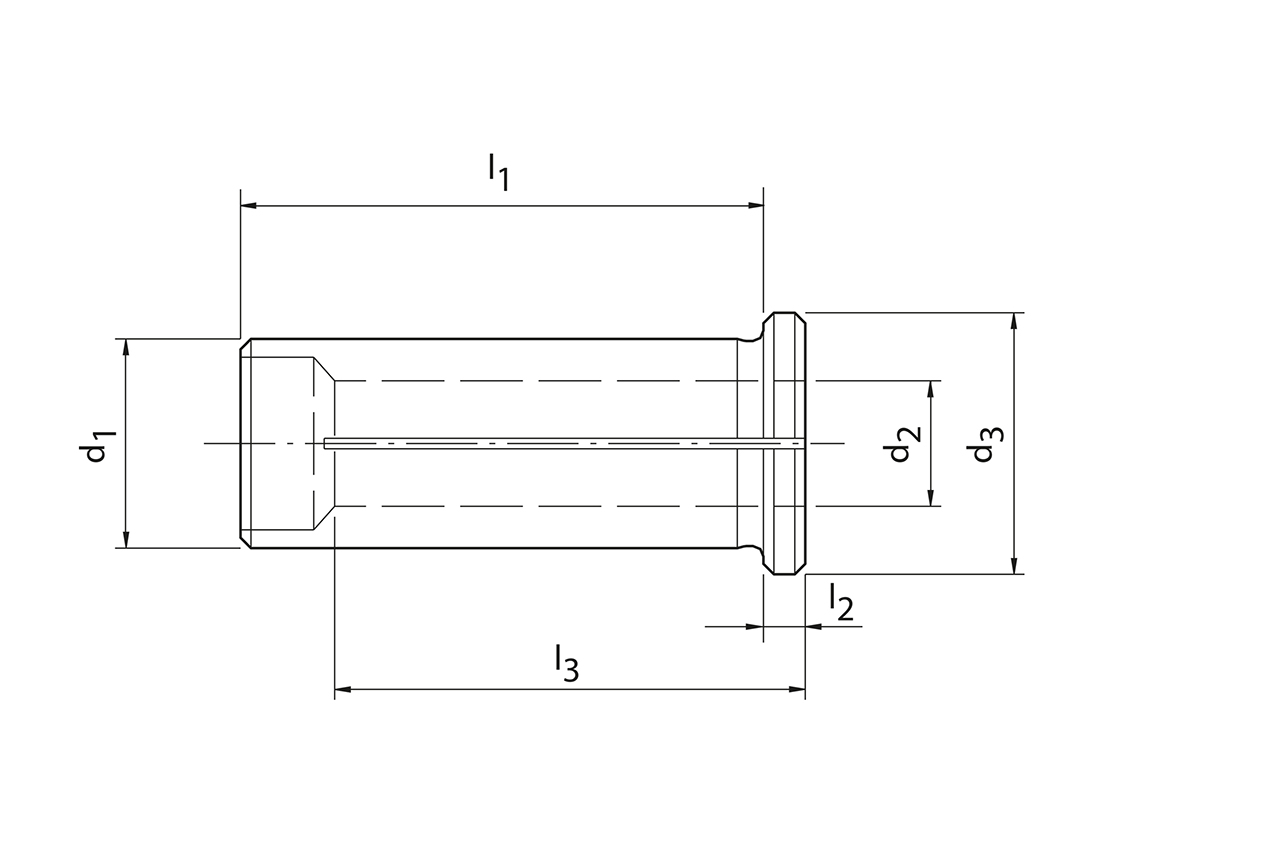

*Login requiredTechnical specifications
- d1
- 20 mm
- d2
- 4 mm
- d3
- 25 mm
- l1
- 50 mm
- l2
- 4 mm
- l3
- 28 mm
- l1 + l2
- 54 mm
- Material group
- CZ
Downloads
- 3D envelope in stp
- 30251068_607362957-000-00-E43.STP
- Technical drawing in dxf
- 30251068_606589423-000-00-EN1.DXF
- Technical drawing in pdf
- 30251068_606589423-000-00-EN1.PDF
