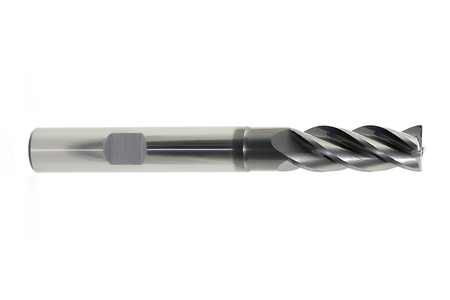

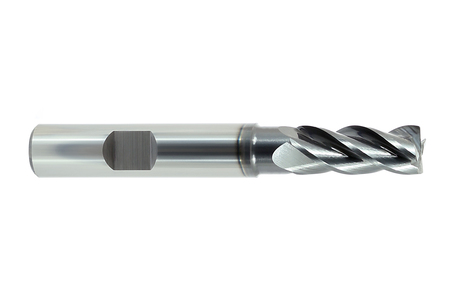

OptiMill®-Uni-HPC-Plus
The OptiMill-Uni-HPC-Plus is designed for highly economical universal machining of steel, stainless steel and cast iron. A high-performance substrate in combination with a newly developed coating guarantee excellent tool life. The precise rounding of the cutting edges ensures low wear while maintaining good surface quality. During machining, the unequal pitch and tooth pitch achieve smooth running, large cutting volumes, high process reliability and low machine load.
Selected facets:
Remove all filters-
        Milling type
-
        Product Family
-
        Diameter (d1)
-

-
        Total length (l1)
-

-
        Flute length (l2)
-

-
        Neck length (l3)
-

-
        Corner bevel width Cx45°
-
        Number of cutting edges
-
        Shank type
-
        Cooling
-
        Product category
-
			OptiMill®-Uni-HPC-Plusl1: 92 mm; l2: 36 mm; l3: 42 mm; d1: 16 mm; d2: 16 mm; R: 4 mm; z: 4 ; SCM770-1600Z04R-R0400HB-HP920 Order number: 30787467 In Stock
-
			OptiMill®-Uni-HPC-Plusl1: 108 mm; l2: 36 mm; l3: 58 mm; d1: 16 mm; d2: 16 mm; R: 4 mm; z: 4 ; SCM720-1600Z04R-R0400HB-HP920 Order number: 31046185 In Stock
-
			OptiMill®-Uni-HPC-Plusl1: 104 mm; l2: 41 mm; l3: 52 mm; d1: 20 mm; d2: 20 mm; R: 4 mm; z: 4 ; SCM770-2000Z04R-R0400HB-HP920 Order number: 30787471 In Stock
-
			OptiMill®-Uni-HPC-Plusl1: 126 mm; l2: 41 mm; l3: 74 mm; d1: 20 mm; d2: 20 mm; R: 4 mm; z: 4 ; SCM720-2000Z04R-R0400HB-HP920 Order number: 31046188 In Stock
-
			OptiMill®-Uni-HPC-Plusl1: 83 mm; l2: 26 mm; l3: 36 mm; d1: 12 mm; d2: 12 mm; R: 4 mm; z: 4 ; SCM770-1200Z04R-R0400HB-HP920 Order number: 30787461 currently out of stockInform me when article is back in stock
