OptiMill®-3D-BN
The OptiMill-3D-BN ball nose mill cutter has been specifically developed for machining materials up to 55 HRC. It is characterized by high radius accuracy, making it ideal for high-precision machining of 3D contours. In addition to an extremely heat-resistant coating and a special carbide substrate, these tools are distinguished by dimensions and geometries tailored specifically to mold making.
Selected facets:
Remove all filters-
Milling type
-
Product Family
-
Diameter (d1)
-
-
Total length (l1)
-
-
Neck length (l3)
-
-
Number of cutting edges
-
Shank type
-
Cooling
-
Product category
(27)
(27)
(27)
(27)-
OptiMill®-3D-BN
l1: 50 mm; l2: 1,2mm; l3: 8 mm; d1: 1 mm; d2: 4 mm; R: 0,5 mm; z: 2; MBN101-010-0050-0800X050-HP820
Order number: 31153296
In Stock -
OptiMill®-3D-BN
l1: 60 mm; l2: 1,2mm; l3: 10 mm; d1: 1 mm; d2: 6 mm; R: 0,5 mm; z: 2; MBN102-010-0050-1000B060-HP820
Order number: 31153367
In Stock -
OptiMill®-3D-BN
l1: 75 mm; l2: 1,2mm; l3: 25 mm; d1: 1 mm; d2: 6 mm; R: 0,5 mm; z: 2; MBN102-010-0050-2500B075-HP820
Order number: 31153370
In Stock -
OptiMill®-3D-BN
l1: 75 mm; l2: 1,2mm; l3: 30 mm; d1: 1 mm; d2: 6 mm; R: 0,5 mm; z: 2; MBN102-010-0050-3000B075-HP820
Order number: 31153371
In Stock -
OptiMill®-3D-BN
l1: 100 mm; l2: 1,2mm; l3: 35 mm; d1: 1 mm; d2: 6 mm; R: 0,5 mm; z: 2; MBN102-010-0050-3500B100-HP820
Order number: 31153372
In Stock -

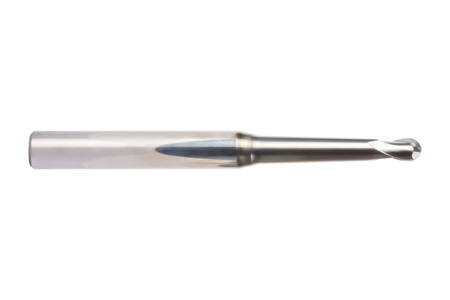

OptiMill®-3D-BN
l1: 60 mm; l2: 1,2mm; l3: 10 mm; d1: 1 mm; d2: 6 mm; R: 0,5 mm; z: 2; MBN102-010-0050-1000C060-HP820
Order number: 31153375
In Stock -
OptiMill®-3D-BN
l1: 60 mm; l2: 1,2mm; l3: 15 mm; d1: 1 mm; d2: 6 mm; R: 0,5 mm; z: 2; MBN102-010-0050-1500C060-HP820
Order number: 31153376
In Stock -
OptiMill®-3D-BN
l1: 60 mm; l2: 1,2 mm; l3: 15 mm; d1: 1 mm; d2: 6 mm; R: 0,5 mm; z: 2; MBN102-010-0050-1500A060-HP820
Order number: 31153366
In Stock -
OptiMill®-3D-BN
l1: 75 mm; l2: 1,2 mm; l3: 25 mm; d1: 1 mm; d2: 6 mm; R: 0,5 mm; z: 2; MBN102-010-0050-2500A075-HP820
Order number: 31153379
In Stock -
OptiMill®-3D-BN
l1: 75 mm; l2: 1,2 mm; l3: 30 mm; d1: 1 mm; d2: 6 mm; R: 0,5 mm; z: 2; MBN102-010-0050-3000A075-HP820
Order number: 31153384
In Stock -
OptiMill®-3D-BN
l1: 100 mm; l2: 1,2 mm; l3: 35 mm; d1: 1 mm; d2: 6 mm; R: 0,5 mm; z: 2; MBN102-010-0050-3500A100-HP820
Order number: 31153389
In Stock -
OptiMill®-3D-BN
l1: 60 mm; l2: 1,2 mm; l3: 10 mm; d1: 1 mm; d2: 6 mm; R: 0,5 mm; z: 2; MBN102-010-0050-1000A060-HP820
Order number: 31153365
In Stock -
OptiMill®-3D-BN
l1: 75 mm; l2: 1,2 mm; l3: 20 mm; d1: 1 mm; d2: 6 mm; R: 0,5 mm; z: 2; MBN102-010-0050-2000A075-HP820
Order number: 31153374
In Stock -

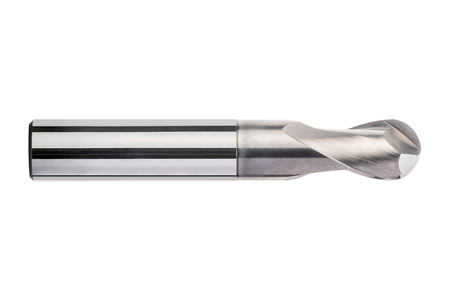

OptiMill®-3D-BN
l1: 50 mm; l2: 1,2mm; l3: 4 mm; d1: 1 mm; d2: 4 mm; R: 0,5 mm; z: 2; MBN101-010-0050-0400X050-HP820
Order number: 31153293
In Stock -
OptiMill®-3D-BN
l1: 50 mm; l2: 1,2mm; l3: 5 mm; d1: 1 mm; d2: 4 mm; R: 0,5 mm; z: 2; MBN101-010-0050-0500X050-HP820
Order number: 31153294
In Stock
