OptiMill®-3D-BN
Diameter d1 (mm)
1.0
Your unit price
*Login requiredProduct description

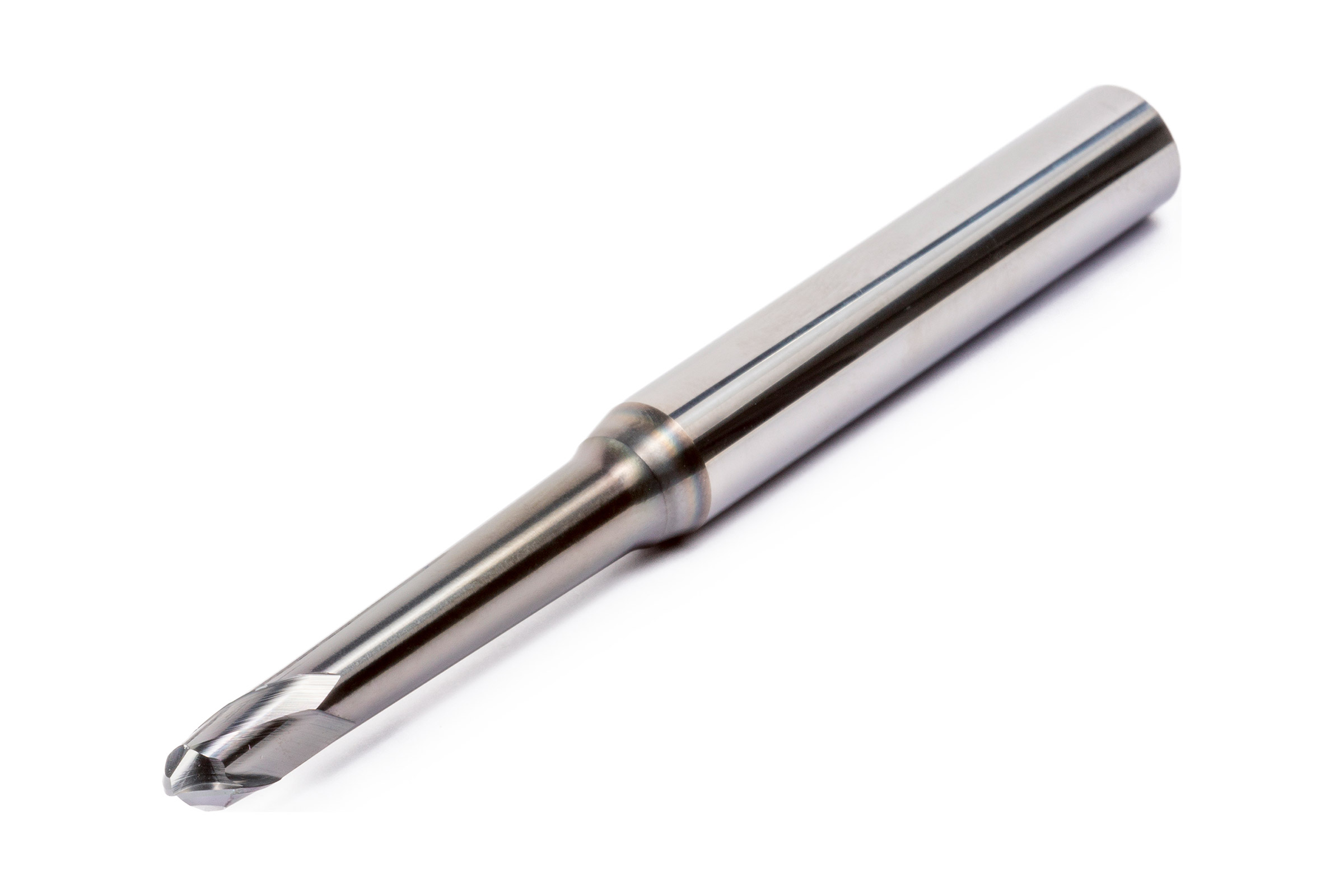

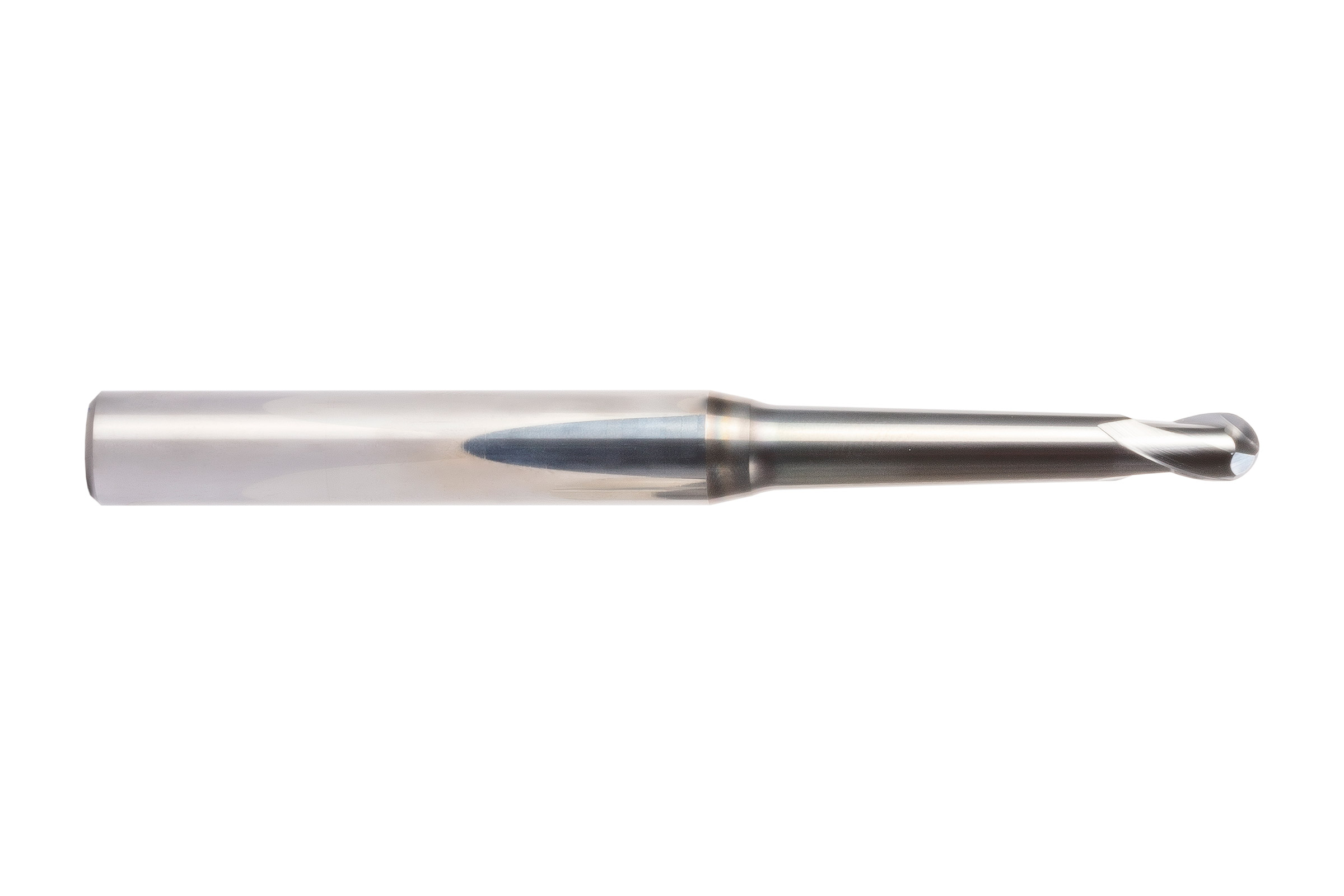

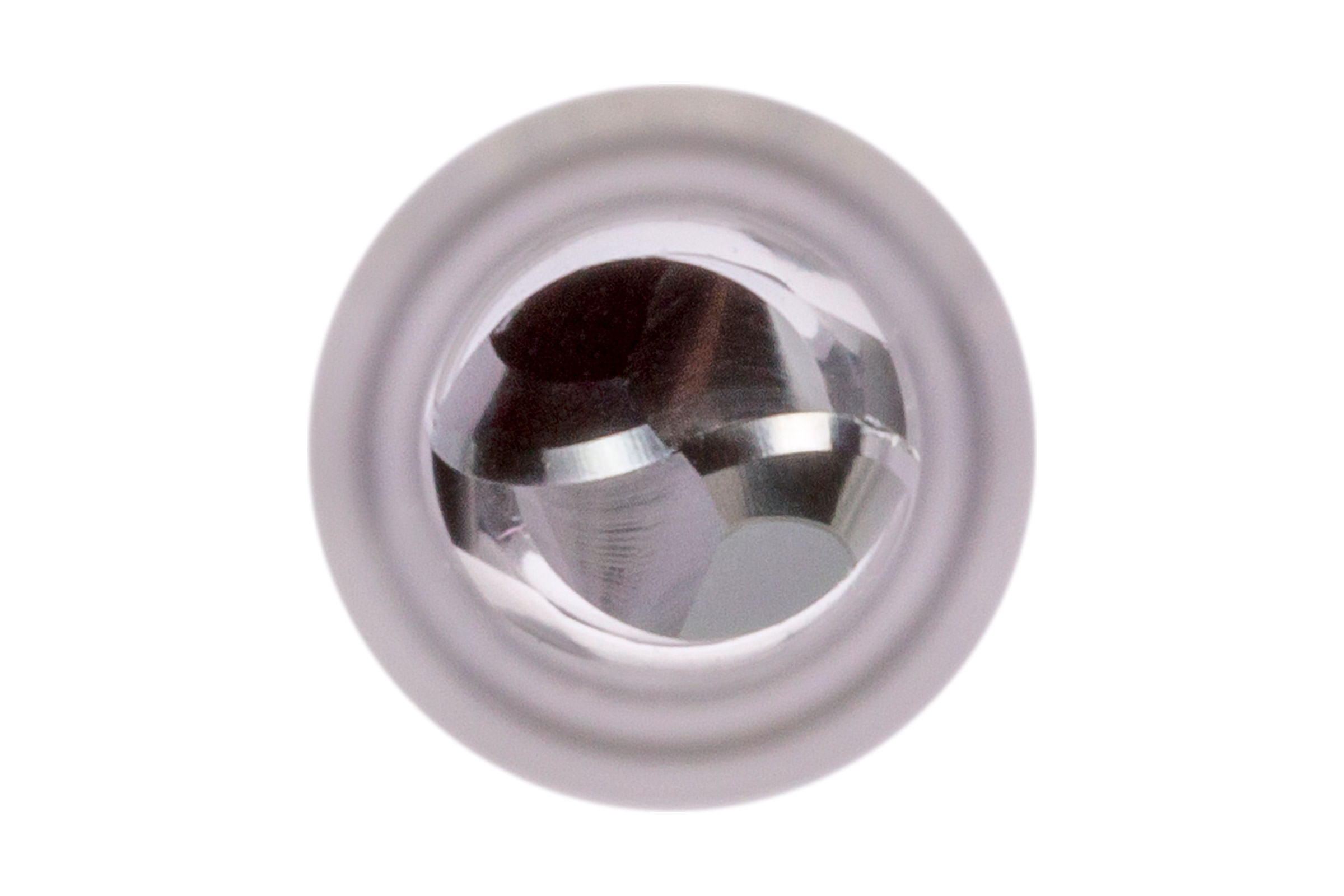

The OptiMill-3D-BN ball end mill cutter has been specifically developed for machining materials up to 55 HRC. It is characterized by high radius accuracy, making it ideal for high-precision machining of 3D contours. In addition to an extremely heat-resistant coating and a special carbide substrate, these tools are distinguished by dimensions and geometries tailored specifically to mold making.

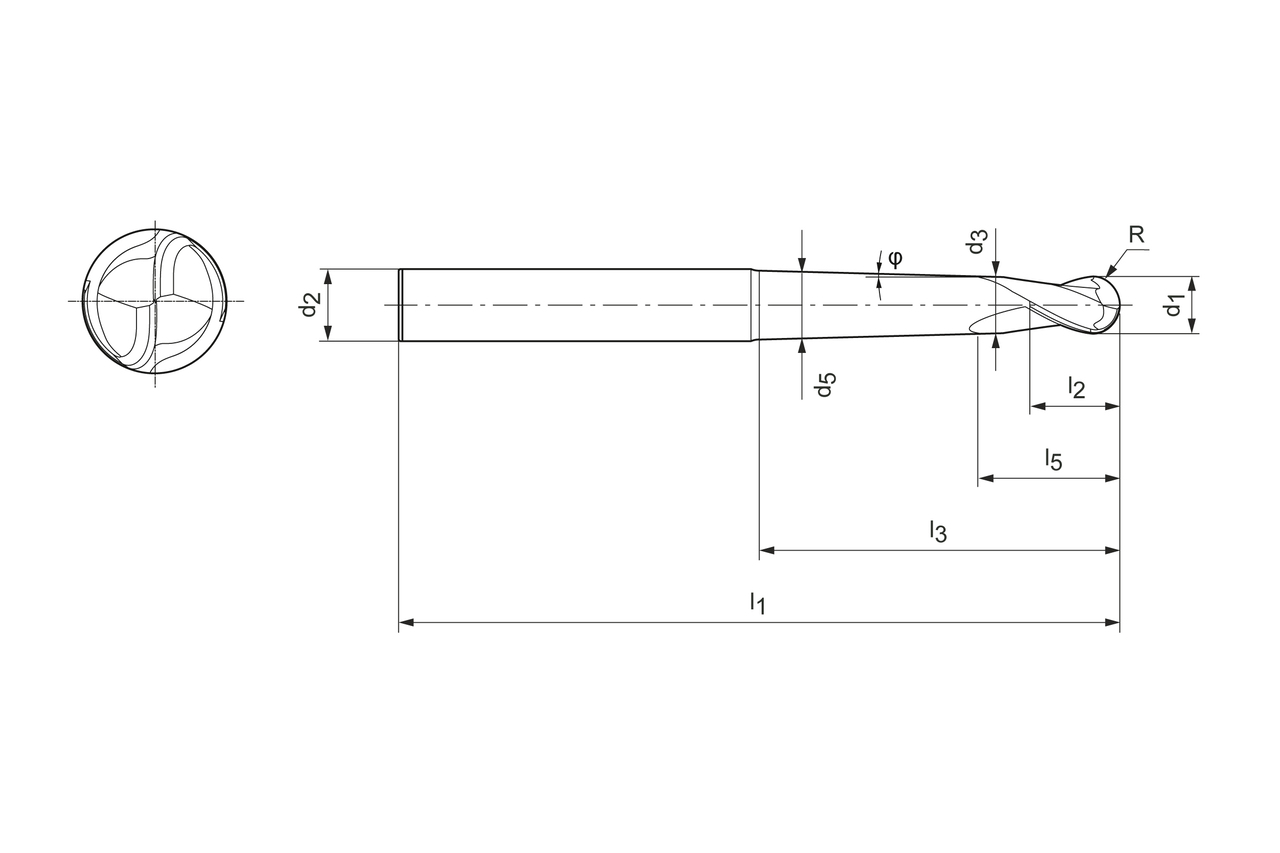

Technical specifications
- Produktklasse
- Performance-Line
- Schneidendurchmesser (d1)
- 1 mm
- Schaftdurchmesser (d2)
- 6 mm
- Gesamtlänge (l1)
- 75 mm
- Schneidenlänge (l2)
- 1.2 mm
- Halslänge (l3)
- 25 mm
- Eckenradius (R)
- 0.5 mm
- Konuswinkel (φ)
- 1 °
- Anzahl Schneiden (z)
- 2
- Kühlmittelzufuhr
- äußere Kühlmittelzufuhr
- Schaft Typ
- HA
- Materialgruppe
- RC
Downloads
- 3D Hüllkontur in stp
- 31153370_607638971-000-02-E43.STP
- Technische Zeichnung in dxf
- 31153370_607408720-000-03-ED1-MM.DXF
- Technische Zeichnung in pdf
- 31153370_607408720-000-03-ED1-MM.PDF
- Technische Zeichnung in tif
- 31153370_607408720-000-03-ED1-MM.TIF
