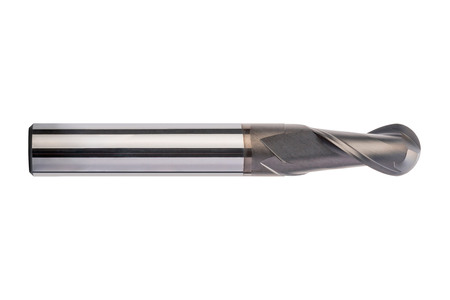

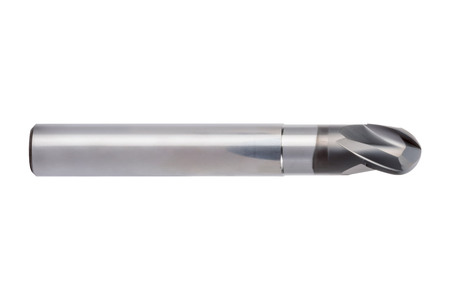

OptiMill®-3D-BN-Graphite
The OptiMill®-3D-BN-Graphite ball nose milling cutter was specially developed for machining graphite electrodes. It is characterised by a special geometry and diamond coating, which prevents chipping and thus damage to the sensitive profiles even after prolonged milling.
Selected facets:
- external cooling Cooling
- 1.5 Corner radius (R)
- 0.19 Corner radius (R)
- OptiMill®-3D-BN-Graphite family
-
Milling type
-
Product Family
-
Material charateristics
-
Diameter (d1)
-
-
Shank diameter (d2)
-
Total length (l1)
-
-
Flute length (l2)
-
-
Neck length (l3)
-
-
Shank type
-
Cooling
-
Product category
(9)-
OptiMill®-3D-BN-Graphite
l1: 75 mm; l2: 6 mm; l3:25 mm; d1: 3 mm; d2:4 mm; R: 1,5 mm; z: 2; MBN110-030-0150-2500X075-HC116
Order number: 31152847
In Stock -
OptiMill®-3D-BN-Graphite
l1: 85 mm; l2: 2 mm; l3:45 mm; d1: 3 mm; d2:4 mm; R: 1,5 mm; z: 3; MBN111-030-0150-4500X085-HC116
Order number: 31152868
In Stock -
OptiMill®-3D-BN-Graphite
l1: 50 mm; l2: 6 mm; l3:10 mm; d1: 3 mm; d2:4 mm; R: 1,5 mm; z: 2; MBN110-030-0150-1000X050-HC116
Order number: 31152844
In Stock -
OptiMill®-3D-BN-Graphite
l1: 50 mm; l2: 6 mm; l3:15 mm; d1: 3 mm; d2:4 mm; R: 1,5 mm; z: 2; MBN110-030-0150-1500X050-HC116
Order number: 31152845
In Stock -
OptiMill®-3D-BN-Graphite
l1: 50 mm; l2: 4,5 mm; l3:5 mm; d1: 3 mm; d2:4 mm; R: 1,5 mm; z: 2; MBN110-030-0150-0500X050-HC116
Order number: 31152843
In Stock -
OptiMill®-3D-BN-Graphite
l1: 75 mm; l2: 6 mm; l3:20 mm; d1: 3 mm; d2:4 mm; R: 1,5 mm; z: 2; MBN110-030-0150-2000X075-HC116
Order number: 31152846
In Stock -
OptiMill®-3D-BN-Graphite
l1: 75 mm; l2: 6 mm; l3:30 mm; d1: 3 mm; d2:4 mm; R: 1,5 mm; z: 2; MBN110-030-0150-3000X075-HC116
Order number: 31152848
In Stock -
OptiMill®-3D-BN-Graphite
l1: 60 mm; l2: 2 mm; l3:20 mm; d1: 3 mm; d2:4 mm; R: 1,5 mm; z: 3; MBN111-030-0150-2000X060-HC116
Order number: 31152866
In Stock -
OptiMill®-3D-BN-Graphite
l1: 60 mm; l2: 2 mm; l3:30 mm; d1: 3 mm; d2:4 mm; R: 1,5 mm; z: 3; MBN111-030-0150-3000X060-HC116
Order number: 31152867
In Stock
