OptiMill®-3D-BN-Graphite
Diameter d1 (mm)
3.0
Your unit price
*Login requiredWe recommend:
Product description

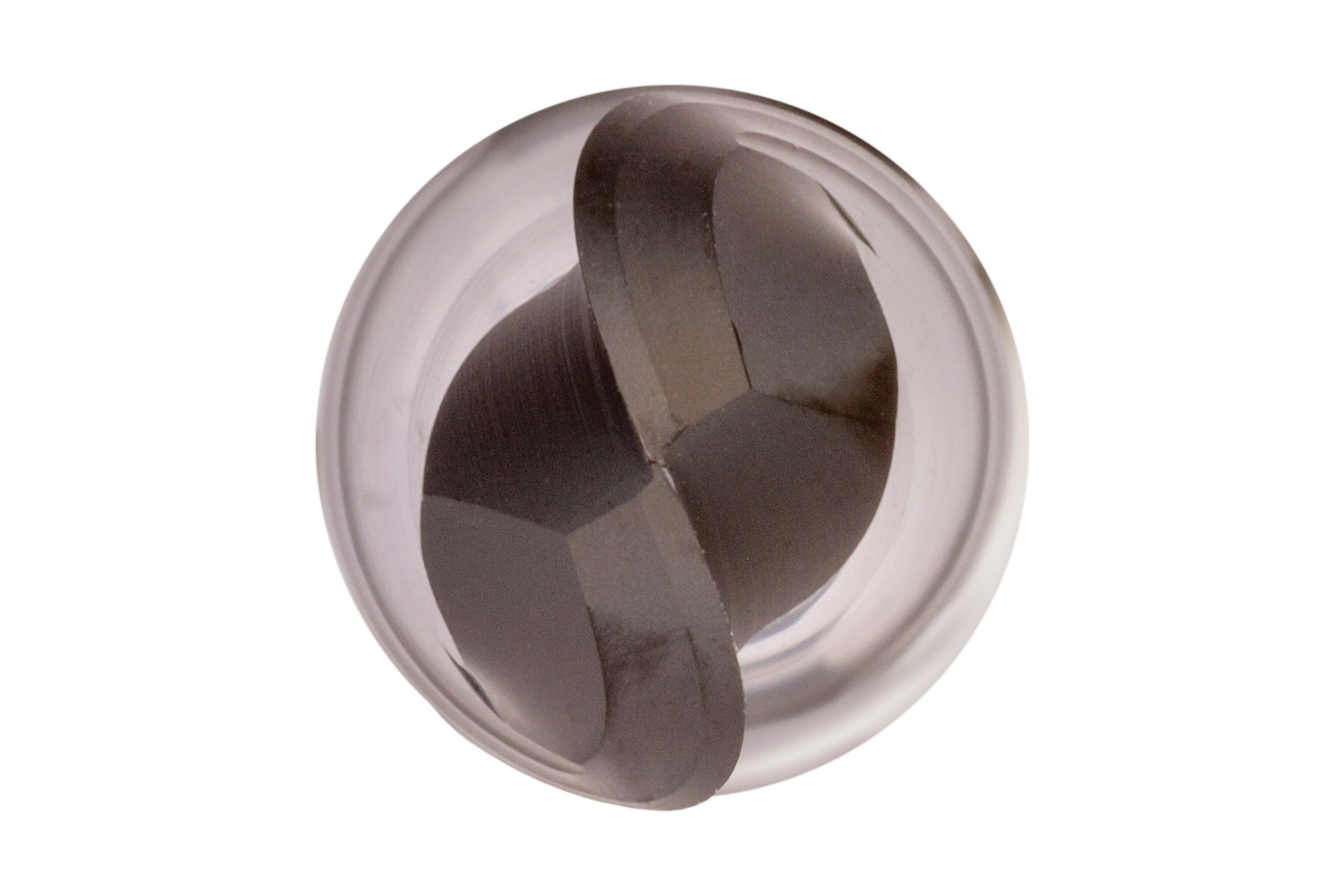

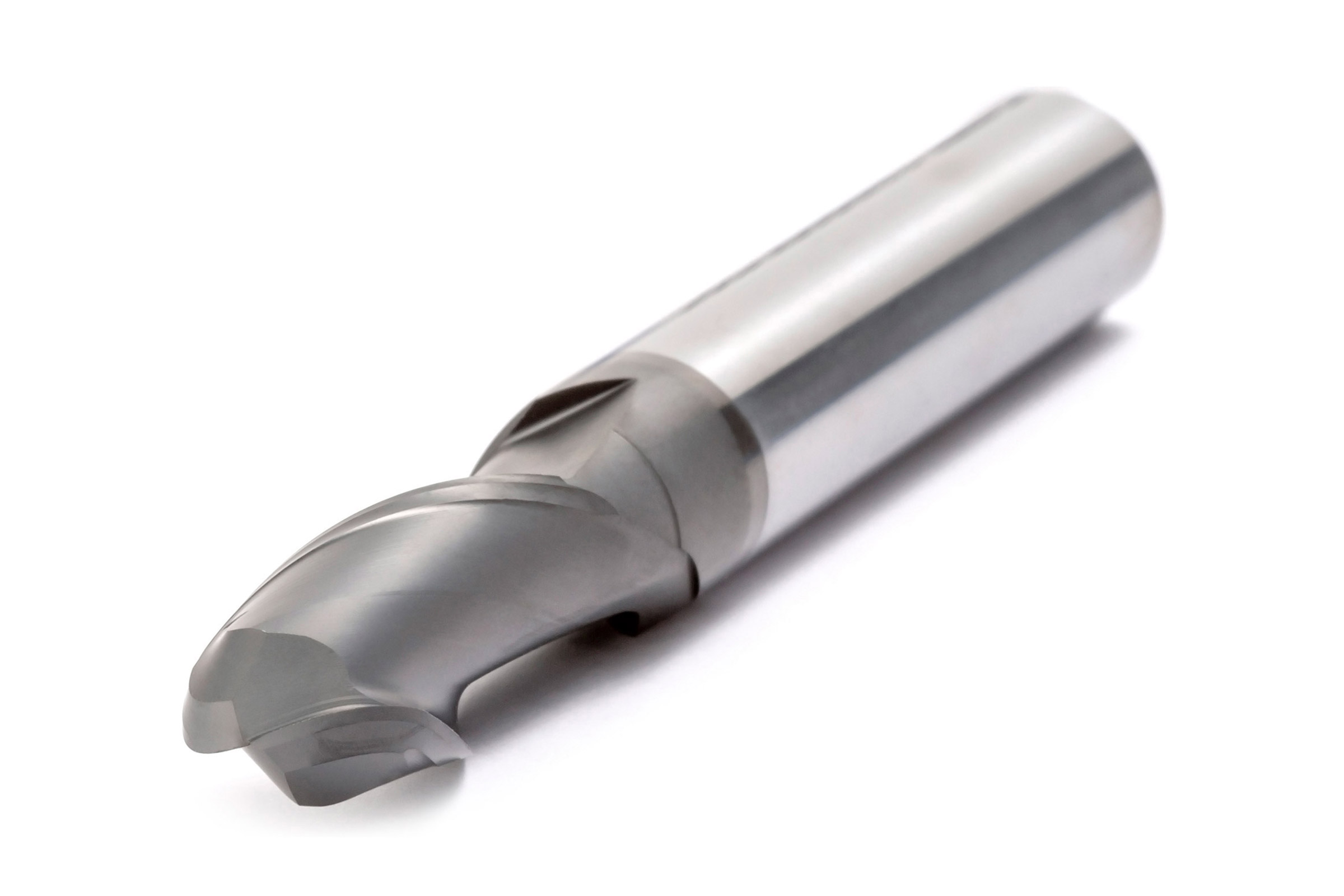

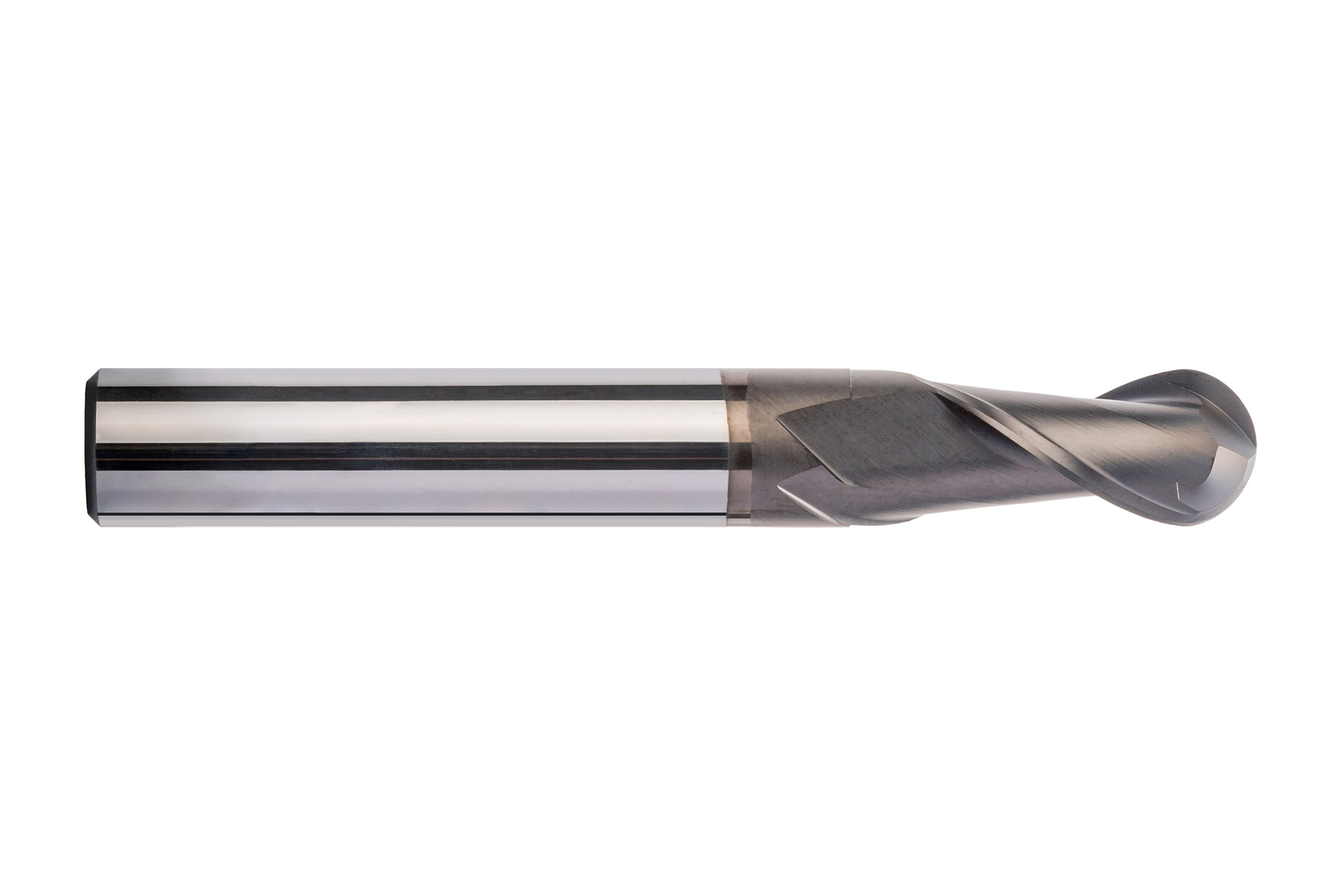

The OptiMill®-3D-BN-Graphite ball nose milling cutter was specially developed for machining graphite electrodes. It is characterised by a special geometry and diamond coating, which prevents chipping and thus damage to the sensitive profiles even after prolonged milling.
Technical specifications
- Product class
- Expert-Line
- Diameter (d1)
- 3 mm
- Shaft diameter (d2)
- 4 mm
- Total length (l1)
- 50 mm
- Length of cutting edge (l2)
- 6 mm
- Neck length (l3)
- 15 mm
- Corner radius (R)
- 1.5 mm
- Number of cutting edges (z)
- 2
- Cooling
- external cooling
- Shank type
- HA
- Cutting material
- HC116
- Material group
- RC
- Specification
- MBN110-030-0150-1500X050-HC116
Downloads

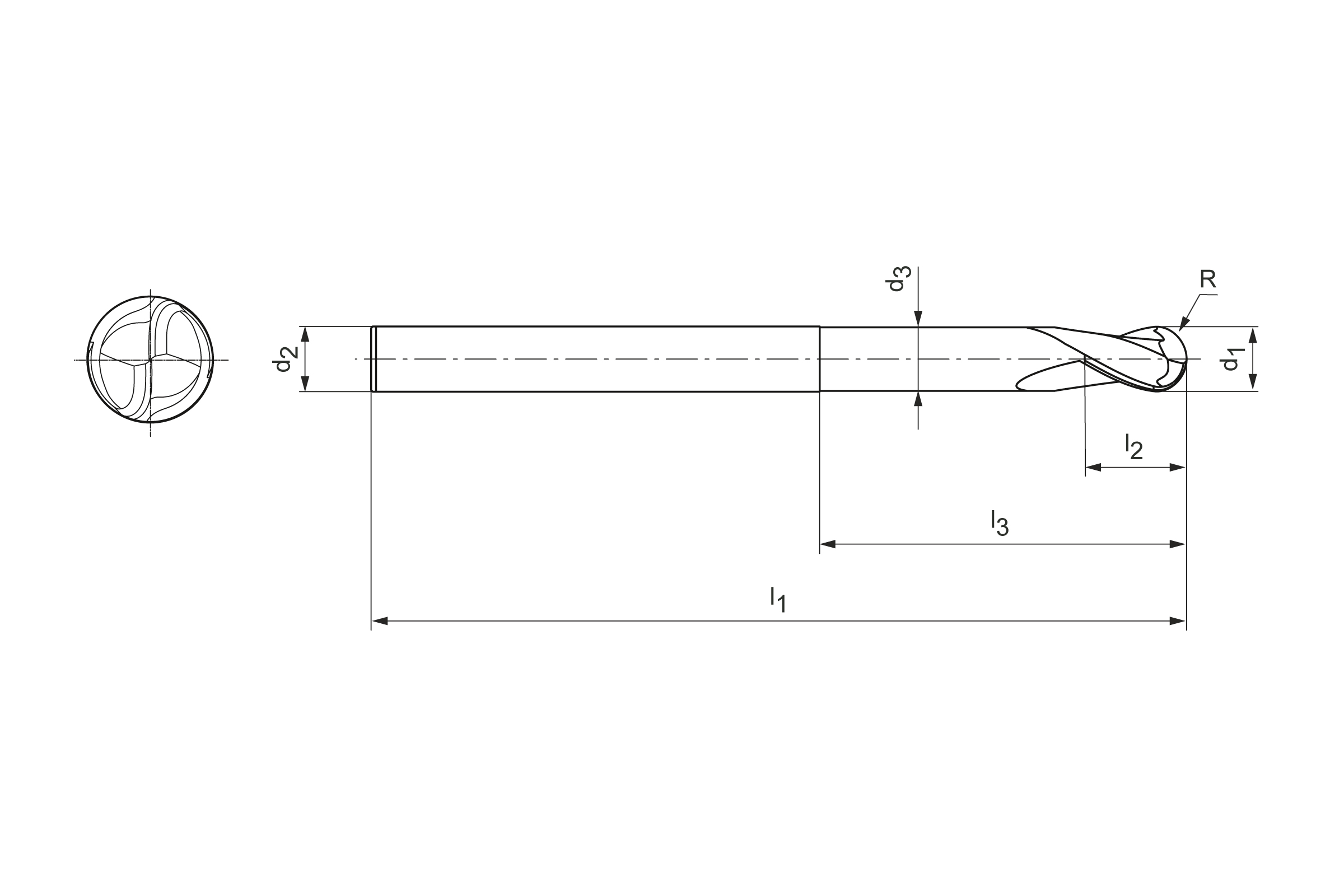

- Technical drawing in dxf
- 31152845_607905501-000-00-ED1-MM.DXF
- Technical drawing in pdf
- 31152845_607905501-000-00-ED1-MM.PDF
- Technical drawing in tif
- 31152845_607905501-000-00-ED1-MM.TIF
- 3D envelope in stp
- 31152845_607905502-000-00-E43.STP
- Cutting data recommendations
- 31152845_OptiMill-3D-BN-Graphite_EN.pdf
