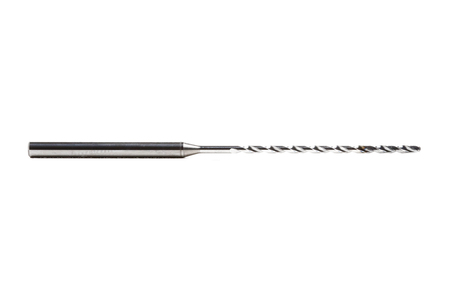

MICRO-Deep-Drill
The double-edged deep drilling tool, MICRO-Deep-Drill, is excellently suited for deep drilling applications in steel and cast materials. Thanks to its four guiding edges, the drill bit deviation is minimized, resulting in significantly improved drilling results. Furthermore, the special TiAlN coating ensures short chips and guarantees a reliable drilling process.
Selected facets:
-
Material charateristics
- 5xD Drilling depth xD
- 20xD Drilling depth xD
- 15xD Drilling depth xD
- 12xD Drilling depth xD
- MICRO-Deep-Drill family
-
Product Family
-
Diameter (d1)
-
-
Shank diameter (d2)
-
Number of cutting edges (z)
-
Cooling
-
Tip angle
-
Product category
-
Bore tolerance
(20)-
MICRO-Deep-Drill
d1: 1 mm; d2: 3 mm; l1: 62 mm; l2: 27 mm; z: 2; internal cooling; SCD171-0100-2-4-135HA20-HP246
Order number: 30998795
In Stock -
MICRO-Deep-Drill
d1: 1,1 mm; d2: 3 mm; l1: 62 mm; l2: 27 mm; z: 2; internal cooling; SCD171-0110-2-4-135HA20-HP246
Order number: 30998796
In Stock -
MICRO-Deep-Drill
d1: 1,2 mm; d2: 3 mm; l1: 62 mm; l2: 27 mm; z: 2; internal cooling; SCD171-0120-2-4-135HA20-HP246
Order number: 30998798
In Stock -
MICRO-Deep-Drill
d1: 1,3 mm; d2: 3 mm; l1: 70 mm; l2: 35 mm; z: 2; internal cooling; SCD171-0130-2-4-135HA20-HP246
Order number: 30998799
In Stock -
MICRO-Deep-Drill
d1: 1,4 mm; d2: 3 mm; l1: 70 mm; l2: 35 mm; z: 2; internal cooling; SCD171-0140-2-4-135HA20-HP246
Order number: 30998800
In Stock -
MICRO-Deep-Drill
d1: 1,5 mm; d2: 3 mm; l1: 70 mm; l2: 35 mm; z: 2; internal cooling; SCD171-0150-2-4-135HA20-HP246
Order number: 30998801
In Stock -
MICRO-Deep-Drill
d1: 1,6 mm; d2: 3 mm; l1: 75 mm; l2: 41 mm; z: 2; internal cooling; SCD171-0160-2-4-135HA20-HP246
Order number: 30998802
In Stock -
MICRO-Deep-Drill
d1: 1,7 mm; d2: 3 mm; l1: 75 mm; l2: 41 mm; z: 2; internal cooling; SCD171-0170-2-4-135HA20-HP246
Order number: 30998803
In Stock -
MICRO-Deep-Drill
d1: 1,8 mm; d2: 3 mm; l1: 75 mm; l2: 41 mm; z: 2; internal cooling; SCD171-0180-2-4-135HA20-HP246
Order number: 30998804
In Stock -
MICRO-Deep-Drill
d1: 1,9 mm; d2: 3 mm; l1: 80 mm; l2: 46 mm; z: 2; internal cooling; SCD171-0190-2-4-135HA20-HP246
Order number: 30998805
In Stock -
MICRO-Deep-Drill
d1: 2,1 mm; d2: 3 mm; l1: 80 mm; l2: 46 mm; z: 2; internal cooling; SCD171-0210-2-4-135HA20-HP246
Order number: 30998807
In Stock -
MICRO-Deep-Drill
d1: 2,2 mm; d2: 3 mm; l1: 90 mm; l2: 55 mm; z: 2; internal cooling; SCD171-0220-2-4-135HA20-HP246
Order number: 30998808
In Stock -
MICRO-Deep-Drill
d1: 2,3 mm; d2: 3 mm; l1: 90 mm; l2: 55 mm; z: 2; internal cooling; SCD171-0230-2-4-135HA20-HP246
Order number: 30998809
In Stock -
MICRO-Deep-Drill
d1: 2,4 mm; d2: 3 mm; l1: 90 mm; l2: 55 mm; z: 2; internal cooling; SCD171-0240-2-4-135HA20-HP246
Order number: 30998810
In Stock -
MICRO-Deep-Drill
d1: 2,5 mm; d2: 3 mm; l1: 90 mm; l2: 55 mm; z: 2; internal cooling; SCD171-0250-2-4-135HA20-HP246
Order number: 30998811
In Stock
