MICRO-Deep-Drill
Diameter d1 (mm)
1.4
Your unit price
*Login requiredProduct description

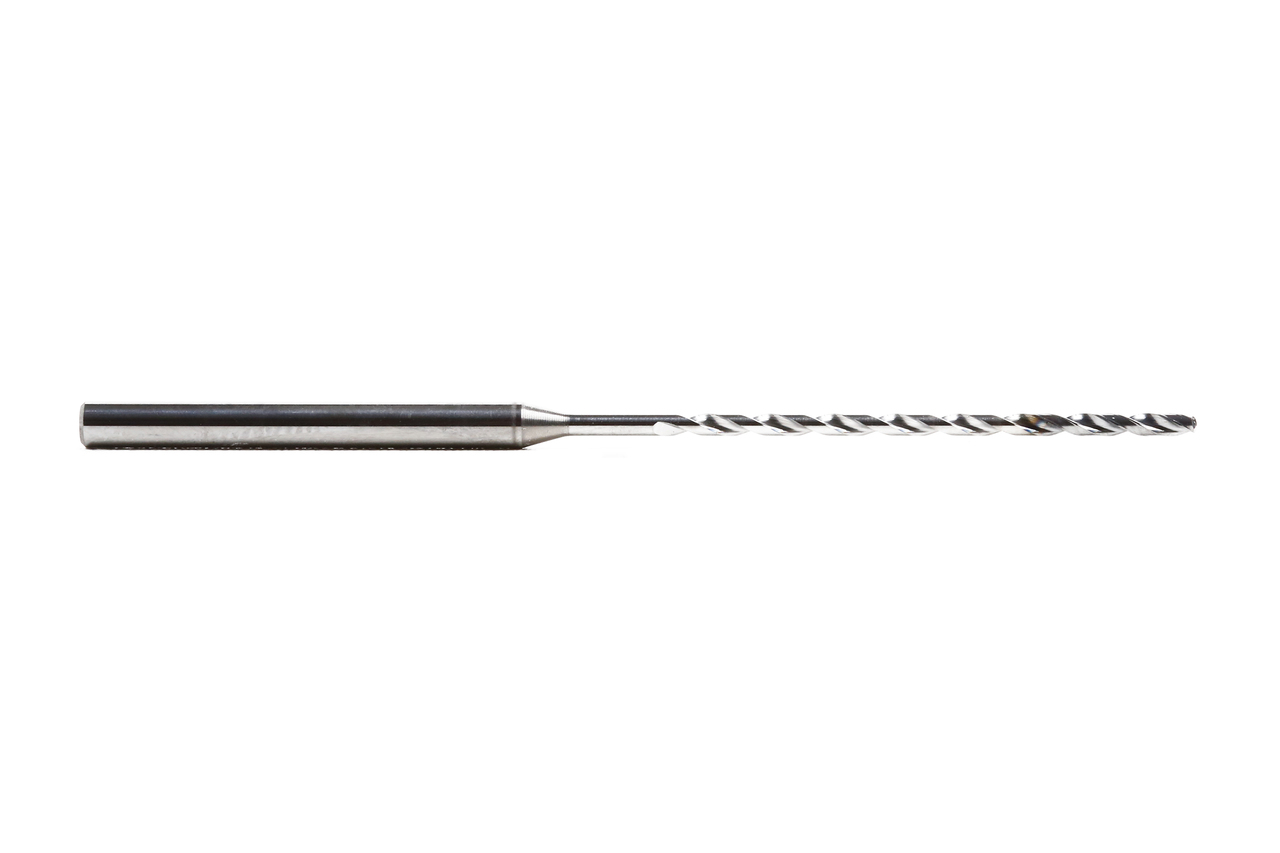

The double-edged deep drilling tool, MICRO-Deep-Drill, is excellently suited for deep drilling applications in steel and cast materials. Thanks to its four guiding edges, the drill bit deviation is minimized, resulting in significantly improved drilling results. Furthermore, the special TiAlN coating ensures short chips and guarantees a reliable drilling process.

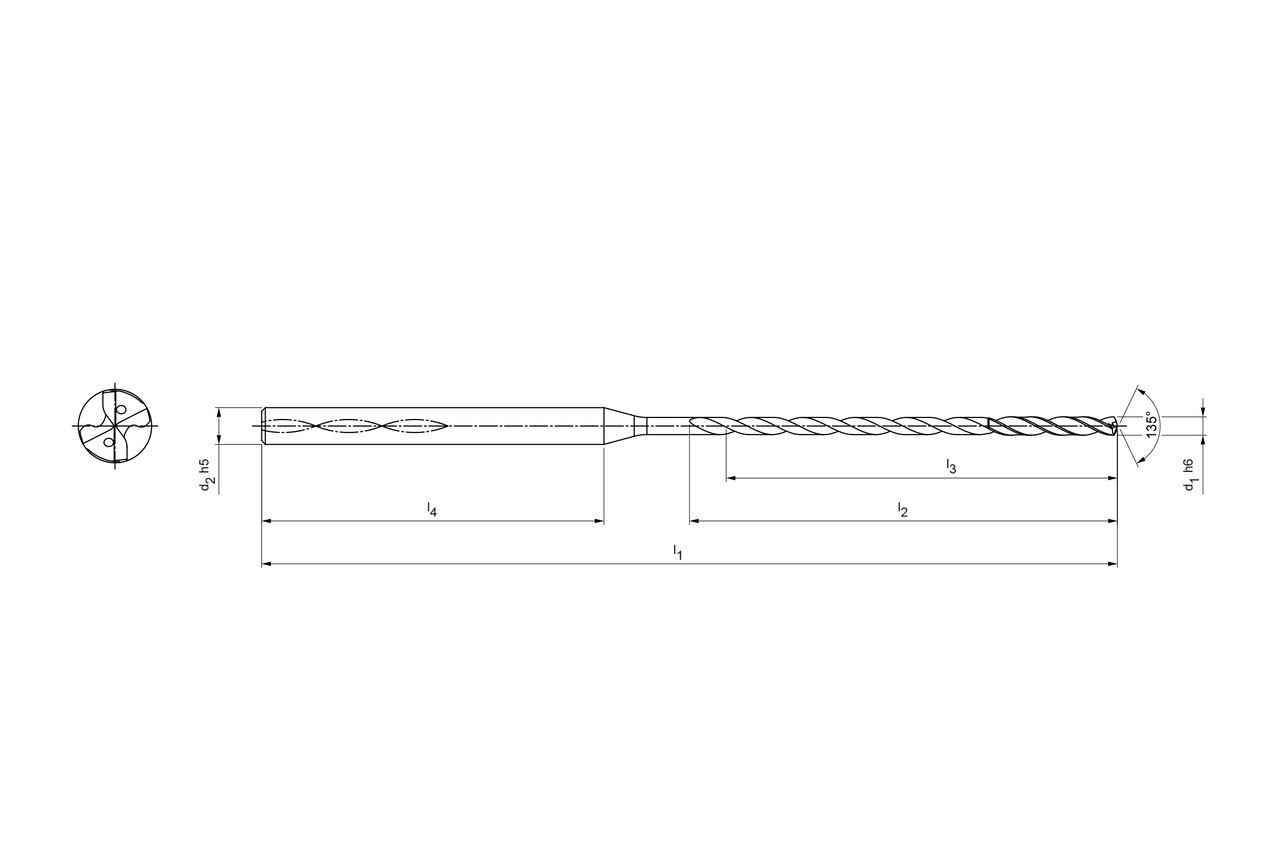

Technical specifications
- Product class
- Performance-Line
- Drilling depth
- 20xD
- d1
- 1.4 mm
- d2
- 3 mm
- l1
- 70 mm
- l2
- 35 mm
- l4
- 28 mm
- Cooling
- internal cooling
- Number of cutting edges (z)
- 2
- Shank tolerance
- h6
- Bore tolerance
- ≥ IT 9
- Shank type
- HA
- Tip angle
- 135 °
- Side rake angle
- 30 °
- Material group
- R6
Downloads
- Brochure
- 30998800_MicroDrills_EN.pdf
- Cutting data recommendations
- 30998800_Micro-Deep-Drill_EN.pdf
