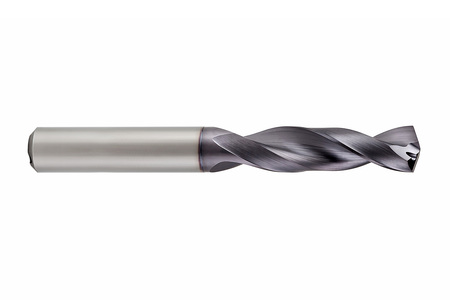

ECU-Drill-Uni
The ECU-Drill-Uni is optimally suited for universal use due to its geometry and coating. Steel, stainless steel and cast iron can be drilled economically and reliably. The ECU-Drill-Uni is available as a coated version for both internal and external coolant supply.
Selected facets:
- 8.0 Shank diameter (d2)
- 4xD Drilling depth xD
- 20xD Drilling depth xD
- 16.0 Shank diameter (d2)
- internal cooling Cooling
- ECU-Drill-Uni family
-
Product Family
-
Diameter (d1)
-
-
Total length (l1)
-
Number of cutting edges (z)
-
Tip angle
-
Product category
-
Bore tolerance
(31)
(31)
(31)-
ECU-Drill-Uni
d1: 6,1 mm; d2: 8 mm; l1: 79 mm; l2: 38 mm; l3: 30 mm; z: 2 ; internal cooling; SCD351-0610-2-2-140HA04-HP765
Order number: 30421862
In Stock -
ECU-Drill-Uni
d1: 6,2 mm; d2: 8 mm; l1: 79 mm; l2: 38 mm; l3: 30 mm; z: 2 ; internal cooling; SCD351-0620-2-2-140HA04-HP765
Order number: 30421863
In Stock -
ECU-Drill-Uni
d1: 6,3 mm; d2: 8 mm; l1: 79 mm; l2: 38 mm; l3: 30 mm; z: 2 ; internal cooling; SCD351-0630-2-2-140HA04-HP765
Order number: 30421864
In Stock -
ECU-Drill-Uni
d1: 6,4 mm; d2: 8 mm; l1: 79 mm; l2: 38 mm; l3: 30 mm; z: 2 ; internal cooling; SCD351-0640-2-2-140HA04-HP765
Order number: 30421865
In Stock -
ECU-Drill-Uni
d1: 6,5 mm; d2: 8 mm; l1: 79 mm; l2: 38 mm; l3: 30 mm; z: 2 ; internal cooling; SCD351-0650-2-2-140HA04-HP765
Order number: 30421866
In Stock -
ECU-Drill-Uni
d1: 6,6 mm; d2: 8 mm; l1: 79 mm; l2: 38 mm; l3: 30 mm; z: 2 ; internal cooling; SCD351-0660-2-2-140HA04-HP765
Order number: 30421867
In Stock -
ECU-Drill-Uni
d1: 6,7 mm; d2: 8 mm; l1: 79 mm; l2: 38 mm; l3: 30 mm; z: 2 ; internal cooling; SCD351-0670-2-2-140HA04-HP765
Order number: 30421868
In Stock -
ECU-Drill-Uni
d1: 6,8 mm; d2: 8 mm; l1: 79 mm; l2: 38 mm; l3: 30 mm; z: 2 ; internal cooling; SCD351-0680-2-2-140HA04-HP765
Order number: 30421869
In Stock -
ECU-Drill-Uni
d1: 6,9 mm; d2: 8 mm; l1: 79 mm; l2: 38 mm; l3: 30 mm; z: 2 ; internal cooling; SCD351-0690-2-2-140HA04-HP765
Order number: 30421870
In Stock -
ECU-Drill-Uni
d1: 7 mm; d2: 8 mm; l1: 79 mm; l2: 38 mm; l3: 30 mm; z: 2 ; internal cooling; SCD351-0700-2-2-140HA04-HP765
Order number: 30421871
In Stock -
ECU-Drill-Uni
d1: 7,1 mm; d2: 8 mm; l1: 79 mm; l2: 42 mm; l3: 34 mm; z: 2 ; internal cooling; SCD351-0710-2-2-140HA04-HP765
Order number: 30421872
In Stock -
ECU-Drill-Uni
d1: 7,2 mm; d2: 8 mm; l1: 79 mm; l2: 42 mm; l3: 34 mm; z: 2 ; internal cooling; SCD351-0720-2-2-140HA04-HP765
Order number: 30421873
In Stock -
ECU-Drill-Uni
d1: 7,3 mm; d2: 8 mm; l1: 79 mm; l2: 42 mm; l3: 34 mm; z: 2 ; internal cooling; SCD351-0730-2-2-140HA04-HP765
Order number: 30421874
In Stock -
ECU-Drill-Uni
d1: 7,4 mm; d2: 8 mm; l1: 79 mm; l2: 42 mm; l3: 34 mm; z: 2 ; internal cooling; SCD351-0740-2-2-140HA04-HP765
Order number: 30421875
In Stock -
ECU-Drill-Uni
d1: 7,45 mm; d2: 8 mm; l1: 79 mm; l2: 42 mm; l3: 34 mm; z: 2 ; internal cooling; SCD351-0745-2-2-140HA04-HP765
Order number: 30569196
In Stock
