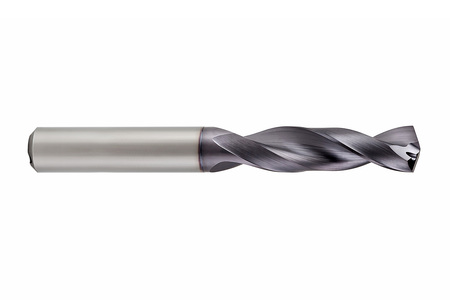

ECU-Drill-Uni
The ECU-Drill-Uni is optimally suited for universal use due to its geometry and coating. Steel, stainless steel and cast iron can be drilled economically and reliably. The ECU-Drill-Uni is available as a coated version for both internal and external coolant supply.
Ausgewählte Filter:
- 4xD Drilling depth xD
- 20xD Drilling depth xD
- 16.0 Shank diameter (d2)
- innere Kühlmittelzufuhr Cooling
- ECU-Drill-Uni family
-
Product Family
-
Diameter (d1)
-
-
Number of cutting edges (z)
-
Tip angle
-
Product category
-
Bore tolerance
(10)
(10)
(10)-
ECU-Drill-Uni
d1: 14,2 mm; d2: 16 mm; l1: 115 mm; l2: 65 mm; l3: 51 mm; z: 2 ; internal cooling; SCD351-1420-2-2-140HA04-HP765
Bestellnummer: 30421934
sofort lieferbar -
ECU-Drill-Uni
d1: 14,5 mm; d2: 16 mm; l1: 115 mm; l2: 65 mm; l3: 51 mm; z: 2 ; internal cooling; SCD351-1450-2-2-140HA04-HP765
Bestellnummer: 30421935
sofort lieferbar -
ECU-Drill-Uni
d1: 14,8 mm; d2: 16 mm; l1: 115 mm; l2: 65 mm; l3: 51 mm; z: 2 ; internal cooling; SCD351-1480-2-2-140HA04-HP765
Bestellnummer: 30421936
sofort lieferbar -
ECU-Drill-Uni
d1: 15 mm; d2: 16 mm; l1: 115 mm; l2: 65 mm; l3: 51 mm; z: 2 ; internal cooling; SCD351-1500-2-2-140HA04-HP765
Bestellnummer: 30421937
sofort lieferbar -
ECU-Drill-Uni
d1: 15,1 mm; d2: 16 mm; l1: 115 mm; l2: 65 mm; l3: 51 mm; z: 2 ; internal cooling; SCD351-1510-2-2-140HA04-HP765
Bestellnummer: 30421938
sofort lieferbar -
ECU-Drill-Uni
d1: 15,2 mm; d2: 16 mm; l1: 115 mm; l2: 65 mm; l3: 51 mm; z: 2 ; internal cooling; SCD351-1520-2-2-140HA04-HP765
Bestellnummer: 30421939
sofort lieferbar -
ECU-Drill-Uni
d1: 15,5 mm; d2: 16 mm; l1: 115 mm; l2: 65 mm; l3: 51 mm; z: 2 ; internal cooling; SCD351-1550-2-2-140HA04-HP765
Bestellnummer: 30421941
sofort lieferbar -
ECU-Drill-Uni
d1: 15,8 mm; d2: 16 mm; l1: 115 mm; l2: 65 mm; l3: 51 mm; z: 2 ; internal cooling; SCD351-1580-2-2-140HA04-HP765
Bestellnummer: 30421943
sofort lieferbar -
ECU-Drill-Uni
d1: 16 mm; d2: 16 mm; l1: 115 mm; l2: 65 mm; l3: 51 mm; z: 2 ; internal cooling; SCD351-1600-2-2-140HA04-HP765
Bestellnummer: 30421944
sofort lieferbar -
ECU-Drill-Uni
d1: 15,7 mm; d2: 16 mm; l1: 115 mm; l2: 65 mm; l3: 51 mm; z: 2 ; internal cooling; SCD351-1570-2-2-140HA04-HP765
Bestellnummer: 30421942
kurzfristig nicht verfügbarBenachrichtigen Sie mich, wenn der Artikel wieder auf Lager ist
