Tritan-Drill-Uni-Plus
MAPAL has developed the Tritan-Drill-Uni-Plus specifically for high-speed machining of steel, stainless steel, cast iron, and aluminum. This three-edged solid carbide drill features an optimized groove profile. Thanks to its innovative coating and finely ground chip flutes, the Tritan-Drill-Uni-Plus offers higher wear resistance and ensures optimal chip removal with short chips even at the highest feed rates.
Selected facets:
- 5.0 Shank diameter (d2)
- 18.0 Shank diameter (d2)
- 5xD Drilling depth xD
- 10.0 Shank diameter (d2)
- Tritan-Drill-Uni-Plus family
-
Product Family
-
Diameter (d1)
-
-
Total length (l1)
-
Number of cutting edges (z)
-
Cooling
-
Tip angle
-
Product category
-
Bore tolerance
(13)
(13)
(13)
(13)-
Tritan-Drill-Uni-Plus
d1: 8,1 mm; d2: 10 mm; l1: 103 mm; l2: 61 mm; l3: 49 mm; z: 3; internal cooling; SCD631-0810-3-3-140HA05-HP358
Order number: 31037323
In Stock -
Tritan-Drill-Uni-Plus
d1: 8,5 mm; d2: 10 mm; l1: 103 mm; l2: 61 mm; l3: 49 mm; z: 3; internal cooling; SCD631-0850-3-3-140HA05-HP358
Order number: 31037327
In Stock -
Tritan-Drill-Uni-Plus
d1: 8,6 mm; d2: 10 mm; l1: 103 mm; l2: 61 mm; l3: 49 mm; z: 3; internal cooling; SCD631-0860-3-3-140HA05-HP358
Order number: 31037328
In Stock -
Tritan-Drill-Uni-Plus
d1: 8,8 mm; d2: 10 mm; l1: 103 mm; l2: 61 mm; l3: 49 mm; z: 3; internal cooling; SCD631-0880-3-3-140HA05-HP358
Order number: 31037330
In Stock -
Tritan-Drill-Uni-Plus
d1: 9 mm; d2: 10 mm; l1: 103 mm; l2: 61 mm; l3: 49 mm; z: 3; internal cooling; SCD631-0900-3-3-140HA05-HP358
Order number: 31037332
In Stock -
Tritan-Drill-Uni-Plus
d1: 9,3 mm; d2: 10 mm; l1: 103 mm; l2: 61 mm; l3: 49 mm; z: 3; internal cooling; SCD631-0930-3-3-140HA05-HP358
Order number: 31037335
In Stock -
Tritan-Drill-Uni-Plus
d1: 9,8 mm; d2: 10 mm; l1: 103 mm; l2: 61 mm; l3: 49 mm; z: 3; internal cooling; SCD631-0980-3-3-140HA05-HP358
Order number: 31037340
In Stock -
Tritan-Drill-Uni-Plus
d1: 9,9 mm; d2: 10 mm; l1: 103 mm; l2: 61 mm; l3: 49 mm; z: 3; internal cooling; SCD631-0990-3-3-140HA05-HP358
Order number: 31037341
In Stock -
Tritan-Drill-Uni-Plus
d1: 10 mm; d2: 10 mm; l1: 103 mm; l2: 61 mm; l3: 49 mm; z: 3; internal cooling; SCD631-1000-3-3-140HA05-HP358
Order number: 31037342
In Stock -
Tritan-Drill-Uni-Plus
d1: 17 mm; d2: 18 mm; l1: 143 mm; l2: 93 mm; l3: 71 mm; z: 3; internal cooling; SCD631-1700-3-3-140HA05-HP358
Order number: 31037382
In Stock -
Tritan-Drill-Uni-Plus
d1: 17,5 mm; d2: 18 mm; l1: 143 mm; l2: 93 mm; l3: 71 mm; z: 3; internal cooling; SCD631-1750-3-3-140HA05-HP358
Order number: 31037384
In Stock -
Tritan-Drill-Uni-Plus
d1: 18 mm; d2: 18 mm; l1: 143 mm; l2: 93 mm; l3: 71 mm; z: 3; internal cooling; SCD631-1800-3-3-140HA05-HP358
Order number: 31037386
In Stock -

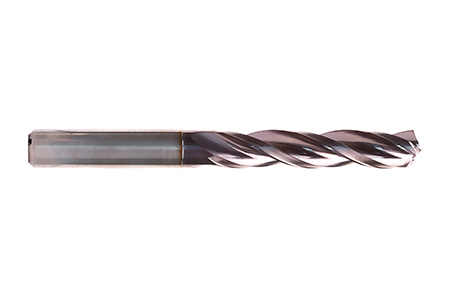

Tritan-Drill-Uni-Plus
d1: 9,5 mm; d2: 10 mm; l1: 103 mm; l2: 61 mm; l3: 49 mm; z: 3; internal cooling; SCD631-0950-3-3-140HA05-HP358
Order number: 31037337
currently out of stockInform me when article is back in stock
