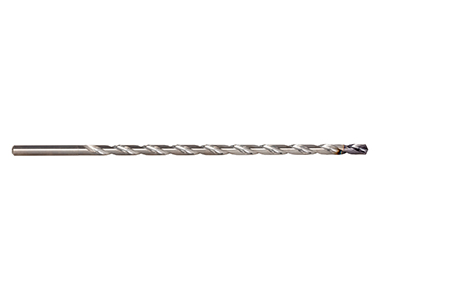

MEGA-Deep-Drill-Steel
The new MEGA-Deep-Drill-Steel is a deep drill for highly efficient deep drilling applications on steel and cast-iron materials. Due to its innovative geometrical and cutting material design, the deep drill is ideally adapted to high feed rates and maximum productivity in bore machining up to 40xD.
Selected facets:
- 4.0 Shank diameter (d2)
- 30xD Drilling depth xD
- 25.0 Drilling depth xD
- 5.0 Shank diameter (d2)
- 12.0 Shank diameter (d2)
- MEGA-Deep-Drill-Steel family
-
Product Family
-
Diameter (d1)
-
-
Number of cutting edges (z)
-
Cooling
-
Tip angle
-
Bore tolerance
(14)
(14)-
MEGA-Deep-Drill-Steel
d1: 3 mm; d2: 4 mm; l1: 125 mm; l2: 93 mm; l3: 87,5 mm; z: 2; internal cooling; SCD701-0300-2-4-137HA25-HP400
Order number: 31459751
In Stock -
MEGA-Deep-Drill-Steel
d1: 3 mm; d2: 4 mm; l1: 143 mm; l2: 111 mm; l3: 105 mm; z: 2; internal cooling; SCD701-0300-2-4-137HA30-HP400
Order number: 31459766
In Stock -
MEGA-Deep-Drill-Steel
d1: 3,5 mm; d2: 4 mm; l1: 138 mm; l2: 106 mm; l3: 100 mm; z: 2; internal cooling; SCD701-0350-2-4-137HA25-HP400
Order number: 31459752
In Stock -
MEGA-Deep-Drill-Steel
d1: 3,5 mm; d2: 4 mm; l1: 158 mm; l2: 126 mm; l3: 120 mm; z: 2; internal cooling; SCD701-0350-2-4-137HA30-HP400
Order number: 31459767
In Stock -
MEGA-Deep-Drill-Steel
d1: 4 mm; d2: 4 mm; l1: 138 mm; l2: 106 mm; l3: 100 mm; z: 2; internal cooling; SCD701-0400-2-4-137HA25-HP400
Order number: 31459753
In Stock -
MEGA-Deep-Drill-Steel
d1: 4 mm; d2: 4 mm; l1: 158 mm; l2: 126 mm; l3: 120 mm; z: 2; internal cooling; SCD701-0400-2-4-137HA30-HP400
Order number: 31459768
In Stock -
MEGA-Deep-Drill-Steel
d1: 4,5 mm; d2: 5 mm; l1: 152 mm; l2: 120 mm; l3: 112,5 mm; z: 2; internal cooling; SCD701-0450-2-4-137HA25-HP400
Order number: 31459754
In Stock -
MEGA-Deep-Drill-Steel
d1: 4,5 mm; d2: 5 mm; l1: 174 mm; l2: 142 mm; l3: 135 mm; z: 2; internal cooling; SCD701-0450-2-4-137HA30-HP400
Order number: 31459769
In Stock -
MEGA-Deep-Drill-Steel
d1: 5 mm; d2: 5 mm; l1: 165 mm; l2: 133 mm; l3: 125 mm; z: 2; internal cooling; SCD701-0500-2-4-137HA25-HP400
Order number: 31459755
In Stock -
MEGA-Deep-Drill-Steel
d1: 5 mm; d2: 5 mm; l1: 190 mm; l2: 158 mm; l3: 150 mm; z: 2; internal cooling; SCD701-0500-2-4-137HA30-HP400
Order number: 31459770
In Stock -
MEGA-Deep-Drill-Steel
d1: 11 mm; d2: 12 mm; l1: 341 mm; l2: 292 mm; l3: 275 mm; z: 2; internal cooling; SCD701-1100-2-4-137HA25-HP400
Order number: 31459762
In Stock -
MEGA-Deep-Drill-Steel
d1: 11 mm; d2: 12 mm; l1: 396 mm; l2: 347 mm; l3: 330 mm; z: 2; internal cooling; SCD701-1100-2-4-137HA30-HP400
Order number: 31459778
In Stock -
MEGA-Deep-Drill-Steel
d1: 12 mm; d2: 12 mm; l1: 367 mm; l2: 318 mm; l3: 300 mm; z: 2; internal cooling; SCD701-1200-2-4-137HA25-HP400
Order number: 31459763
In Stock -
MEGA-Deep-Drill-Steel
d1: 12 mm; d2: 12 mm; l1: 427 mm; l2: 378 mm; l3: 360 mm; z: 2; internal cooling; SCD701-1200-2-4-137HA30-HP400
Order number: 31459779
In Stock
