MEGA-Deep-Drill-Steel

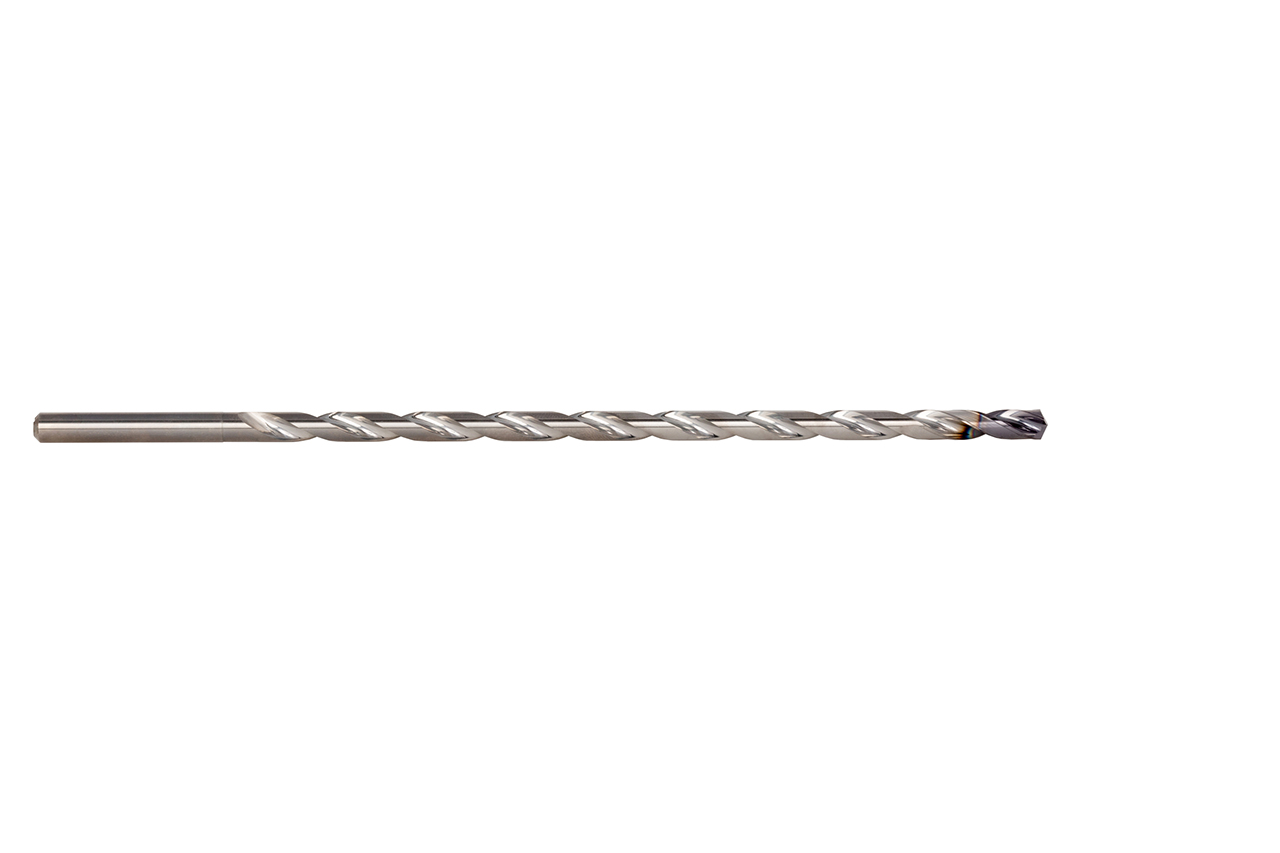

  • Product image MEGA-Deep-Drill-Steel

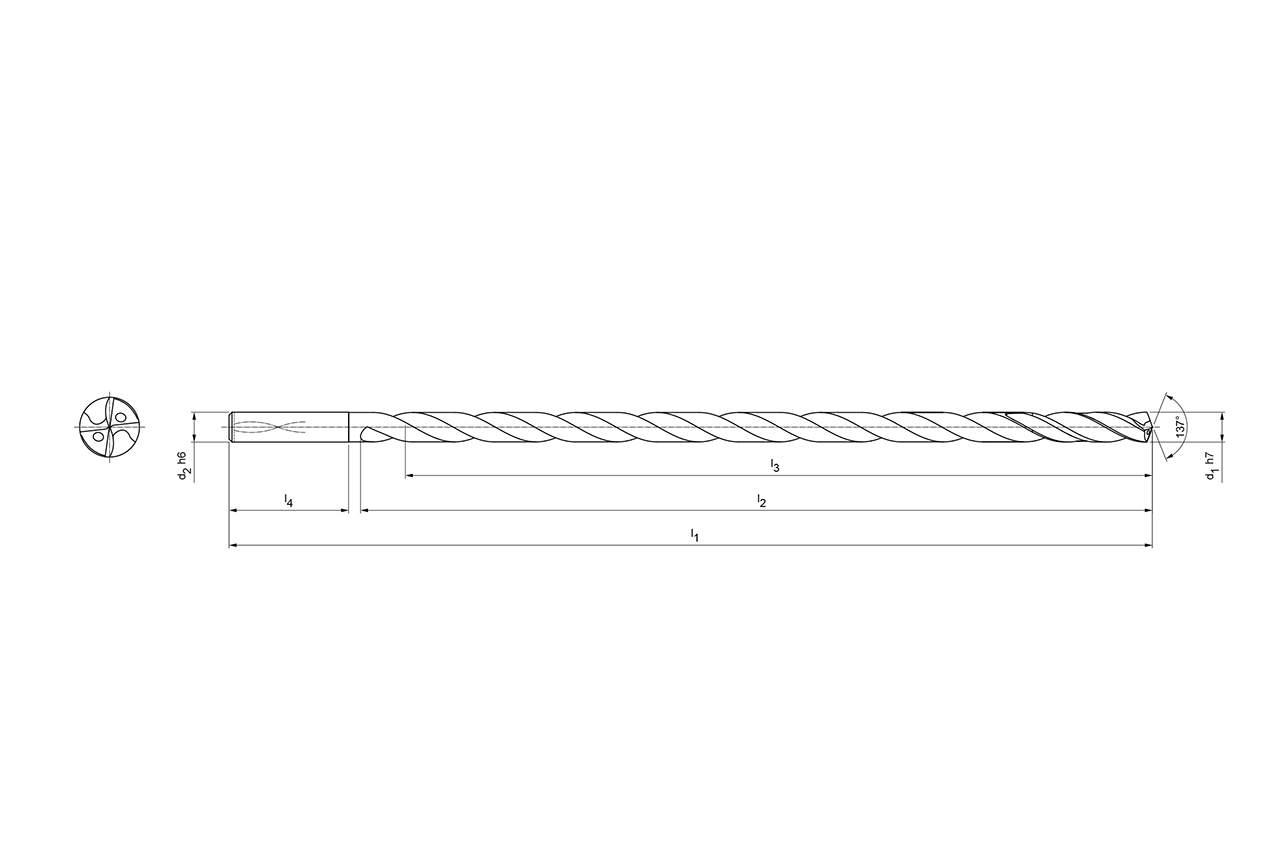

  • Technical drawing MEGA-Deep-Drill-Steel

Diameter d1 (mm)

3.5

Your unit price

*Login required

Article

31459752

Quantity

Added to Your Shopping Cart

Product description

The new MEGA-Deep-Drill-Steel is a deep drill for highly efficient deep drilling applications on steel and cast-iron materials. Due to its innovative geometrical and cutting material design, the deep drill is ideally adapted to high feed rates and maximum productivity in bore machining up to 40xD.

Material suitability

Technical specifications

Cutting material
MX18
Drilling depth
25
d1
3.5   mm
d2
4   mm
l1
138   mm
l2
106   mm
l3
100   mm
l4
28   mm
Cooling
internal cooling
Number of cutting edges (z)
2
Shank tolerance
h6
Bore tolerance
≥ IT 9
Shank type
HA
Tip angle
137   °
Material group
R6

Downloads

Technical drawing in tif
31459752_608014931-000-00-ED1.TIF
Technical drawing in dxf
31459752_608014931-000-00-ED1.DXF
3D envelope in stp
31459752_608014932-000-00-E43.STP
Brochure MEGA-Deep-Drill-Steel
31459752_MAPAL_MEGA-Deep-Drill-Steel_EN (2).pdf
