MEGA-Speed-Drill-Uni
The cutting edges of the MEGA-Speed-Drill-Uni are unequally split. In addition, the drill has three guide chamfers. This prevents vibrations and reduces friction. The highly polished flutes guarantee optimum chip flow.
Selected facets:
- 14.0 Shank diameter (d2)
- 8xD Drilling depth xD
- 12xD Drilling depth xD
- 3xD Drilling depth xD
- MEGA-Speed-Drill-Uni family
-
Product Family
-
Diameter (d1)
-
-
Number of cutting edges (z)
-
Cooling
-
Tip angle
-
Product category
-
Bore tolerance
(7)
(7)-
MEGA-Speed-Drill-Uni
d1: 12,5 mm; d2: 14 mm; l1: 178 mm; l2: 133 mm; l3: 112 mm; z: 2 ; innere Kühlmittelzufuhr; SCD221-1250-2-3-135HA08-HP374
Order number: 30404095
In Stock -
MEGA-Speed-Drill-Uni
d1: 12,5 mm; d2: 14 mm; l1: 107 mm; l2: 60 mm; l3: 43 mm; z: 2 ; innere Kühlmittelzufuhr; SCD221-1250-2-3-135HA03-HP374
Order number: 30404222
In Stock -

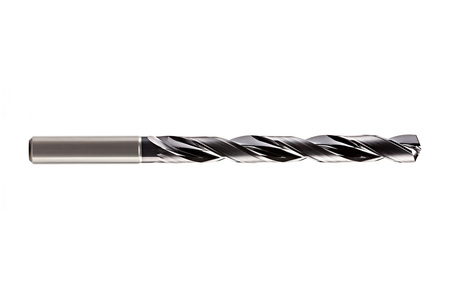

MEGA-Speed-Drill-Uni
d1: 13 mm; d2: 14 mm; l1: 178 mm; l2: 133 mm; l3: 112 mm; z: 2 ; innere Kühlmittelzufuhr; SCD221-1300-2-3-135HA08-HP374
Order number: 30404097
In Stock -
MEGA-Speed-Drill-Uni
d1: 13 mm; d2: 14 mm; l1: 107 mm; l2: 60 mm; l3: 43 mm; z: 2 ; innere Kühlmittelzufuhr; SCD221-1300-2-3-135HA03-HP374
Order number: 30404224
In Stock -

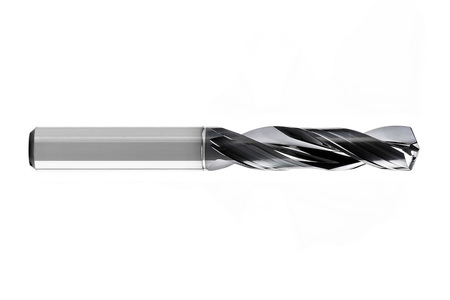

MEGA-Speed-Drill-Uni
d1: 13,5 mm; d2: 14 mm; l1: 107 mm; l2: 60 mm; l3: 43 mm; z: 2 ; innere Kühlmittelzufuhr; SCD221-1350-2-3-135HA03-HP374
Order number: 30404225
In Stock -
MEGA-Speed-Drill-Uni
d1: 13,5 mm; d2: 14 mm; l1: 178 mm; l2: 133 mm; l3: 112 mm; z: 2 ; innere Kühlmittelzufuhr; SCD221-1350-2-3-135HA08-HP374
Order number: 30404098
In Stock -
MEGA-Speed-Drill-Uni
d1: 14 mm; d2: 14 mm; l1: 107 mm; l2: 60 mm; l3: 43 mm; z: 2 ; innere Kühlmittelzufuhr; SCD221-1400-2-3-135HA03-HP374
Order number: 30404227
In Stock
