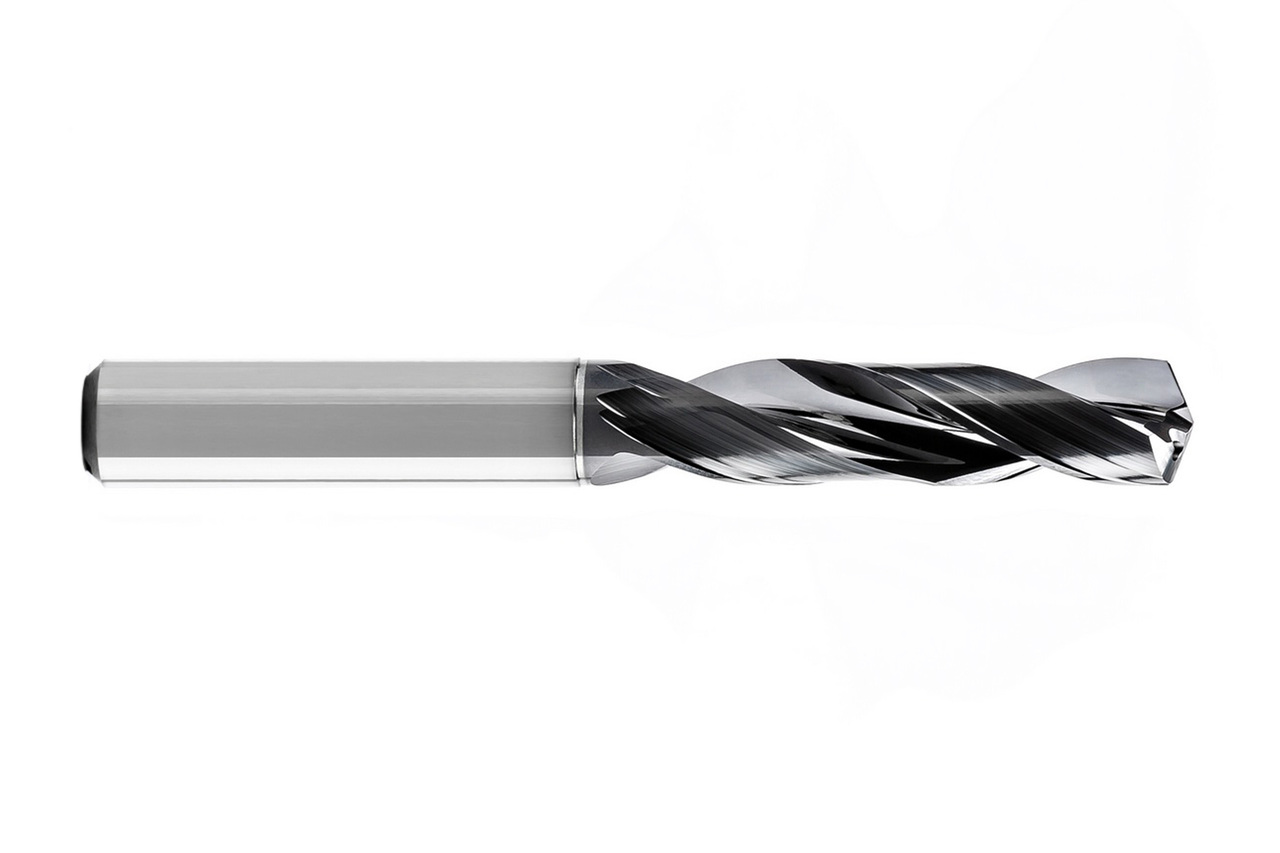

MEGA-Speed-Drill-Uni
Diameter d1 (mm)
13.5
Your unit price
*Login requiredWe recommend:
Product description
The cutting edges of the MEGA-Speed-Drill-Uni are unequally split. In addition, the drill has three guide chamfers. This prevents vibrations and reduces friction. The highly polished flutes guarantee optimum chip flow.
Technical specifications
- Cutting material
- HP374
- Product class
- Expert-Line
- Drilling depth
- 3xD
- d1
- 13.5 mm
- d2
- 14 mm
- l1
- 107 mm
- l2
- 60 mm
- l3
- 43 mm
- l4
- 45 mm
- Kühlmittelaustritt
- innere Kühlmittelzufuhr
- Anzahl Schneiden (z)
- 2
- Schafttoleranz
- h6
- Bohrungstoleranz
- ≥ IT 9
- Schaftform
- HA
- Spitzenwinkel
- 135 °
- Seitenspanwinkel
- 30 °
- Materialgruppe
- R8
Downloads

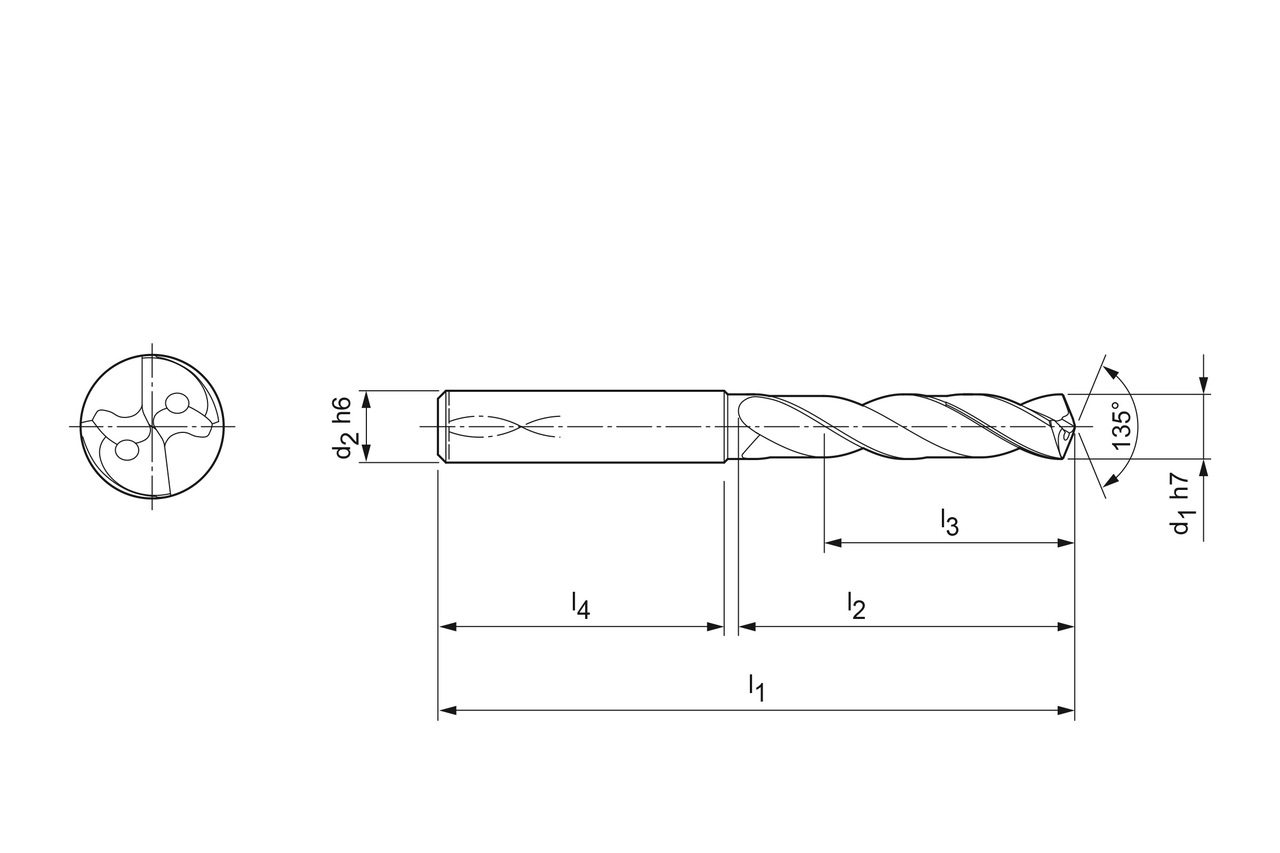

- Technische Zeichnung in dxf
- 30404225_607883761-000-00-ED1-MM.DXF
- Technische Zeichnung in pdf
- 30404225_607883761-000-00-ED1-MM.PDF
- Technische Zeichnung in tif
- 30404225_607883761-000-00-ED1-MM.TIF
- 3D Hüllkontur in stp
- 30404225_607883762-000-00-E43.STP
- Cutting data recommendations
- 30404225_MEGA-Speed-Drill-Uni_EN.pdf
- Brochure
- 30404225_MAPAL_MEGA-Speed-Drill__EN.pdf
