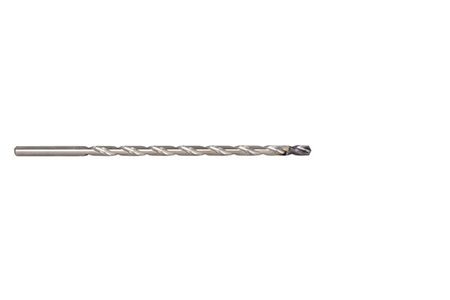

MEGA-Deep-Drill-Steel
The new MEGA-Deep-Drill-Steel is a deep drill for highly efficient deep drilling applications on steel and cast-iron materials. Due to its innovative geometrical and cutting material design, the deep drill is ideally adapted to high feed rates and maximum productivity in bore machining up to 40xD.
Selected facets:
- 6xD Drilling depth xD
- 16.0 Shank diameter (d2)
- 4.0 Shank diameter (d2)
- 20xD Drilling depth xD
- MEGA-Deep-Drill-Steel family
-
Product Family
-
Diameter (d1)
-
-
Number of cutting edges (z)
-
Cooling
-
Tip angle
-
Bore tolerance
(5)
(5)-
MEGA-Deep-Drill-Steel
d1: 3 mm; d2: 4 mm; l1: 108 mm; l2: 76 mm; l3: 70 mm; z: 2; internal cooling; SCD701-0300-2-4-137HA20-HP400
Order number: 31459733
In Stock -
MEGA-Deep-Drill-Steel
d1: 3,5 mm; d2: 4 mm; l1: 118 mm; l2: 86 mm; l3: 80 mm; z: 2; internal cooling; SCD701-0350-2-4-137HA20-HP400
Order number: 31459734
In Stock -
MEGA-Deep-Drill-Steel
d1: 15 mm; d2: 16 mm; l1: 375 mm; l2: 323 mm; l3: 300 mm; z: 2; internal cooling; SCD701-1500-2-4-137HA20-HP400
Order number: 31459749
In Stock -
MEGA-Deep-Drill-Steel
d1: 16 mm; d2: 16 mm; l1: 396 mm; l2: 344 mm; l3: 320 mm; z: 2; internal cooling; SCD701-1600-2-4-137HA20-HP400
Order number: 31459750
In Stock -
MEGA-Deep-Drill-Steel
d1: 4 mm; d2: 4 mm; l1: 118 mm; l2: 86 mm; l3: 80 mm; z: 2; internal cooling; SCD701-0400-2-4-137HA20-HP400
Order number: 31459735
currently out of stockInform me when article is back in stock
