MEGA-Deep-Drill-Steel
Diameter d1 (mm)
3.0
Your unit price
*Login requiredProduct description

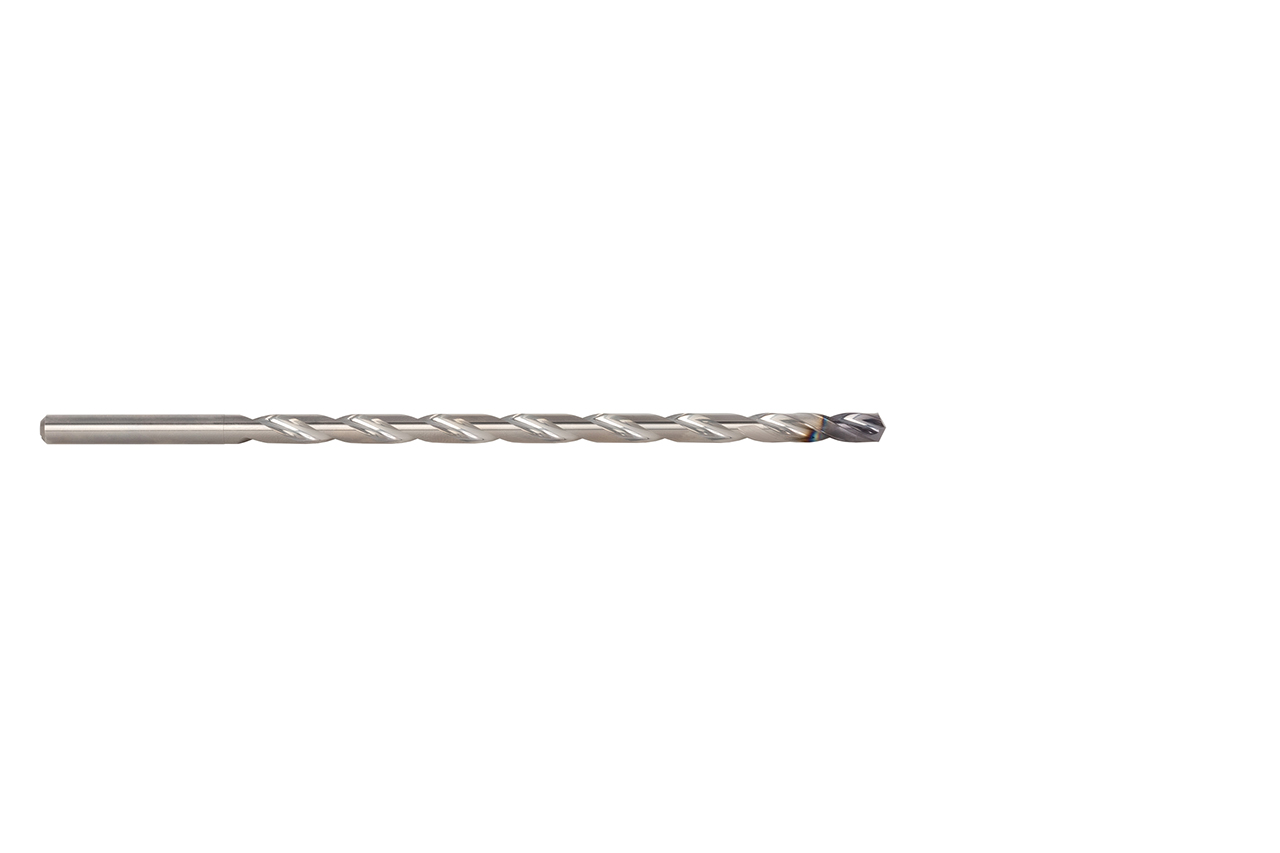

The new MEGA-Deep-Drill-Steel is a deep drill for highly efficient deep drilling applications on steel and cast-iron materials. Due to its innovative geometrical and cutting material design, the deep drill is ideally adapted to high feed rates and maximum productivity in bore machining up to 40xD.
Technical specifications
- Cutting material
- MX18
- Drilling depth
- 20xD

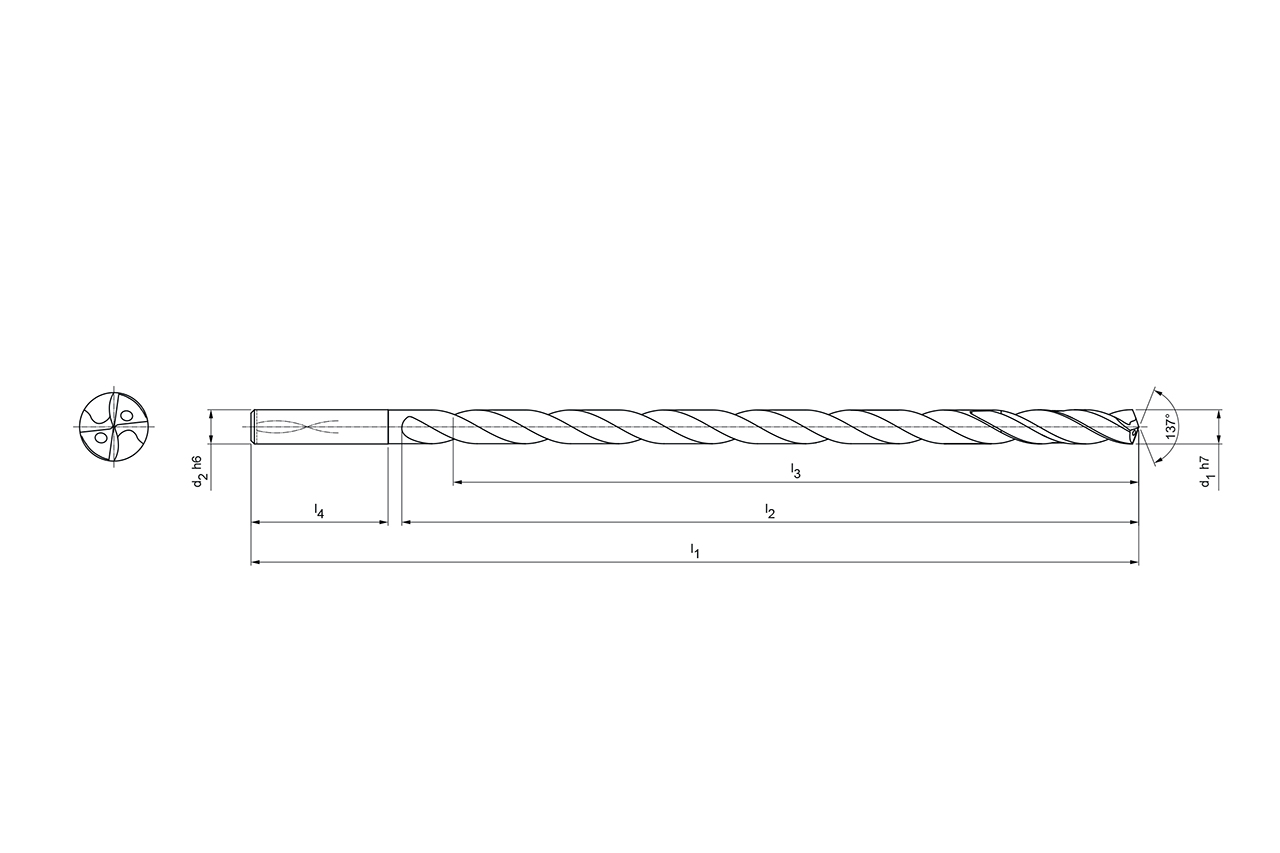

- d1
- 3 mm
- d2
- 4 mm
- l1
- 108 mm
- l2
- 76 mm
- l3
- 70 mm
- l4
- 28 mm
- Cooling
- internal cooling
- Number of cutting edges (z)
- 2
- Shank tolerance
- h6
- Bore tolerance
- ≥ IT 9
- Shank type
- HA
- Tip angle
- 137 °
- Material group
- R6
Downloads
- Technical drawing in tif
- 31459733_608014895-000-00-ED1.TIF
- Technical drawing in dxf
- 31459733_608014895-000-00-ED1.DXF
- 3D envelope in stp
- 31459733_608014896-000-00-E43.STP
- Brochure MEGA-Deep-Drill-Steel
- 31459733_MAPAL_MEGA-Deep-Drill-Steel_EN (2).pdf
