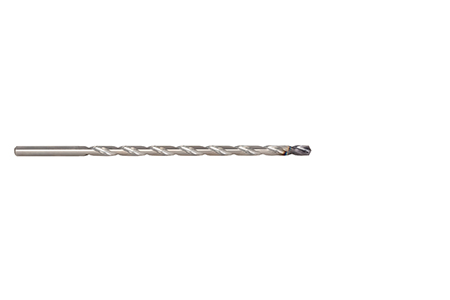

MEGA-Deep-Drill-Steel
The new MEGA-Deep-Drill-Steel is a deep drill for highly efficient deep drilling applications on steel and cast-iron materials. Due to its innovative geometrical and cutting material design, the deep drill is ideally adapted to high feed rates and maximum productivity in bore machining up to 40xD.
Selected facets:
- 6xD Drilling depth xD
- 20xD Drilling depth xD
- Tritan-Drill-Steel Product Family
- 8xD Drilling depth xD
- MEGA-Deep-Drill-Steel Product Family
- MEGA-Deep-Drill-Steel family
-
Product Family
-
Diameter (d1)
-
-
Number of cutting edges (z)
-
Cooling
-
Tip angle
-
Bore tolerance
(18)
(18)-
MEGA-Deep-Drill-Steel
d1: 3 mm; d2: 4 mm; l1: 108 mm; l2: 76 mm; l3: 70 mm; z: 2; internal cooling; SCD701-0300-2-4-137HA20-HP400
Order number: 31459733
In Stock -
MEGA-Deep-Drill-Steel
d1: 3,5 mm; d2: 4 mm; l1: 118 mm; l2: 86 mm; l3: 80 mm; z: 2; internal cooling; SCD701-0350-2-4-137HA20-HP400
Order number: 31459734
In Stock -
MEGA-Deep-Drill-Steel
d1: 4,5 mm; d2: 5 mm; l1: 129 mm; l2: 97 mm; l3: 90 mm; z: 2; internal cooling; SCD701-0450-2-4-137HA20-HP400
Order number: 31459736
In Stock -
MEGA-Deep-Drill-Steel
d1: 5 mm; d2: 5 mm; l1: 140 mm; l2: 108 mm; l3: 100 mm; z: 2; internal cooling; SCD701-0500-2-4-137HA20-HP400
Order number: 31459737
In Stock -
MEGA-Deep-Drill-Steel
d1: 5,5 mm; d2: 6 mm; l1: 159 mm; l2: 119 mm; l3: 110 mm; z: 2; internal cooling; SCD701-0550-2-4-137HA20-HP400
Order number: 31459738
In Stock -
MEGA-Deep-Drill-Steel
d1: 6 mm; d2: 6 mm; l1: 169 mm; l2: 129 mm; l3: 120 mm; z: 2; internal cooling; SCD701-0600-2-4-137HA20-HP400
Order number: 31459739
In Stock -
MEGA-Deep-Drill-Steel
d1: 6,5 mm; d2: 8 mm; l1: 191 mm; l2: 151 mm; l3: 140 mm; z: 2; internal cooling; SCD701-0650-2-4-137HA20-HP400
Order number: 31459740
In Stock -
MEGA-Deep-Drill-Steel
d1: 7 mm; d2: 8 mm; l1: 191 mm; l2: 151 mm; l3: 140 mm; z: 2; internal cooling; SCD701-0700-2-4-137HA20-HP400
Order number: 31459741
In Stock -
MEGA-Deep-Drill-Steel
d1: 8 mm; d2: 8 mm; l1: 212 mm; l2: 172 mm; l3: 160 mm; z: 2; internal cooling; SCD701-0800-2-4-137HA20-HP400
Order number: 31459742
In Stock -
MEGA-Deep-Drill-Steel
d1: 9 mm; d2: 10 mm; l1: 238 mm; l2: 194 mm; l3: 180 mm; z: 2; internal cooling; SCD701-0900-2-4-137HA20-HP400
Order number: 31459743
In Stock -
MEGA-Deep-Drill-Steel
d1: 10 mm; d2: 10 mm; l1: 259 mm; l2: 215 mm; l3: 200 mm; z: 2; internal cooling; SCD701-1000-2-4-137HA20-HP400
Order number: 31459744
In Stock -
MEGA-Deep-Drill-Steel
d1: 11 mm; d2: 12 mm; l1: 286 mm; l2: 237 mm; l3: 220 mm; z: 2; internal cooling; SCD701-1100-2-4-137HA20-HP400
Order number: 31459745
In Stock -
MEGA-Deep-Drill-Steel
d1: 12 mm; d2: 12 mm; l1: 307 mm; l2: 258 mm; l3: 240 mm; z: 2; internal cooling; SCD701-1200-2-4-137HA20-HP400
Order number: 31459746
In Stock -
MEGA-Deep-Drill-Steel
d1: 14 mm; d2: 14 mm; l1: 350 mm; l2: 301 mm; l3: 280 mm; z: 2; internal cooling; SCD701-1400-2-4-137HA20-HP400
Order number: 31459748
In Stock -
MEGA-Deep-Drill-Steel
d1: 15 mm; d2: 16 mm; l1: 375 mm; l2: 323 mm; l3: 300 mm; z: 2; internal cooling; SCD701-1500-2-4-137HA20-HP400
Order number: 31459749
In Stock
