ECU-Drill-Steel

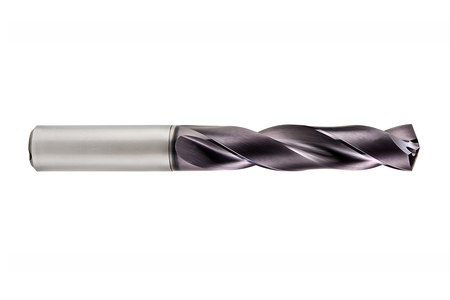

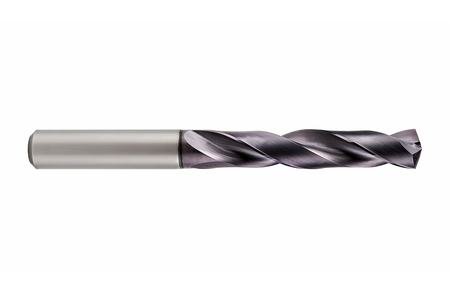

The double-edged solid carbide drill ECU-Drill-Steel offers a very good price-performance ratio and is the first choice for small to medium quantities.
Selected facets:
- 8.0 Shank diameter (d2)
- 6xD Drilling depth xD
- 30xD Drilling depth xD
- 25.0 Drilling depth xD
- 5xD Drilling depth xD
- ECU-Drill-Steel family
- 12xD Drilling depth xD
-
Product Family
-
Diameter (d1)
-
-
Number of cutting edges (z)
-
Tip angle
-
Product category
-
Bore tolerance
(50)
(50)-
ECU-Drill-Steel
d1: 7,3 mm; d2: 8 mm; l1: 91 mm; l2: 53 mm; l3: 43 mm; z: 2 ; internal cooling; STEELDRIL~SCD361-0730-2-2-140HA05-HP133
Order number: 30421574
In Stock -
ECU-Drill-Steel
d1: 7,4 mm; d2: 8 mm; l1: 91 mm; l2: 53 mm; l3: 43 mm; z: 2 ; internal cooling; STEELDRIL~SCD361-0740-2-2-140HA05-HP133
Order number: 30421575
In Stock -
ECU-Drill-Steel
d1: 7,4 mm; d2: 8 mm; l1: 146 mm; l2: 108 mm; l3: 94 mm; z: 2 ; internal cooling; ECUDRILL_~SCD361-0740-2-2-135HA12-HP133
Order number: 30677864
In Stock -
ECU-Drill-Steel
d1: 7,4 mm; d2: 8 mm; l1: 91 mm; l2: 53 mm; l3: 43 mm; z: 2 ; external cooling; ECUDRILL_~SCD360-0740-2-2-140HA05-HP133
Order number: 30568738
In Stock -
ECU-Drill-Steel
d1: 7,45 mm; d2: 8 mm; l1: 91 mm; l2: 53 mm; l3: 43 mm; z: 2 ; internal cooling; STEELDRIL~SCD361-0745-2-2-140HA05-HP133
Order number: 30421576
In Stock -
ECU-Drill-Steel
d1: 7,5 mm; d2: 8 mm; l1: 91 mm; l2: 53 mm; l3: 43 mm; z: 2 ; external cooling; ECUDRILL_~SCD360-0750-2-2-140HA05-HP133
Order number: 30568740
In Stock -
ECU-Drill-Steel
d1: 7,5 mm; d2: 8 mm; l1: 146 mm; l2: 108 mm; l3: 94 mm; z: 2 ; internal cooling; ECUDRILL_~SCD361-0750-2-2-135HA12-HP133
Order number: 30677865
In Stock -
ECU-Drill-Steel
d1: 7.5 mm; d2: 8 mm; l1: 91 mm; l2: 53 mm; l3: 43 mm; z: 2 ; internal cooling; SCD361-0750-2-2-140HA05-HP132
Order number: 30421577
In Stock -
ECU-Drill-Steel
d1: 7,6 mm; d2: 8 mm; l1: 91 mm; l2: 53 mm; l3: 43 mm; z: 2 ; internal cooling; STEELDRIL~SCD361-0760-2-2-140HA05-HP133
Order number: 30421579
In Stock -
ECU-Drill-Steel
d1: 7,6 mm; d2: 8 mm; l1: 91 mm; l2: 53 mm; l3: 43 mm; z: 2 ; external cooling; ECUDRILL_~SCD360-0760-2-2-140HA05-HP133
Order number: 30568741
In Stock -
ECU-Drill-Steel
d1: 7,7 mm; d2: 8 mm; l1: 91 mm; l2: 53 mm; l3: 43 mm; z: 2 ; external cooling; ECUDRILL_~SCD360-0770-2-2-140HA05-HP133
Order number: 30568742
In Stock -
ECU-Drill-Steel
d1: 7,7 mm; d2: 8 mm; l1: 91 mm; l2: 53 mm; l3: 43 mm; z: 2 ; internal cooling; STEELDRIL~SCD361-0770-2-2-140HA05-HP133
Order number: 30421580
In Stock -
ECU-Drill-Steel
d1: 7,8 mm; d2: 8 mm; l1: 91 mm; l2: 53 mm; l3: 43 mm; z: 2 ; external cooling; ECUDRILL_~SCD360-0780-2-2-140HA05-HP133
Order number: 30568743
In Stock -
ECU-Drill-Steel
d1: 7,8 mm; d2: 8 mm; l1: 146 mm; l2: 108 mm; l3: 94 mm; z: 2 ; internal cooling; ECUDRILL_~SCD361-0780-2-2-135HA12-HP133
Order number: 30677867
In Stock -
ECU-Drill-Steel
d1: 7.8 mm; d2: 8 mm; l1: 91 mm; l2: 53 mm; l3: 43 mm; z: 2 ; internal cooling; SCD361-0780-2-2-140HA05-HP132
Order number: 30421581
In Stock
