ECU-Drill-Steel
Diameter d1 (mm)
7.4
Your unit price
*Login requiredWe recommend:
Product description

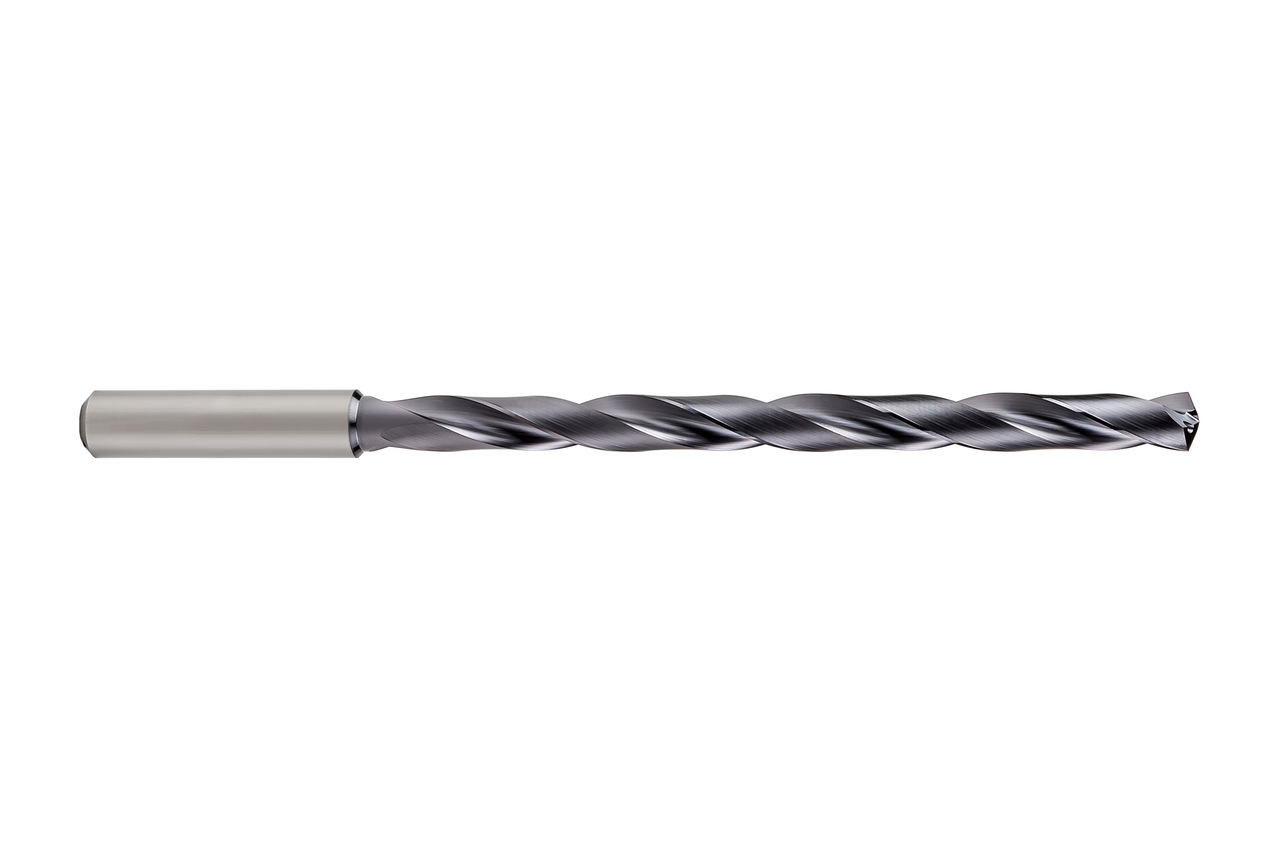

The double-edged solid carbide drill ECU-Drill-Steel offers a very good price-performance ratio and is the first choice for small to medium quantities.
Technical specifications
- Product class
- Basic-Line
- Drilling depth
- 12xD

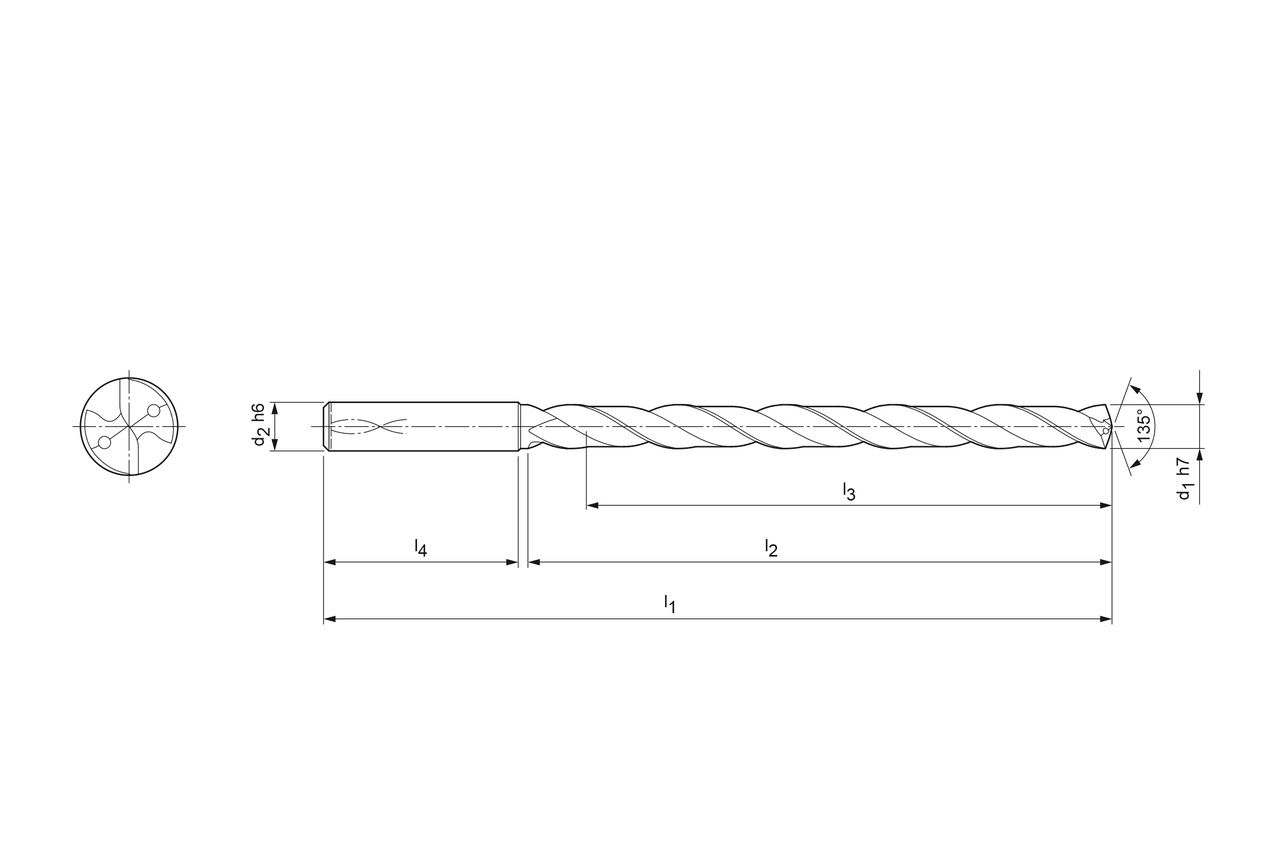

- d1
- 7.4 mm
- d2
- 8 mm
- l1
- 146 mm
- l2
- 108 mm
- l3
- 94 mm
- l4
- 36 mm
- Cooling
- internal cooling
- Number of cutting edges (z)
- 2
- Shank tolerance
- h6
- Bore tolerance
- ≥ IT 9
- Shank type
- HA
- Tip angle
- 135 °
- Side rake angle
- 30 °
- Material group
- RB
Downloads
- Technical drawing in dxf
- 30677864_607768725-000-01-ED1-MM.DXF
- Technical drawing in pdf
- 30677864_607768725-000-01-ED1-MM.PDF
- Technical drawing in tif
- 30677864_607768725-000-01-ED1-MM.TIF
- 3D envelope in stp
- 30677864_607768726-000-01-E43.STP
- Cutting data recommendations
- 30677864_ECU-Drill-Steel_EN.pdf
