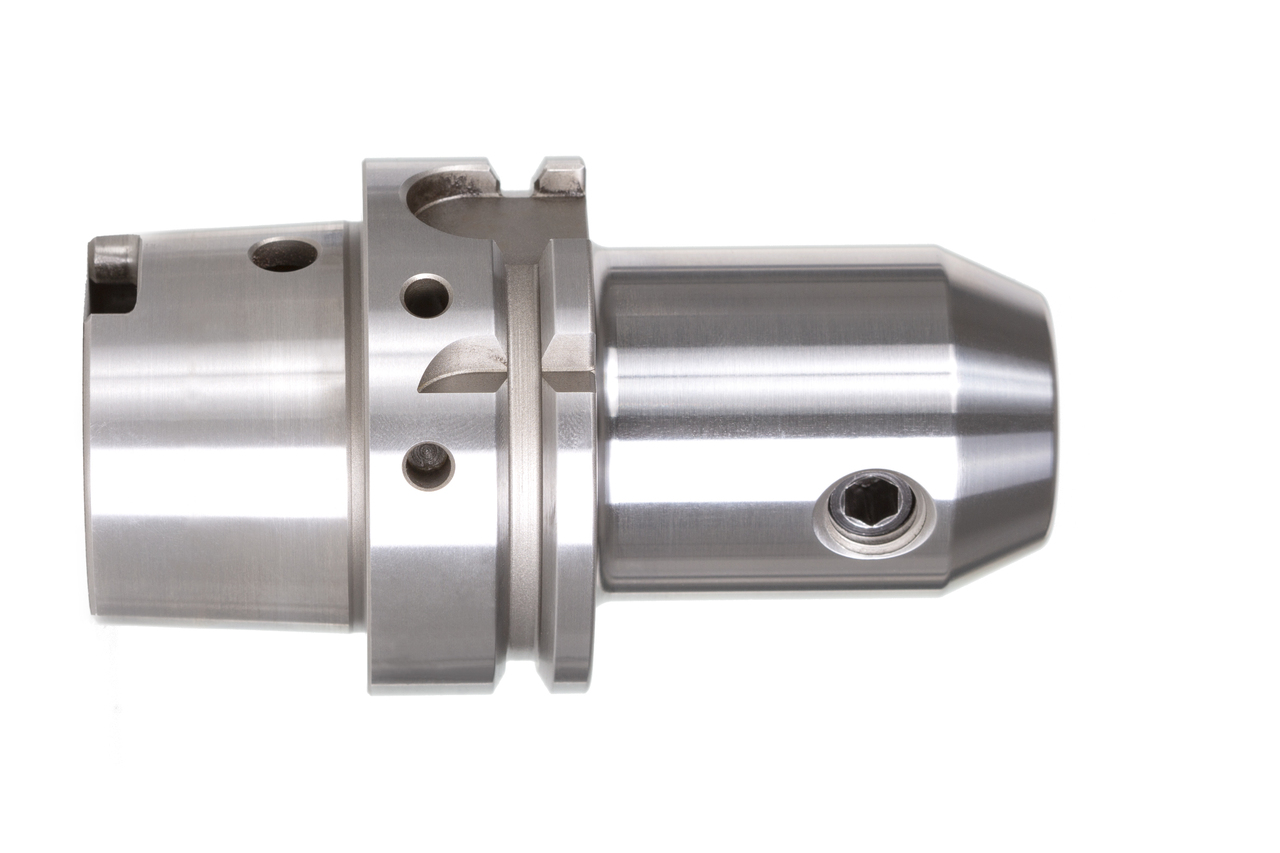

Chucks for cylindrical shanks
Diameter d1 (mm)
8.0
Your unit price
*Login requiredTechnical specifications
- Shank tolerance
- H5
- Machine connection
- HSK-A
- Size machine connection
- 63
- Technology
- Mechanical systems

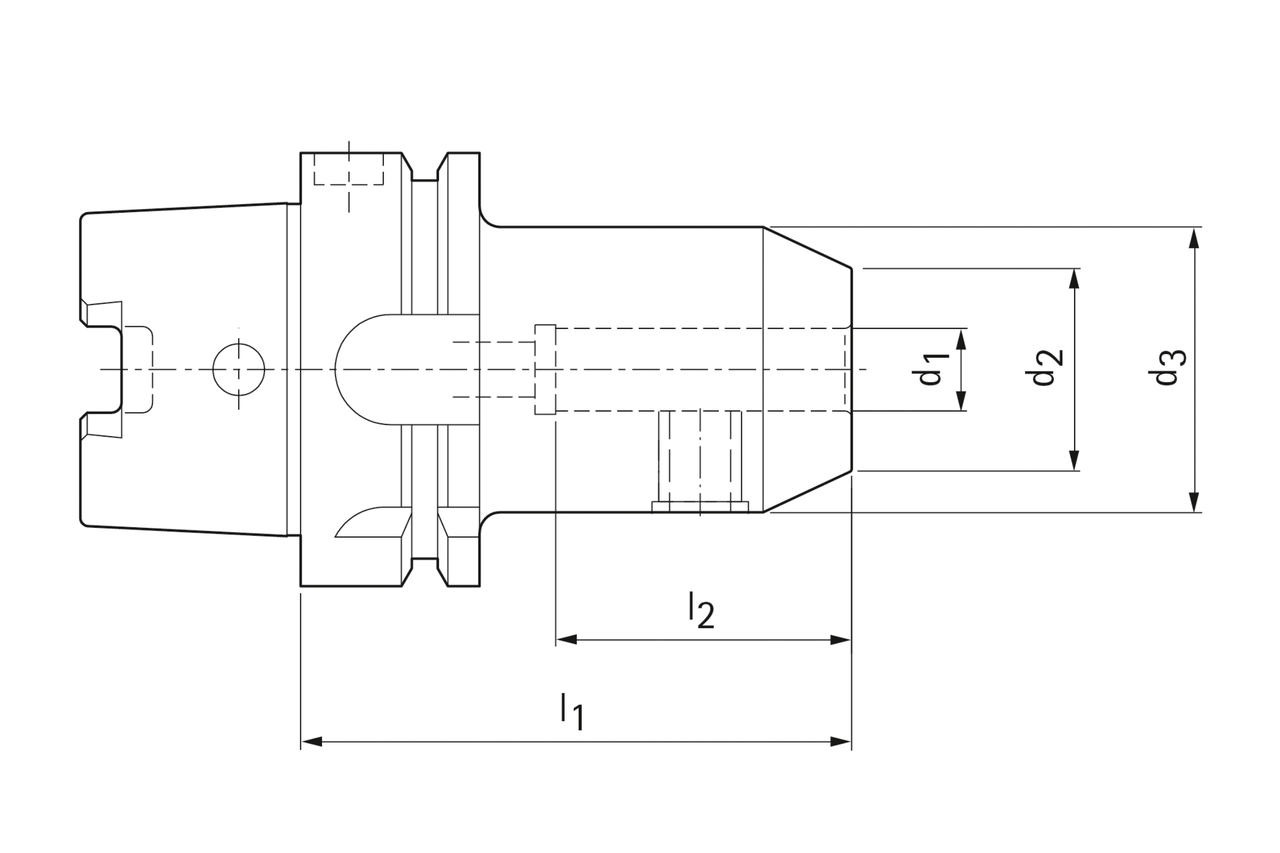

- d1
- 8 mm
- d2
- 19.5 mm
- d3
- 27.5 mm
- d4
- 0 mm
- d5
- 0 mm
- l1
- 65 mm
- l2
- 37 mm
- l3
- 0 mm
- l4
- 0 mm
- l5
- 0 mm
- Coolant supply
- internal
- Coolant outlet
- axial concentric
- Length adjustment
- without length adjustment
- Material group
- CM
Downloads
- 3D envelope in stp
- 30319204_606403831-000-00-E43.STP
- Technical drawing in tif
- 30319204_285733-000-01-ED1.TIF
- Technical drawing in tif
- 30319204_285733-001-01-ED1.TIF
