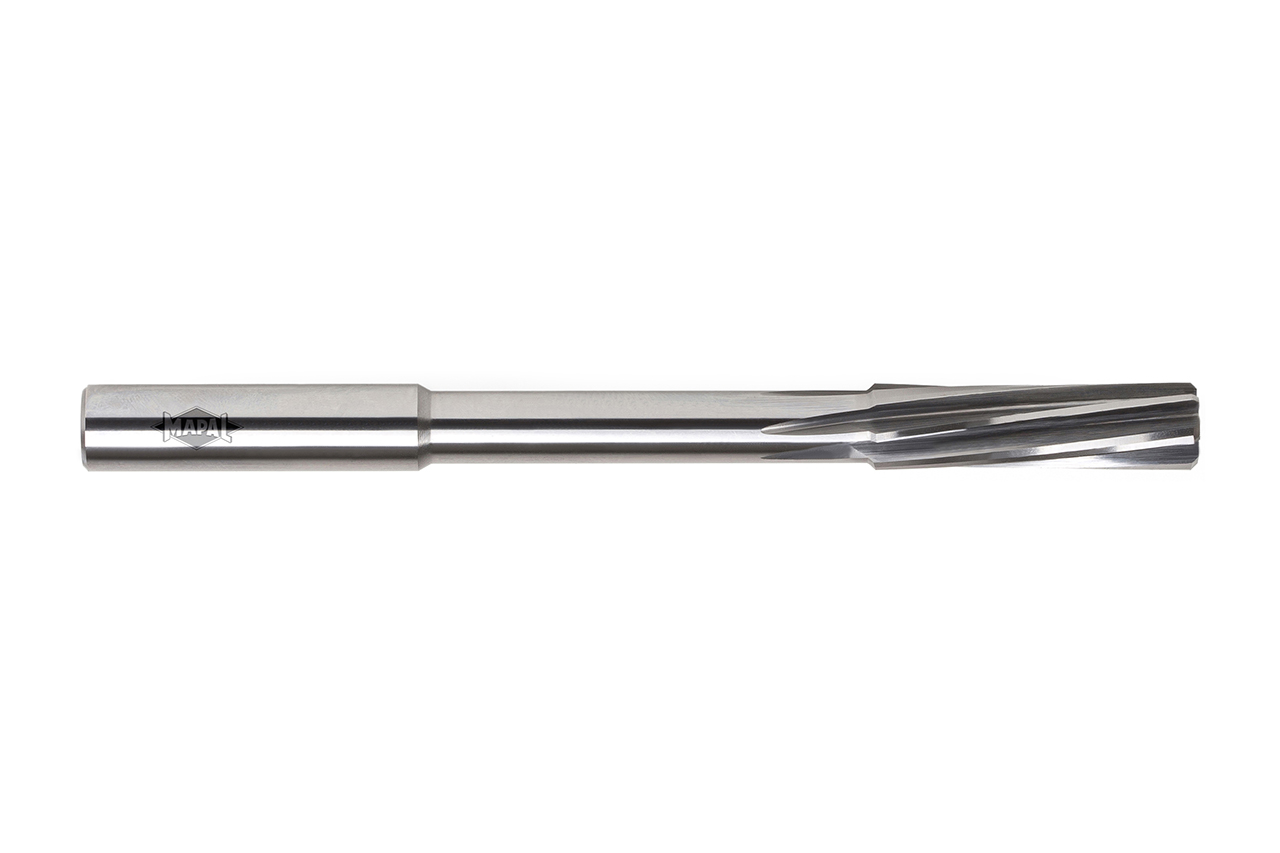

NC machine reamer
Diameter d1 (mm)
13.0
Your unit price
*Login requiredArticle
30712975
Quantity
Added to Your Shopping Cart
Product description
NC machine reamers are a particularly cost-effective option for the production of precise bores. While their performance data is below that of high-performance reamers, these tools are widely used because they are characterized by their quality and ease of use.
Technical specifications
- Connection type
- Cylindrical shank
- Trennstellengröße
- 12
- Bohrungsart
- Durchgangsbohrung

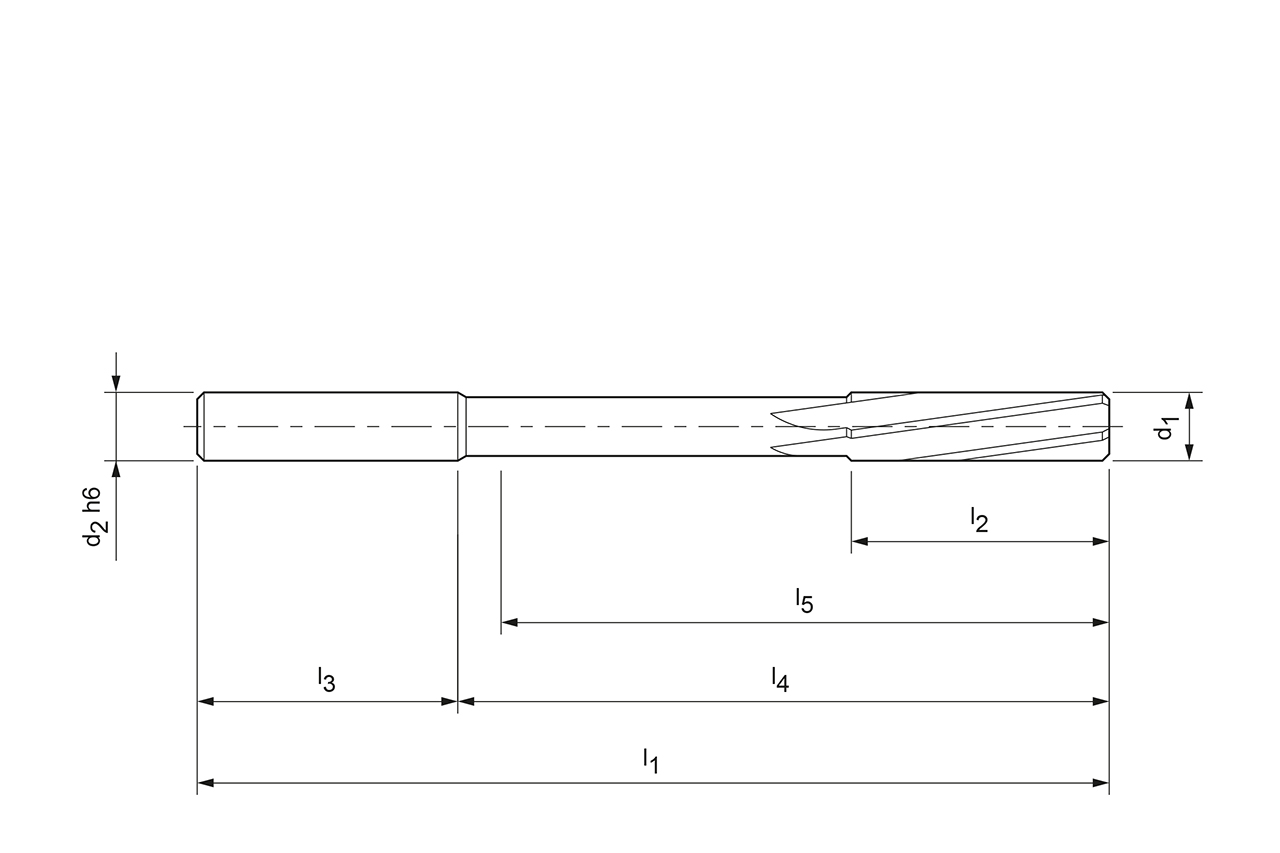

- d1
- 13 mm
- d2
- 12 mm
- l1
- 151 mm
- l2
- 44 mm
- l3
- 45 mm
- l4
- 0 mm
- l5
- 100 mm
- Toleranz
- H7
- Schneidstoff
- HU613
- Kühlmittelaustritt
- externe Kühlmittelzufuhr
- Anzahl Schneiden (z)
- 6
- Materialgruppe
- X4
- Spezifikation
- MDR510-8093-2BØ13H7-HU613
