HPR | HPR150

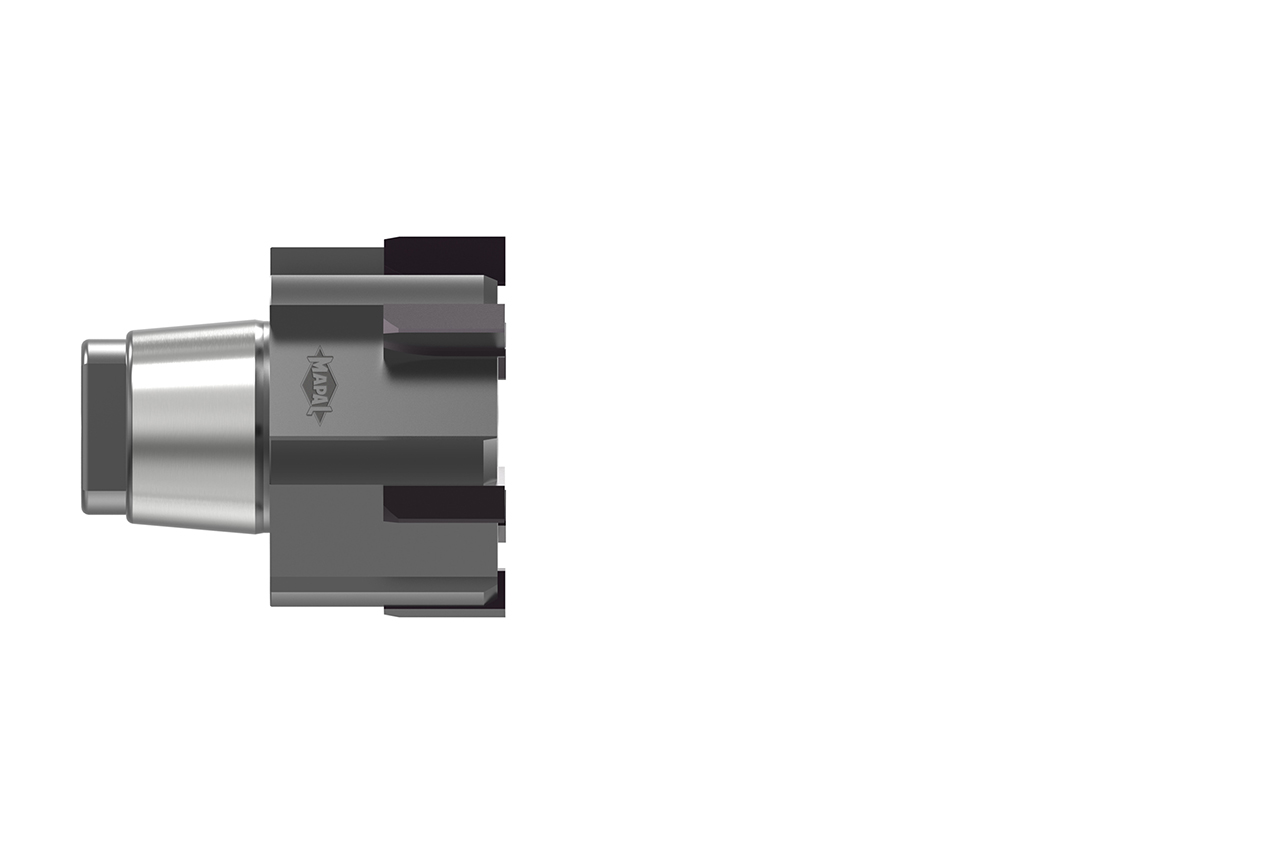

  • Product image HPR 1++

Durchmesser d1 (mm)

22.0

Your unit price

*Login erforderlich

Article

30098915

Quantity

Added to Your Shopping Cart

Product description

The HPR exchangeable head reamer by MAPAL offers precise concentricity and exchange accuracy of 3 μm, along with easy handling during tool head assembly and disassembly. The internal cooling system allows coolant to directly exit at the cutting edges, ensuring efficient cooling. Consequently, the HPR reamers are suitable for minimum quantity lubrication and provide high precision and tool life. The standard range includes various series for through-holes and blind holes.

Material suitability

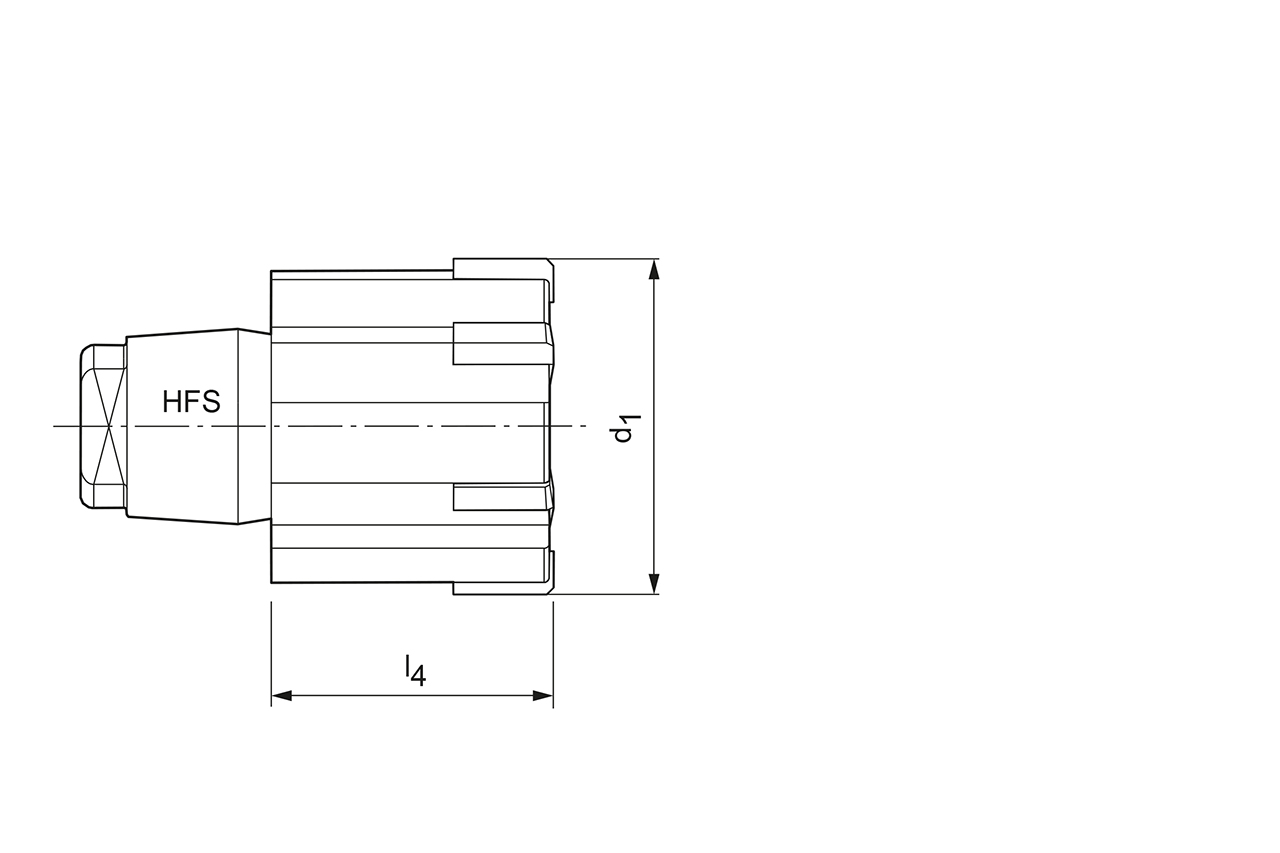

Technical specifications

Trennstelle
HFS
Trennstellengröße
12
Bohrungsart
Grundbohrung
d1
22   mm
l1
27   mm
l2
6   mm
l4
15.5   mm
l5
15.5   mm
Toleranz
H7
Kühlmittelaustritt
4
Anzahl Schneiden (z)
6
Materialgruppe
O
Spezifikation
HPR150Ø22.00H7ML2G-HP421

Downloads

3D Hüllkontur in stp
30098915_607748923-000-00-E43.STP
Technische Zeichnung in pdf
30098915_607877093-000-00-ED1.PDF
Technische Zeichnung in dxf
30098915_607877093-000-00-ED1.DXF
Technische Zeichnung in tif
30098915_607877093-000-00-ED1.TIF
Cutting data recommendations
30098915_HPR_EN.pdf
