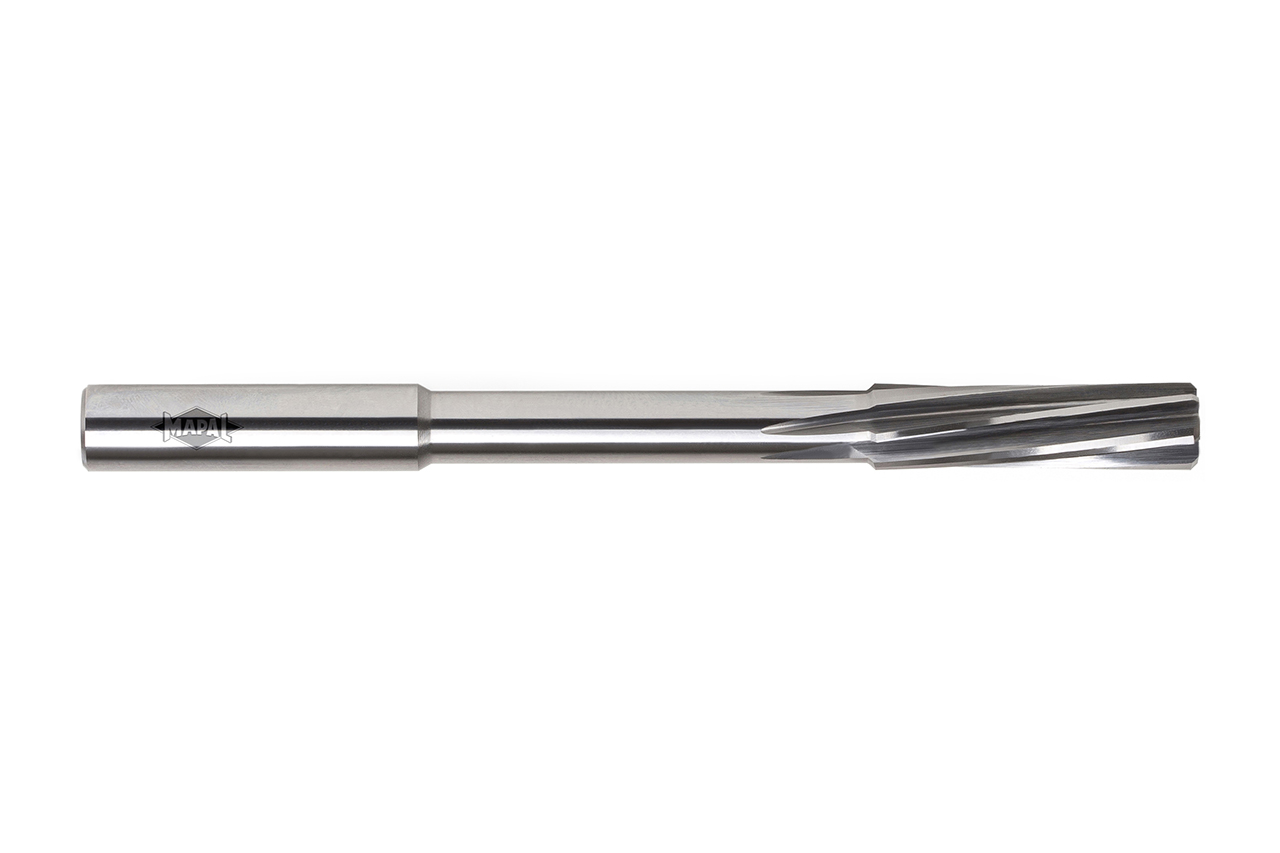

NC machine reamer

Diameter d1 (mm)

2.2

Your unit price

*Login required

Article

30949620

Quantity

Added to Your Shopping Cart

Inform me when article is back in stock

Product description

NC machine reamers are a particularly cost-effective option for the production of precise bores. While their performance data is below that of high-performance reamers, these tools are widely used because they are characterized by their quality and ease of use.

Material suitability

Technical specifications

Connection type: Cylindrical shank
HFS connection size: 0030
Type of bore: Through bore

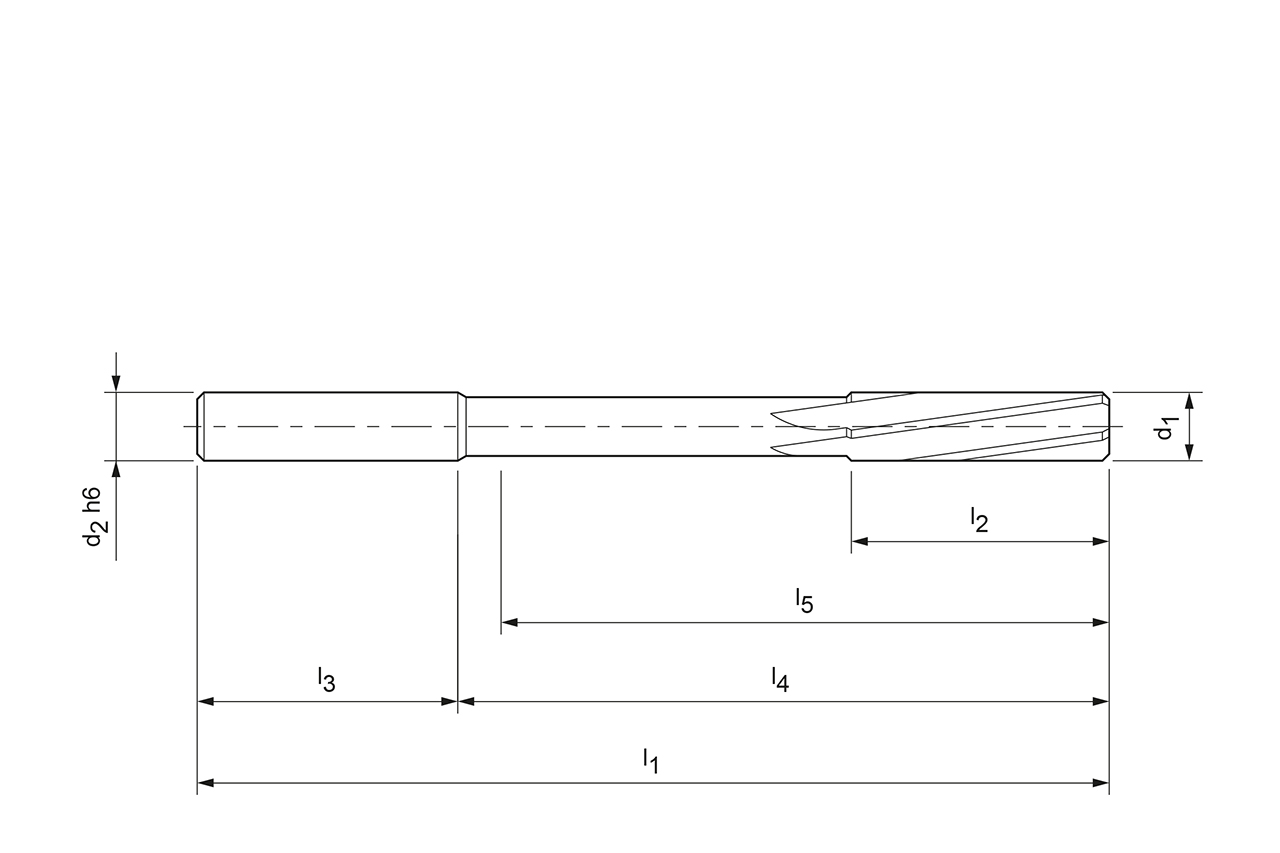

d1: 2.2 mm
d3: 3 mm
l1: 50 mm
l2: 12 mm
l3: 28 mm
l4: 0 mm
l5: 18.5 mm
Tolerance: H7
Cutting material: HU613
Number of cutting edges (z): 4
Material group: X4
