NC machine reamer

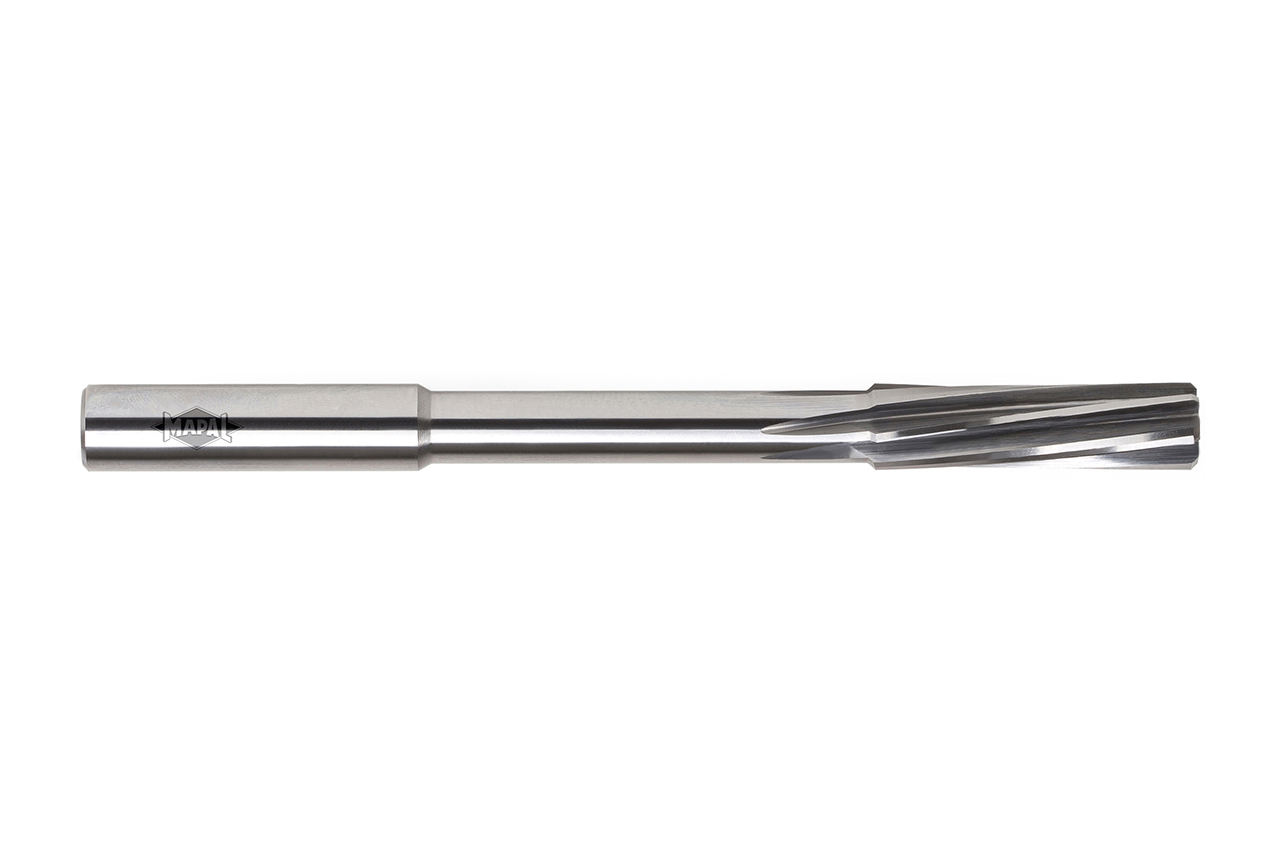

  • Product image NC machine reamer

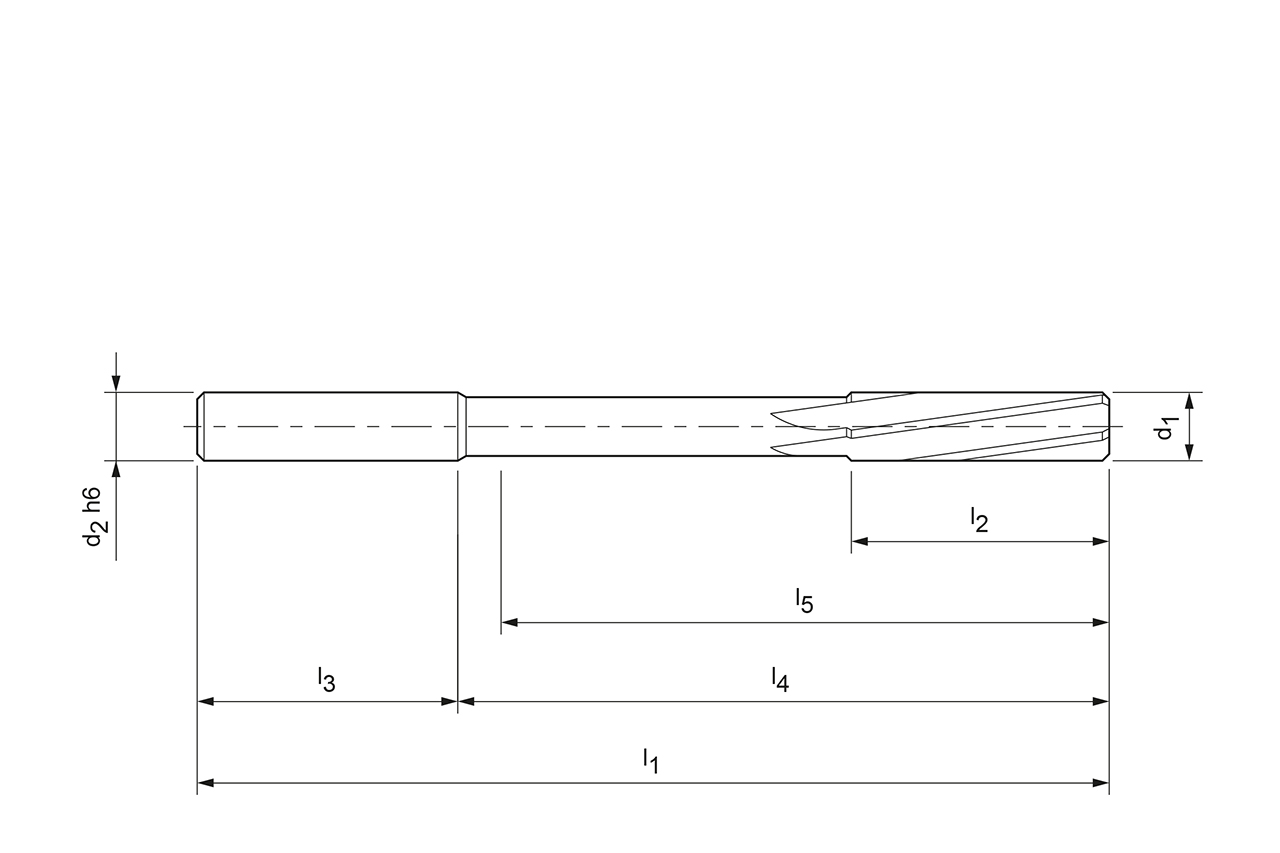

  • Technical drawing NC machine reamer

Diameter d1 (mm)

12.03

Your unit price

*Login required

Article

30935584

Quantity

Added to Your Shopping Cart

Product description

NC machine reamers are a particularly cost-effective option for the production of precise bores. While their performance data is below that of high-performance reamers, these tools are widely used because they are characterized by their quality and ease of use.

Material suitability

P
P1
highly suitable
P2
highly suitable
P3
highly suitable
P4
P5
highly suitable
P6
M
M1
suitable in some situations
M2
suitable in some situations
M3
K
K1
highly suitable
K2
highly suitable
K3
highly suitable
N
N1
highly suitable
N2
highly suitable
N3
N4
suitable in some situations
S
S1
suitable in some situations
S2
suitable in some situations
S3
suitable in some situations
S4
suitable in some situations
S5
suitable in some situations
H
H1
H2
H3

Technical specifications

Connection type
Cylindrical shank
Connection size
12
Type of bore
Through bore
d1
12.03   mm
d3
12   mm
l1
151   mm
l2
44   mm
l3
45   mm
l4
0   mm
l5
100   mm
Tolerance
+4
Cutting material
HU613
Number of cutting edges (z)
6
Material group
X4
Specification
MDR510-8093-2BØ12.03+4-HU613
