NC machine reamer

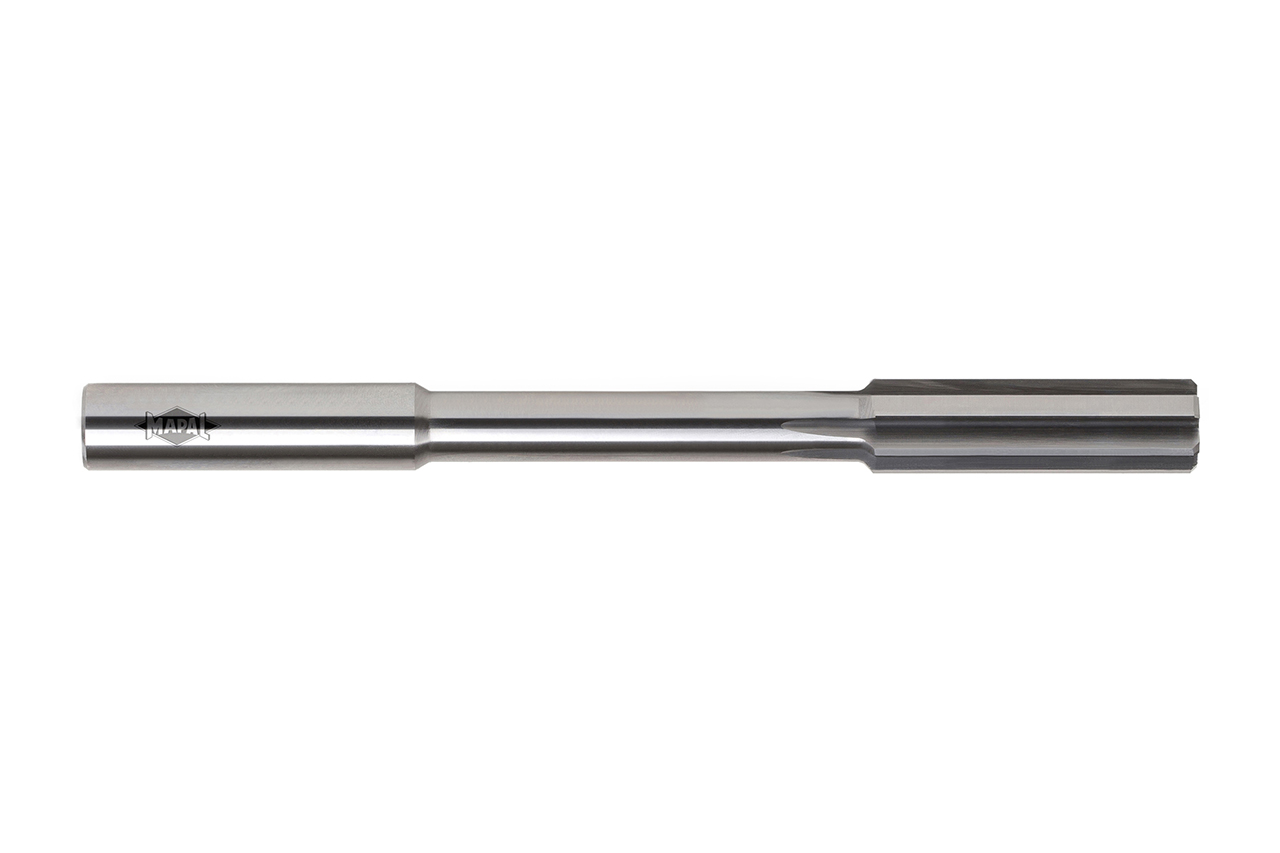

  • Product image NC machine reamer

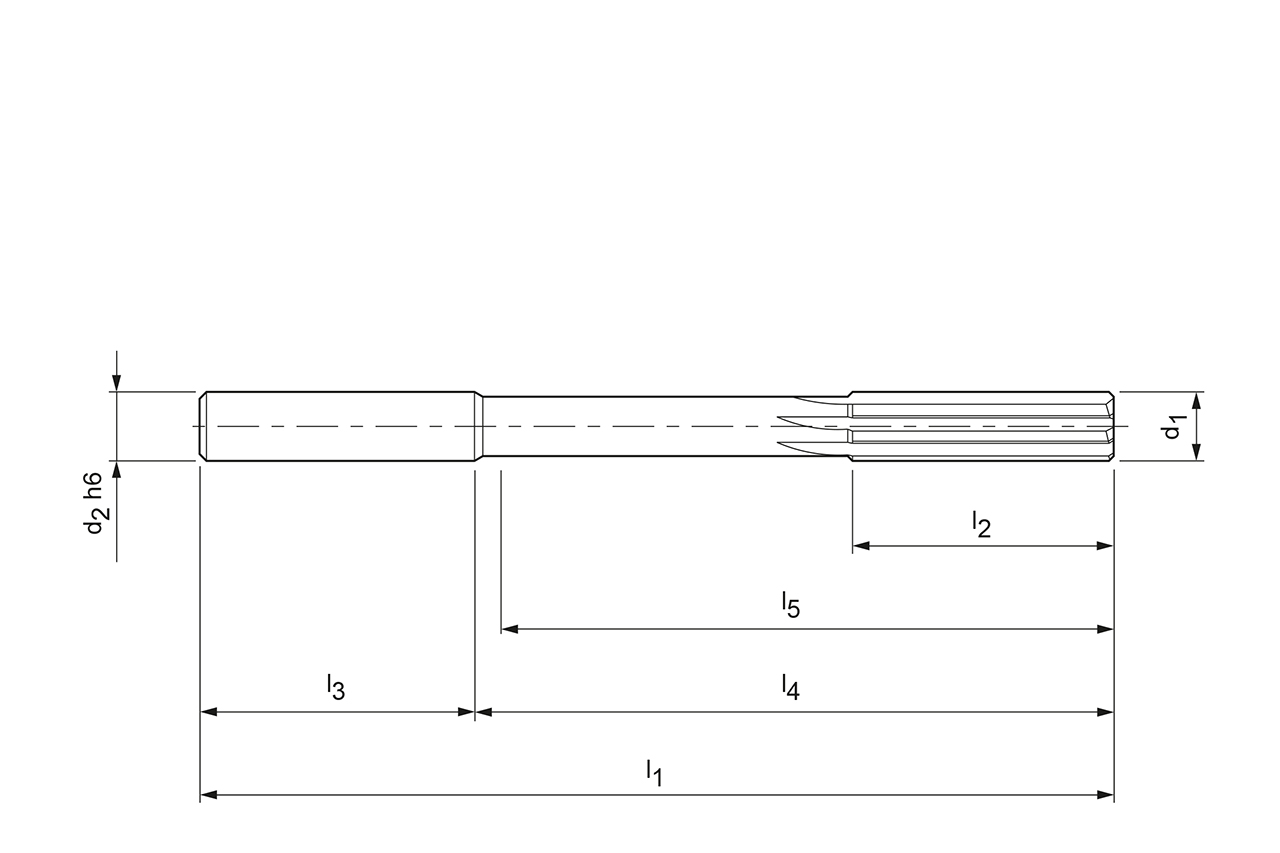

  • Technical drawing NC machine reamer

Diameter d1 (mm)

6.0

Your unit price

*Login required

Article

30930185

Quantity

Added to Your Shopping Cart

Product description

NC machine reamers are a particularly cost-effective option for the production of precise bores. While their performance data is below that of high-performance reamers, these tools are widely used because they are characterized by their quality and ease of use.

Material suitability

Technical specifications

Connection type
Cylindrical shank
Trennstellengröße
6
Bohrungsart
Durchgangs- & Grundbohrung
d1
6   mm
d2
6   mm
l1
93   mm
l2
26   mm
l3
36   mm
l4
0   mm
l5
53   mm
Toleranz
H7
Schneidstoff
HU613
Kühlmittelaustritt
externe Kühlmittelzufuhr
Anzahl Schneiden (z)
6
Materialgruppe
X4
Spezifikation
MDR500-8093-2AØ6.00H7-HU613
