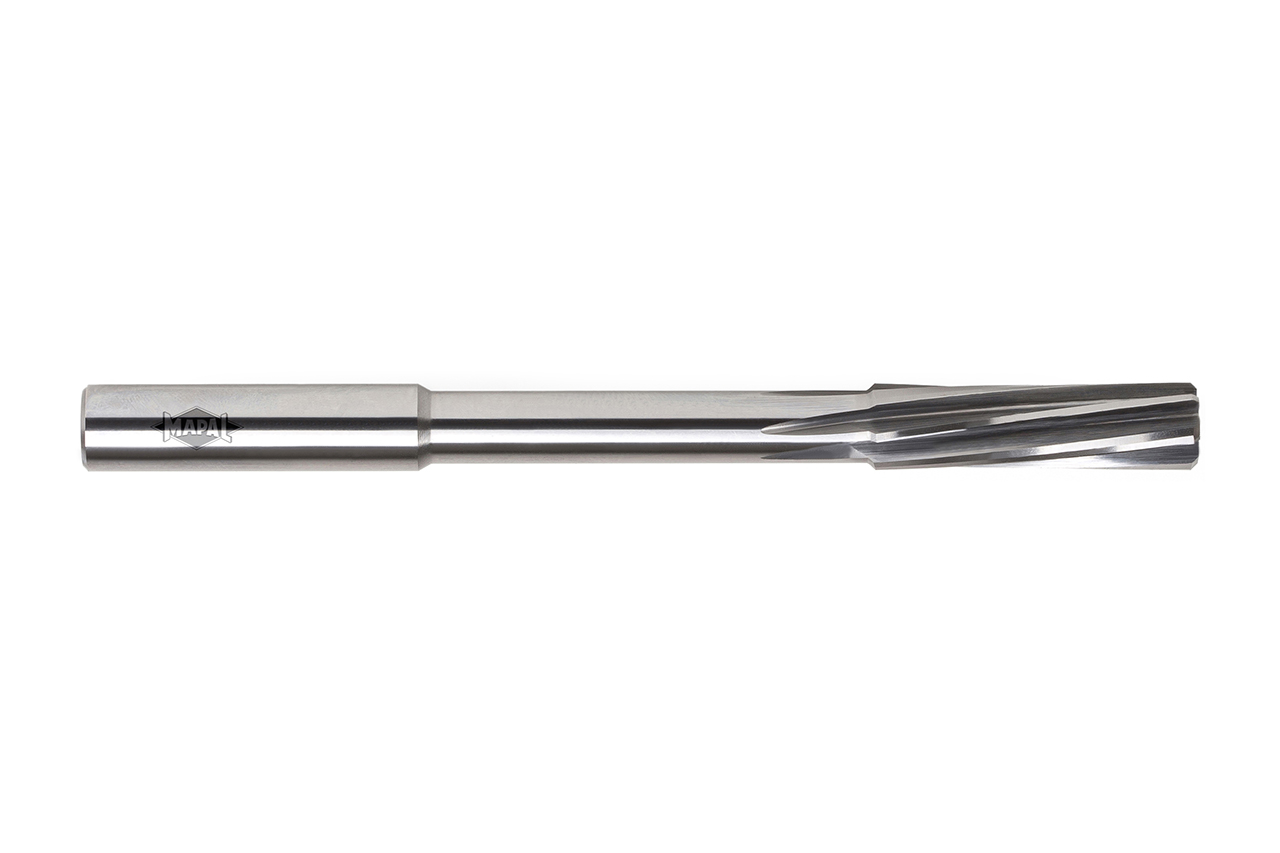

NC machine reamer

Diameter d1 (mm)

2.98

Your unit price

*Login required

Article

30929829

Quantity

Added to Your Shopping Cart

Inform me when article is back in stock

Product description

NC machine reamers are a particularly cost-effective option for the production of precise bores. While their performance data is below that of high-performance reamers, these tools are widely used because they are characterized by their quality and ease of use.

Material suitability

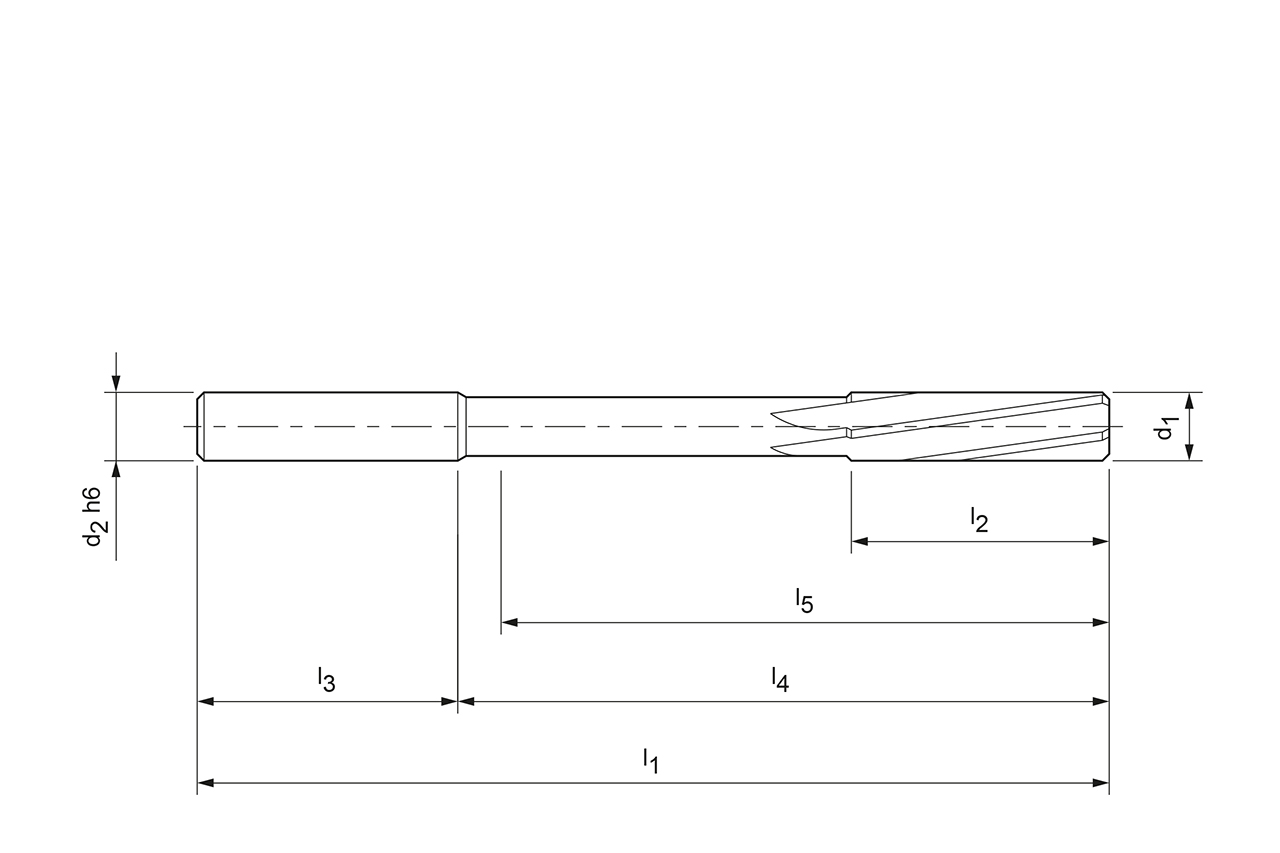

Technical specifications

Connection type: Cylindrical shank
Connection size: 4
Type of bore: Through bore
d1: 2.98 mm
d3: 4 mm
l1: 65 mm
l2: 17 mm
l3: 28 mm
l4: 0 mm
l5: 33 mm
Toleranz: +4
Schneidstoff: HU613
Kühlmittelaustritt: externe Kühlmittelzufuhr
Anzahl Schneiden (z): 6
Materialgruppe: X4
Spezifikation: MDR510G-80932BØ2.98+4-HU613
