NC machine reamer

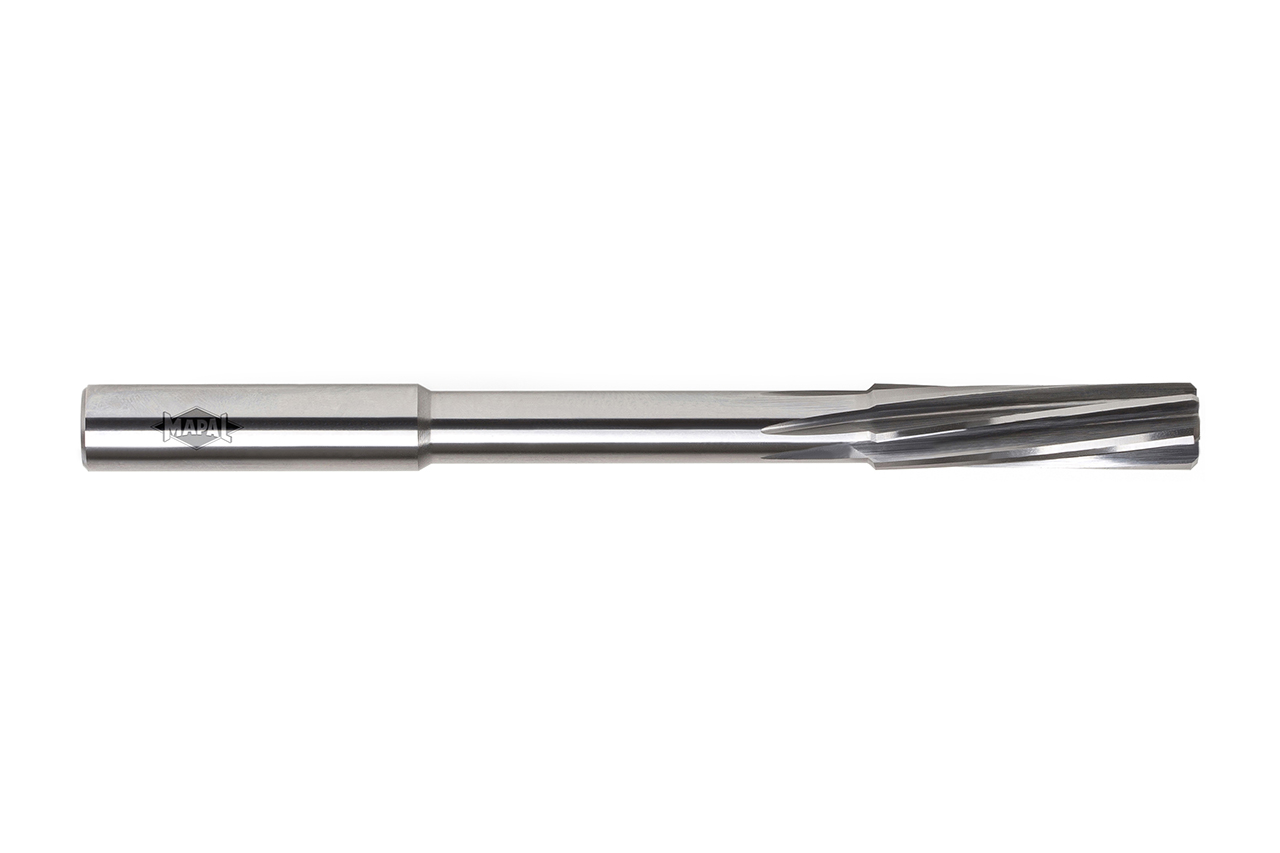

  • Product image NC machine reamer

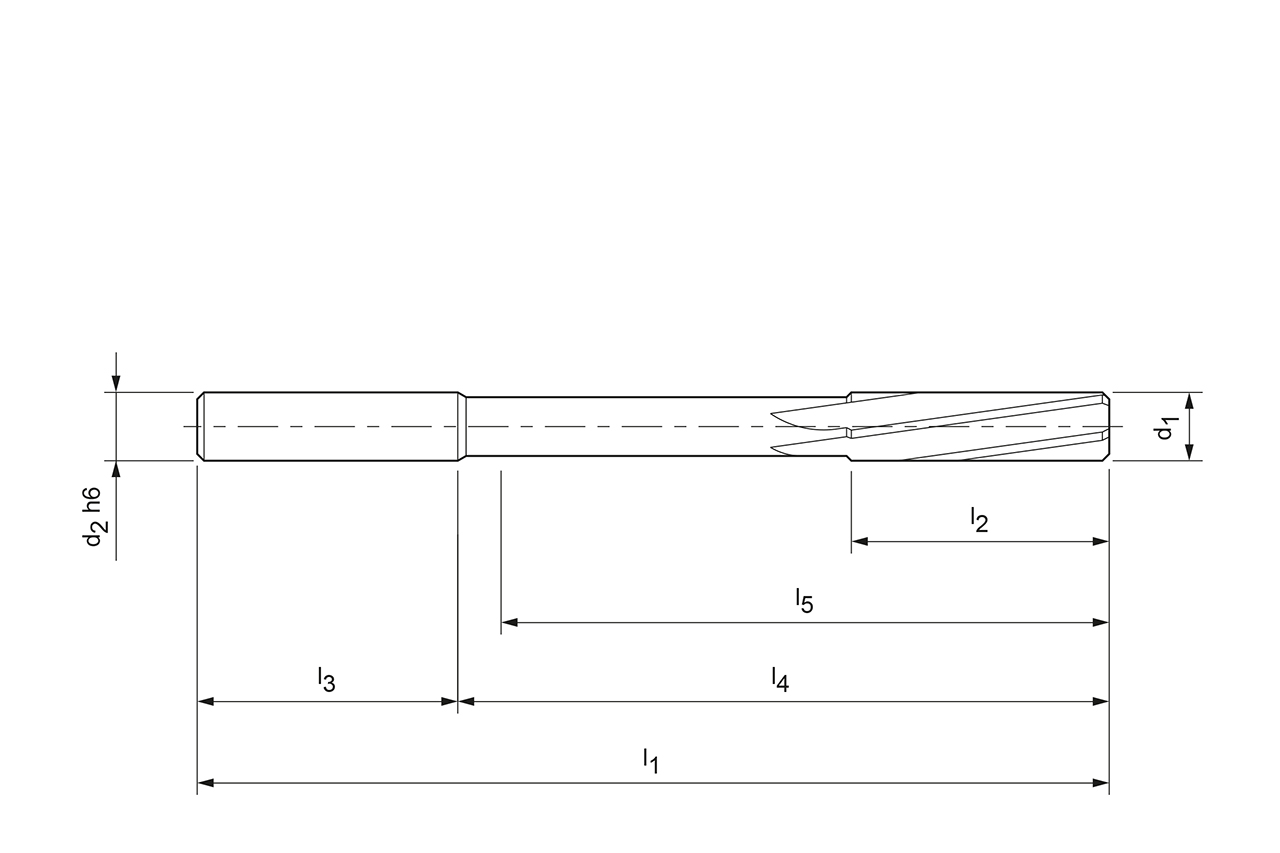

  • Technical drawing NC machine reamer

Diameter d1 (mm)

2.99

Your unit price

*Login required

Article

30929822

Quantity

Added to Your Shopping Cart

Product description

NC machine reamers are a particularly cost-effective option for the production of precise bores. While their performance data is below that of high-performance reamers, these tools are widely used because they are characterized by their quality and ease of use.

Material suitability

Technical specifications

Connection type
Cylindrical shank
Connection size
4
Type of bore
Through bore
d1
2.99   mm
d3
4   mm
l1
65   mm
l2
17   mm
l3
28   mm
l4
0   mm
l5
33   mm
Tolerance
+4
Cutting material
HU613
Cooling
external cooling
Number of cutting edges (z)
6
Material group
X4
Specification
MDR510G-80932BØ2.99+4-HU613
