NC machine reamer

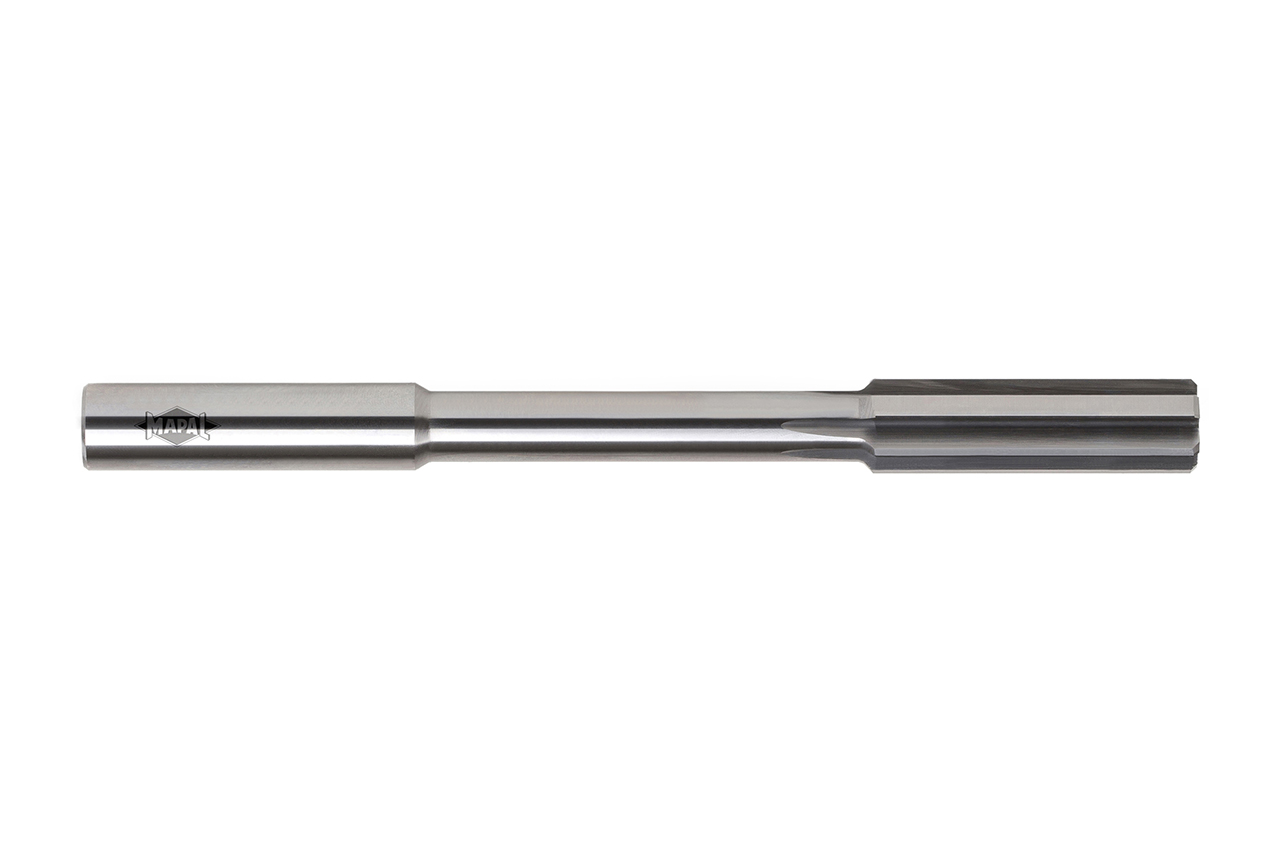

  • Product image NC machine reamer

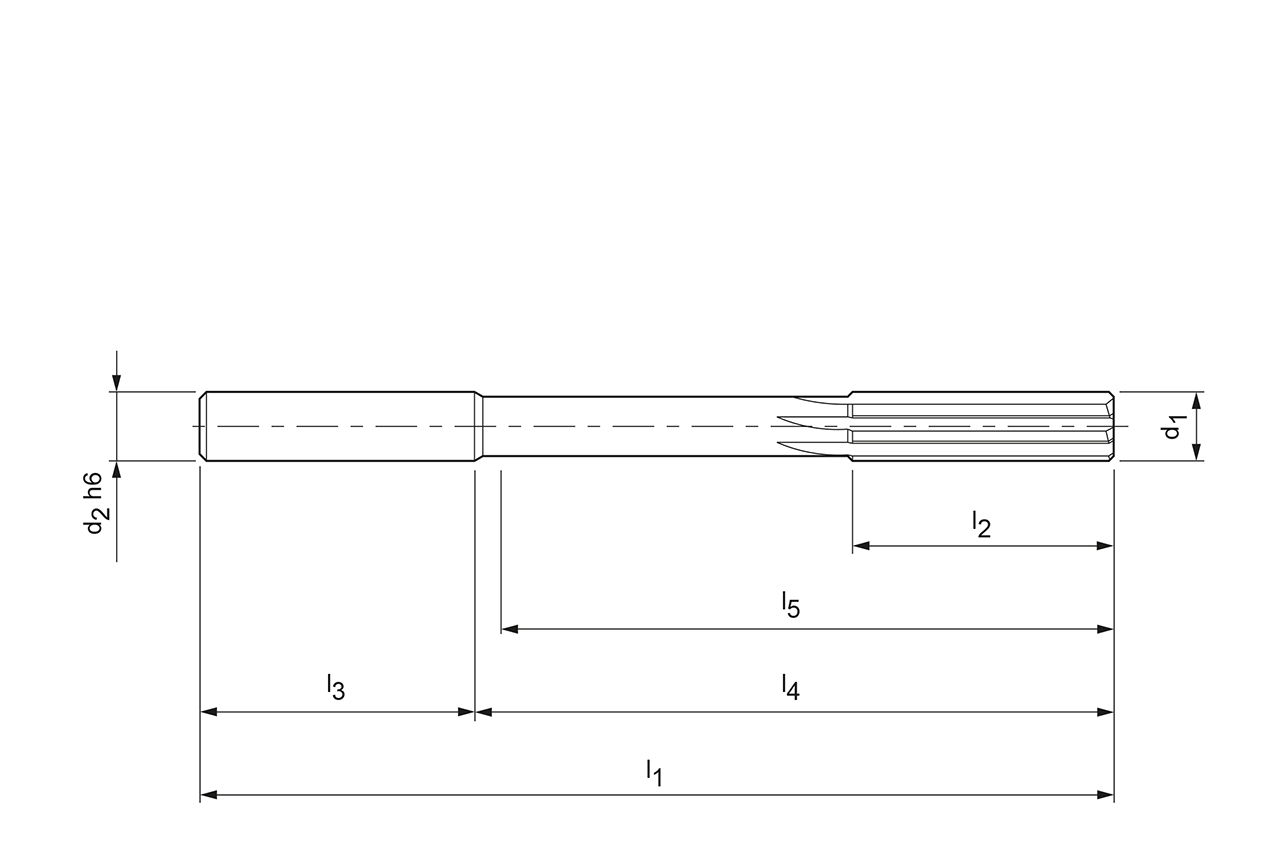

  • Technical drawing NC machine reamer

Durchmesser d1 (mm)

3.2

Ihr Stückpreis

*Login erforderlich

Bestellnummer

30719115

Menge

Ihrem Warenkorb hinzugefügt

Produktbeschreibung

NC machine reamers are a particularly cost-effective option for the production of precise bores. While their performance data is below that of high-performance reamers, these tools are widely used because they are characterized by their quality and ease of use.

Materialeignung

Technische Daten

Connection type
Cylindrical shank
Connection size
4
Type of bore
für Durchgangs- und Sackloch
d1
3.2   mm
d3
4   mm
l1
65   mm
l2
18   mm
l3
28   mm
l4
0   mm
l5
33   mm
Tolerance
H7
Cutting material
HU613
Cooling
external cooling
Number of cutting edges (z)
6
Material group
X4
Specification
MDR500-8093-2AØ3.2H7-HU613
