NC machine reamer

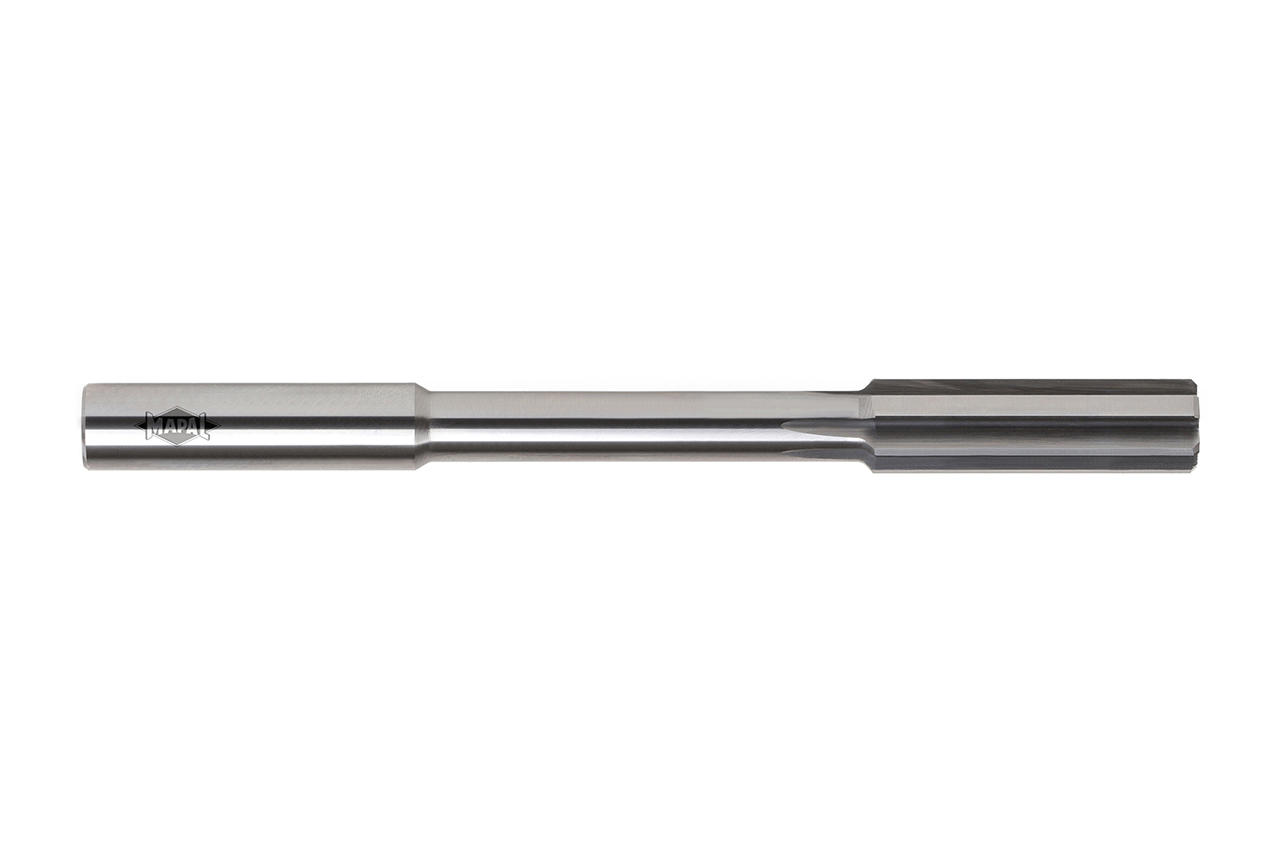

  • Product image NC machine reamer

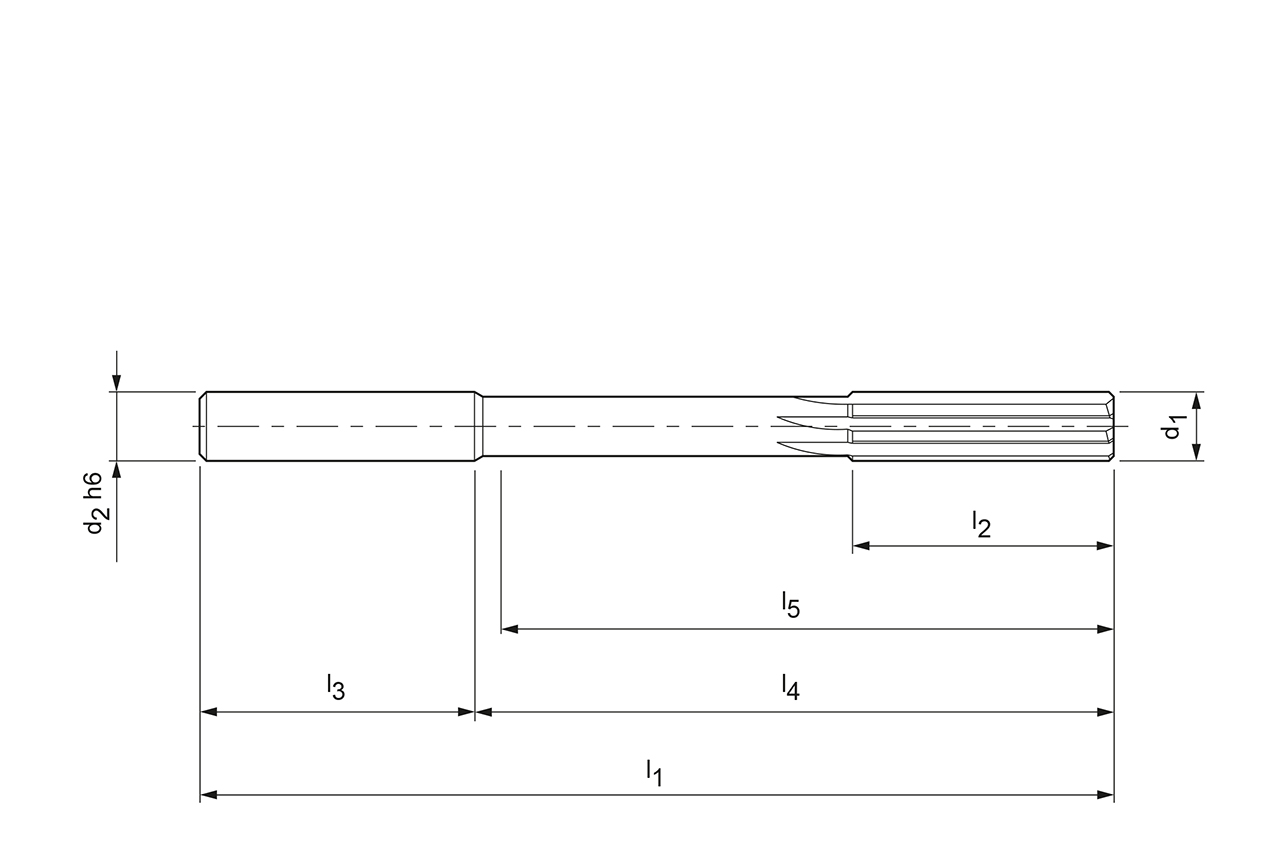

  • Technical drawing NC machine reamer

Diameter d1 (mm)

2.2

Your unit price

*Login required

Article

30719112

Quantity

Added to Your Shopping Cart

Product description

NC machine reamers are a particularly cost-effective option for the production of precise bores. While their performance data is below that of high-performance reamers, these tools are widely used because they are characterized by their quality and ease of use.

Material suitability

Technical specifications

Connection type
Cylindrical shank
Connection size
3
Type of bore
Through & blind bore
d1
2.2   mm
d2
3   mm
l1
50   mm
l2
12   mm
l3
28   mm
l4
0   mm
l5
18.5   mm
Toleranz
H7
Schneidstoff
HU613
Kühlmittelaustritt
externe Kühlmittelzufuhr
Anzahl Schneiden (z)
4
Materialgruppe
X4
Spezifikation
MDR500-8093-2AØ2.2H7-HU613
