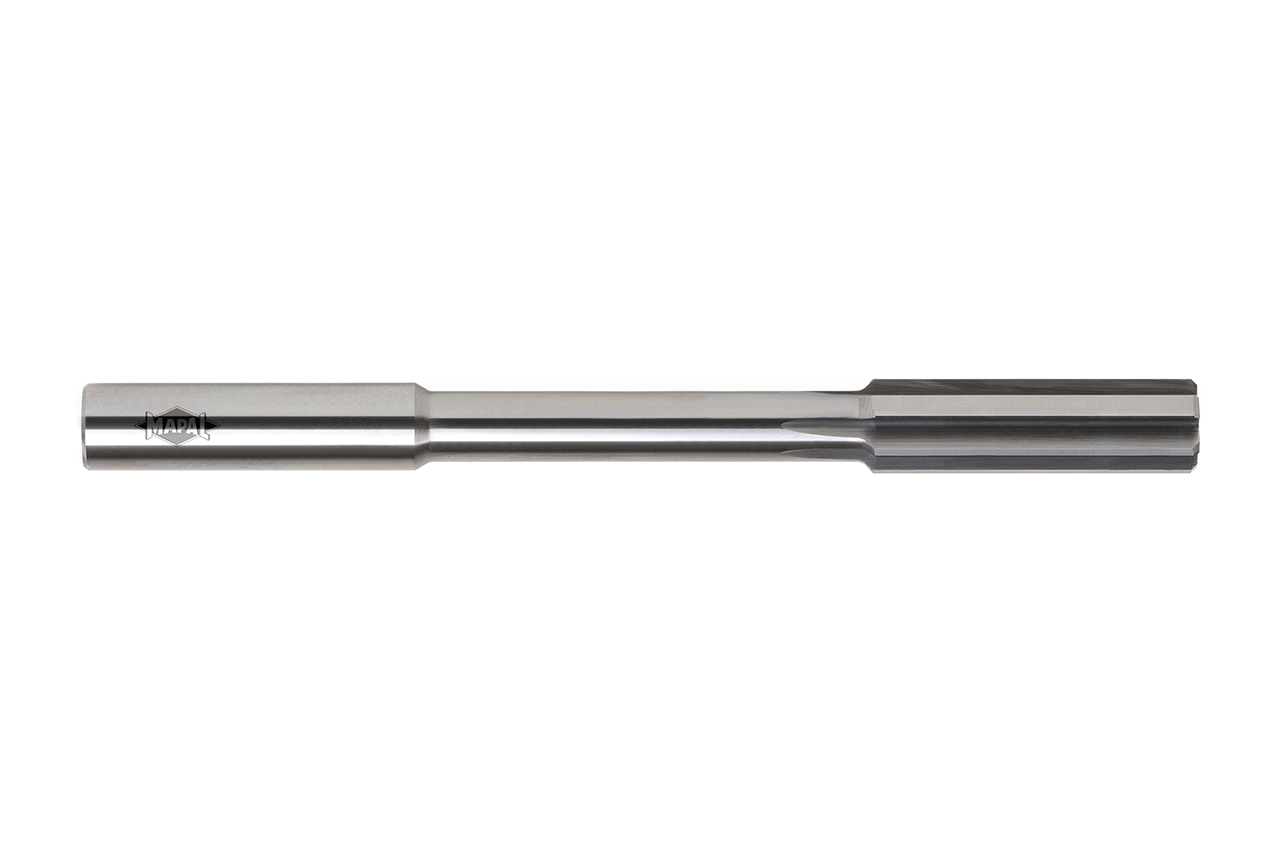

NC machine reamer
Diameter d1 (mm)
2.0
Your unit price
*Login requiredProduct description
NC machine reamers are a particularly cost-effective option for the production of precise bores. While their performance data is below that of high-performance reamers, these tools are widely used because they are characterized by their quality and ease of use.
Technical specifications
- Connection type
- Cylindrical shank
- Connection size
- 0030
- Type of bore
- Through & blind bore

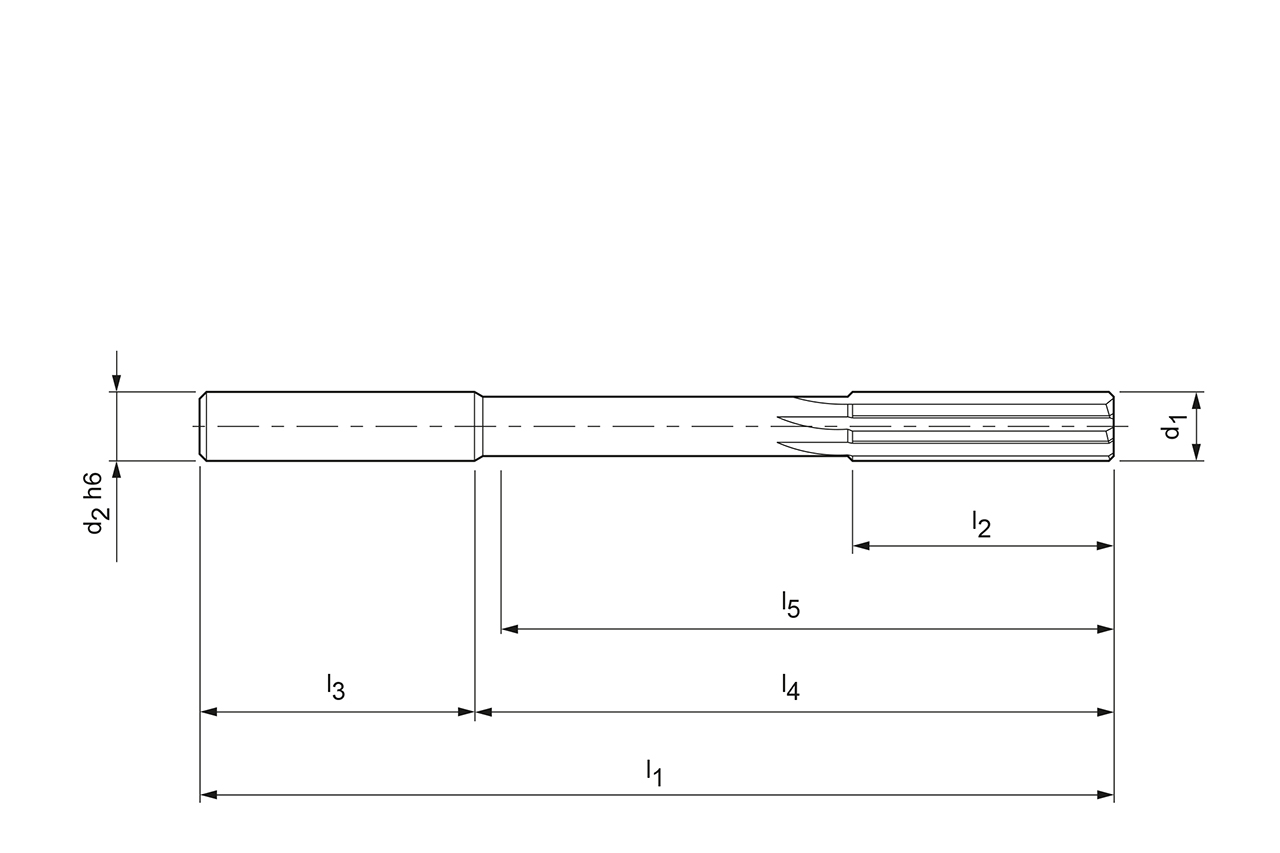

- d1
- 2 mm
- d3
- 3 mm
- l1
- 50 mm
- l2
- 12 mm
- l3
- 28 mm
- l4
- 0 mm
- l5
- 18.5 mm
- Tolerance
- H7
- Cutting material
- HU613
- Cooling
- external cooling
- Number of cutting edges (z)
- 4
- Material group
- X4
- Specification
- MDR500-8093-2AØ2H7-HU613
Downloads
- 3D envelope in stp
- 30719111_607536820-000-00-E43.STP
- Technical drawing in pdf
- 30719111_607503673-000-00-ED1.PDF
- Technical drawing in dxf
- 30719111_607503673-000-00-ED1.DXF
- Technical drawing in tif
- 30719111_607503673-000-00-ED1.TIF
