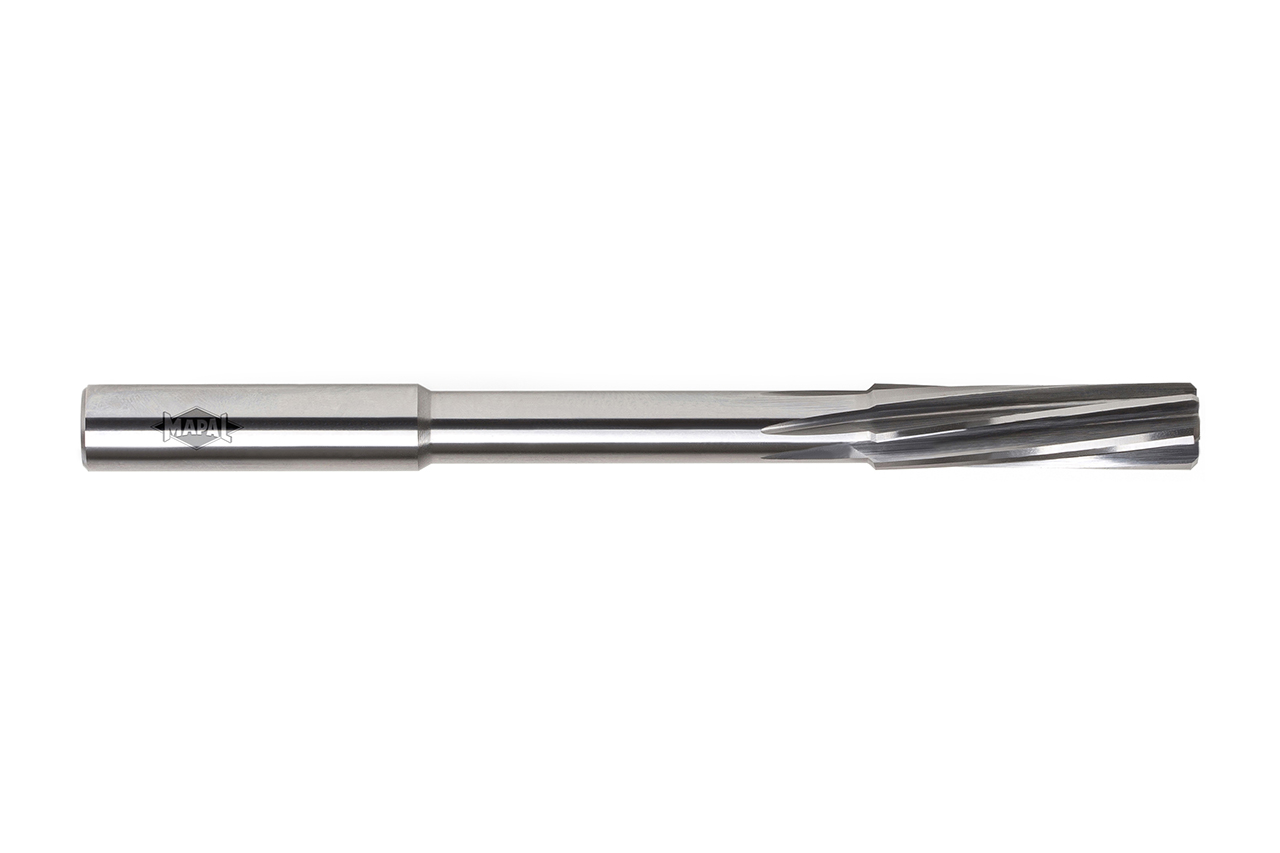

NC machine reamer

Diameter d1 (mm)

12.01

Your unit price

*Login required

Article

30712970

Quantity

Added to Your Shopping Cart

Inform me when article is back in stock

Product description

NC machine reamers are a particularly cost-effective option for the production of precise bores. While their performance data is below that of high-performance reamers, these tools are widely used because they are characterized by their quality and ease of use.

Material suitability

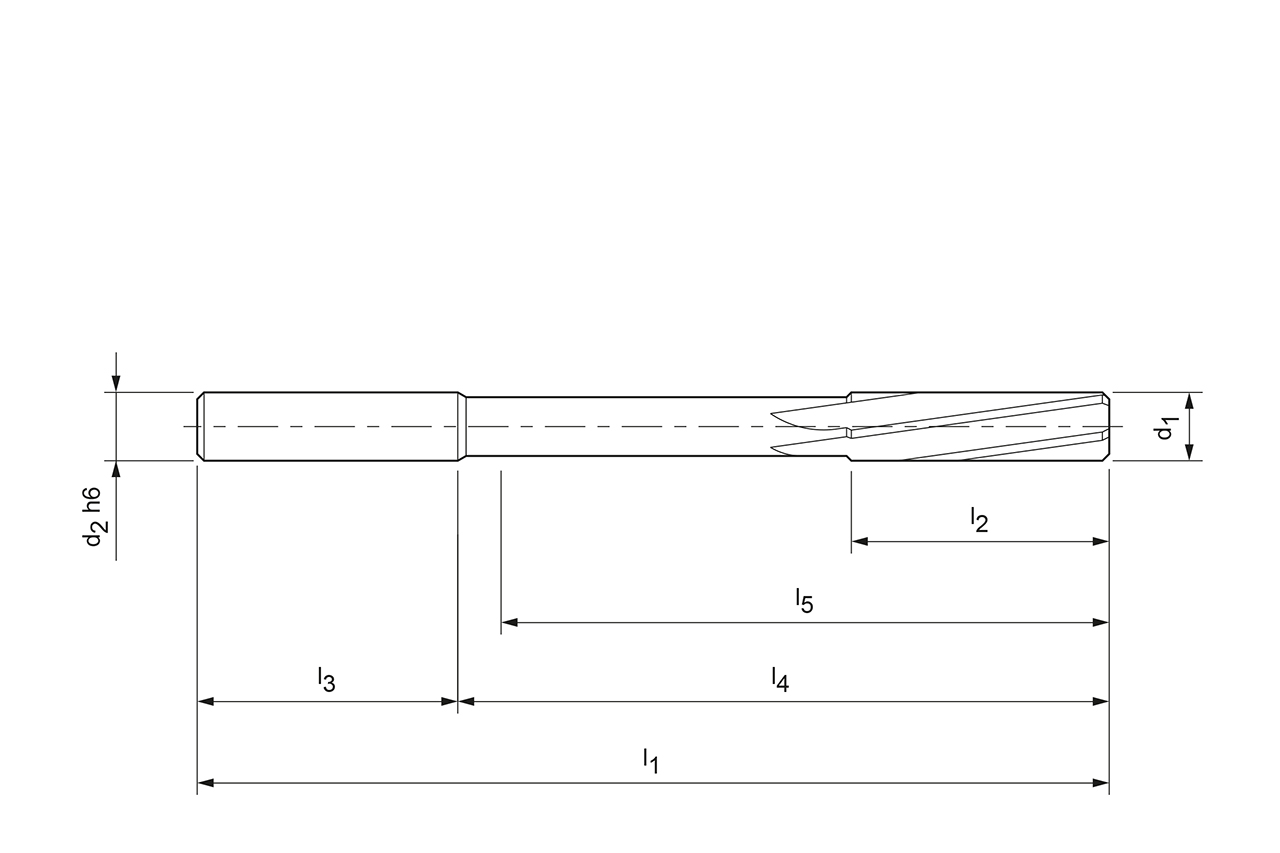

Technical specifications

Connection type: Cylindrical shank
HFS connection size: 12
Type of bore: Through bore
d1: 12.01 mm
d3: 12 mm
l1: 151 mm
l2: 44 mm
l3: 45 mm
l4: 0 mm
l5: 100 mm
Tolerance: +4
Cutting material: HU613
Number of cutting edges (z): 6
Material group: X4
