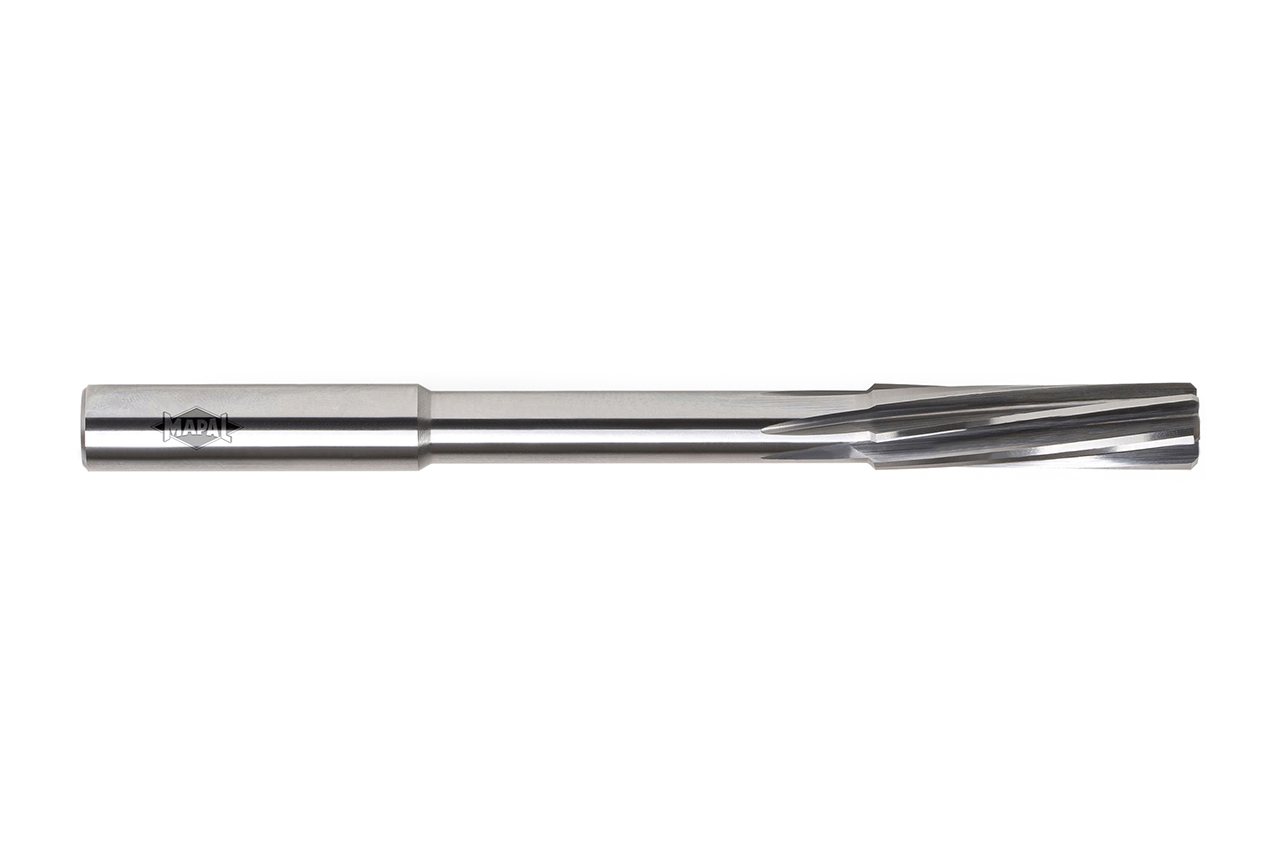

NC machine reamer

Durchmesser d1 (mm)

11.0

Ihr Stückpreis

*Login erforderlich

Bestellnummer

30712965

Menge

Ihrem Warenkorb hinzugefügt

Produktbeschreibung

NC machine reamers are a particularly cost-effective option for the production of precise bores. While their performance data is below that of high-performance reamers, these tools are widely used because they are characterized by their quality and ease of use.

Materialeignung

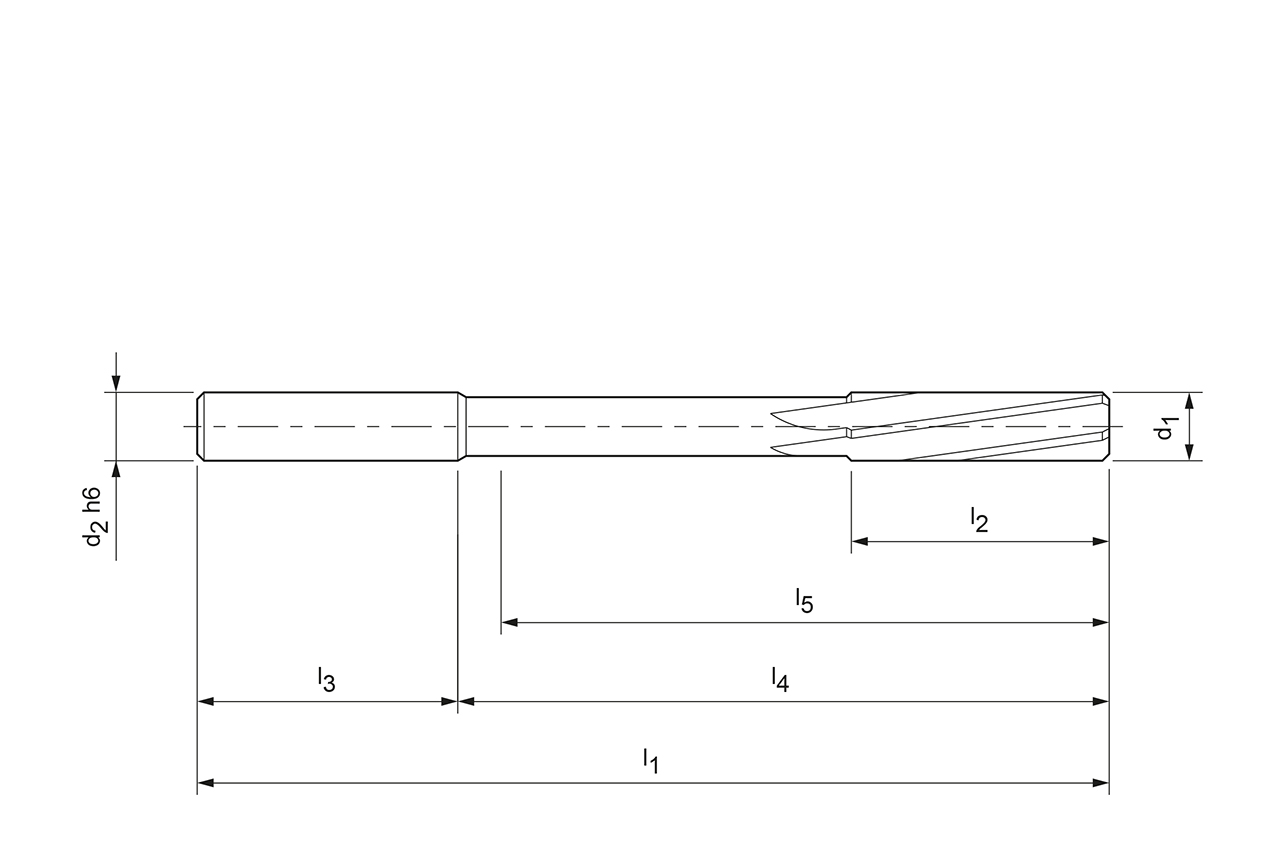

Technische Daten

Trennstelle: Zylinderschaft
Trennstellengröße: 10
Type of bore: Trough bore
d1: 11 mm
d3: 10 mm
l1: 142 mm
l2: 41 mm
l3: 40 mm
l4: 0 mm
l5: 97 mm
Tolerance: H7
Cutting material: HU613
Cooling: external
Number of cutting edges (z): 6
Material group: X4
Specification: MDR510-8093-2BØ11H7-HU613
