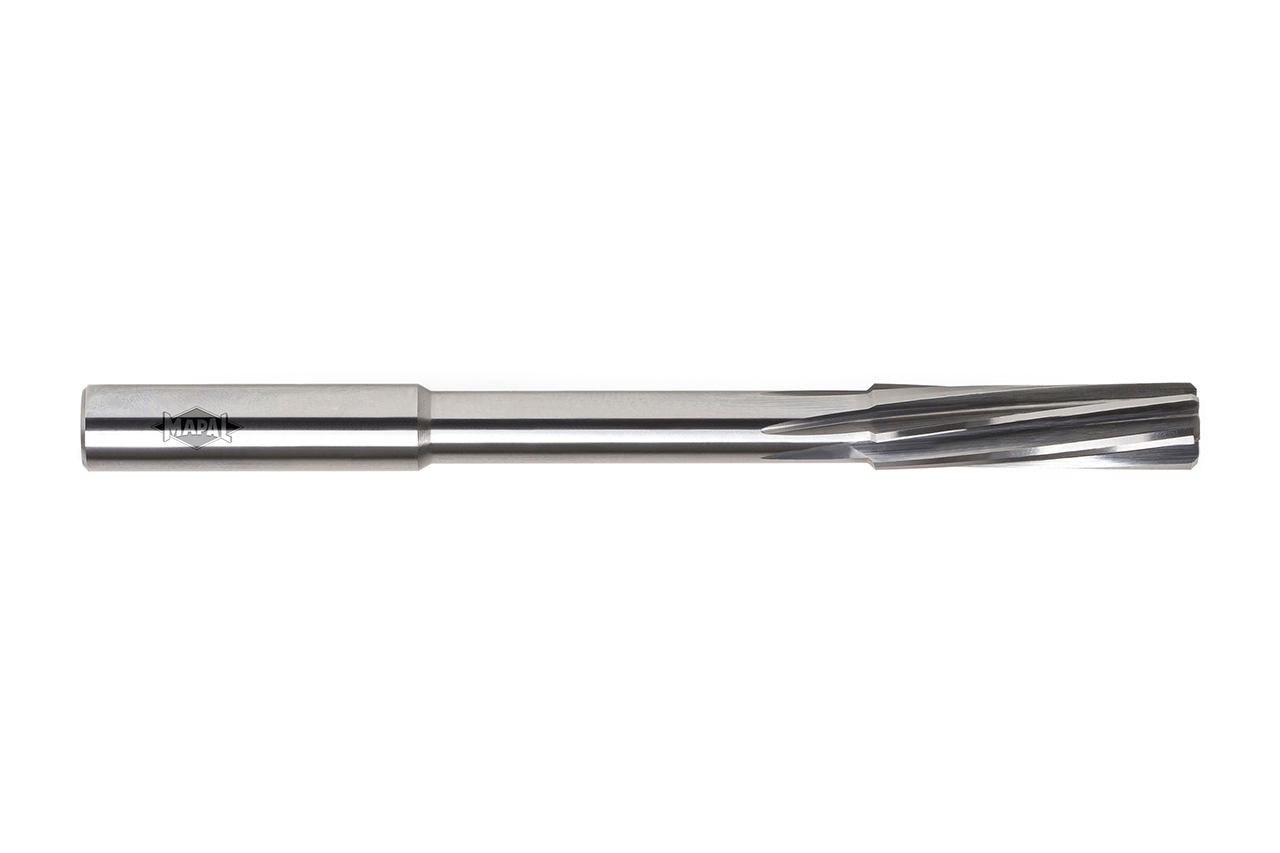

NC machine reamer

Diameter d1 (mm)

9.99

Your unit price

*Login required

Article

30712957

Quantity

Added to Your Shopping Cart

Product description

NC machine reamers are a particularly cost-effective option for the production of precise bores. While their performance data is below that of high-performance reamers, these tools are widely used because they are characterized by their quality and ease of use.

Material suitability

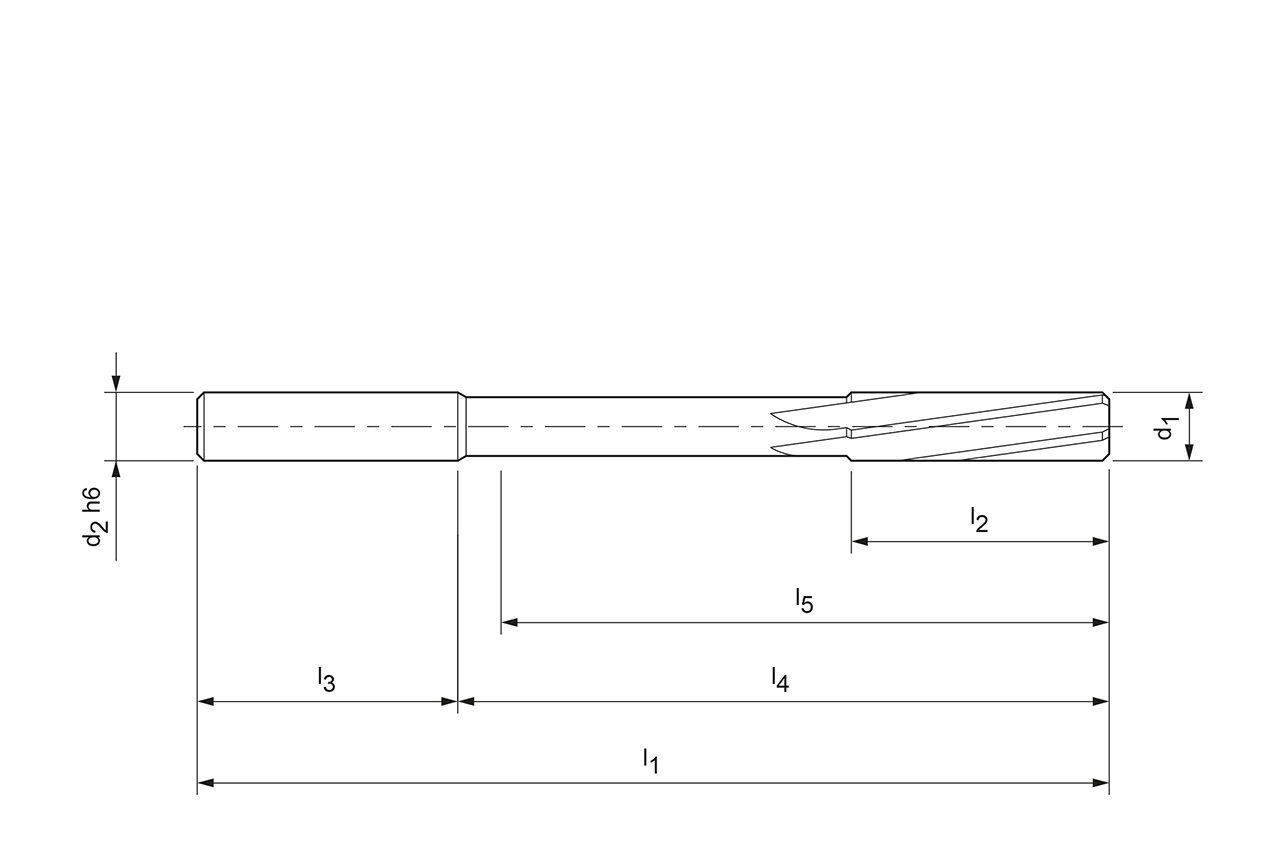

Technical specifications

Connection type: Cylindrical shank
HFS connection size: 10
Type of bore: Through bore
d1: 9.99 mm
d3: 10 mm
l1: 133 mm
l2: 38 mm
l3: 40 mm
l4: 0 mm
l5: 88 mm
Tolerance: +4
Cutting material: HU613
Number of cutting edges (z): 6
Material group: X4
