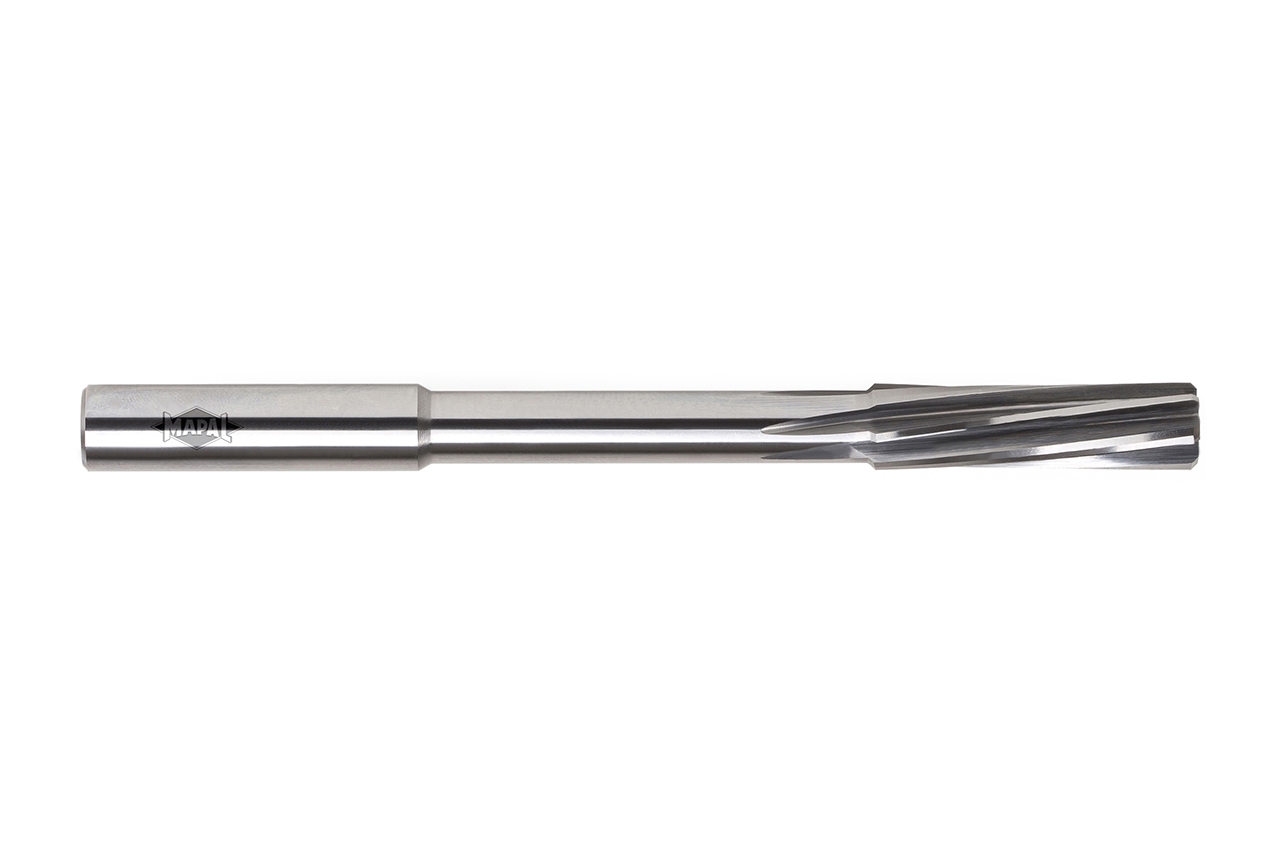

NC machine reamer

Durchmesser d1 (mm)

8.03

Your unit price

*Login erforderlich

Article

30712950

Quantity

Added to Your Shopping Cart

Product description

NC machine reamers are a particularly cost-effective option for the production of precise bores. While their performance data is below that of high-performance reamers, these tools are widely used because they are characterized by their quality and ease of use.

Material suitability

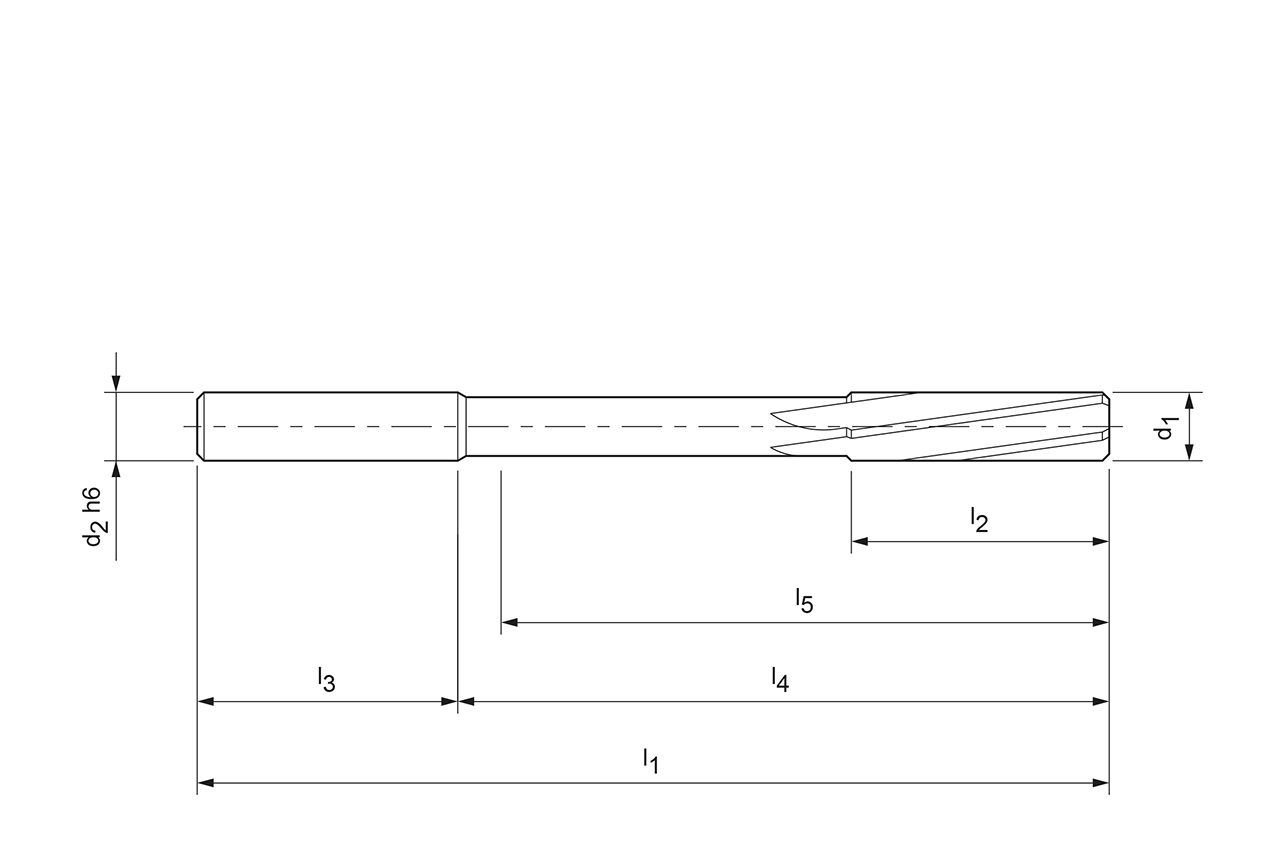

Technical specifications

Trennstelle: Zylinderschaft
Trennstellengröße: 8
Bohrungsart: Durchgangsbohrung
d1: 8.03 mm
d2: 8 mm
l1: 117 mm
l2: 33 mm
l3: 36 mm
l4: 0 mm
l5: 77 mm
Toleranz: +4
Schneidstoff: HU613
Kühlmittelaustritt: externe Kühlmittelzufuhr
Anzahl Schneiden (z): 6
Materialgruppe: X4
Spezifikation: MDR510G-8093-2BØ8.03+4-HU613
