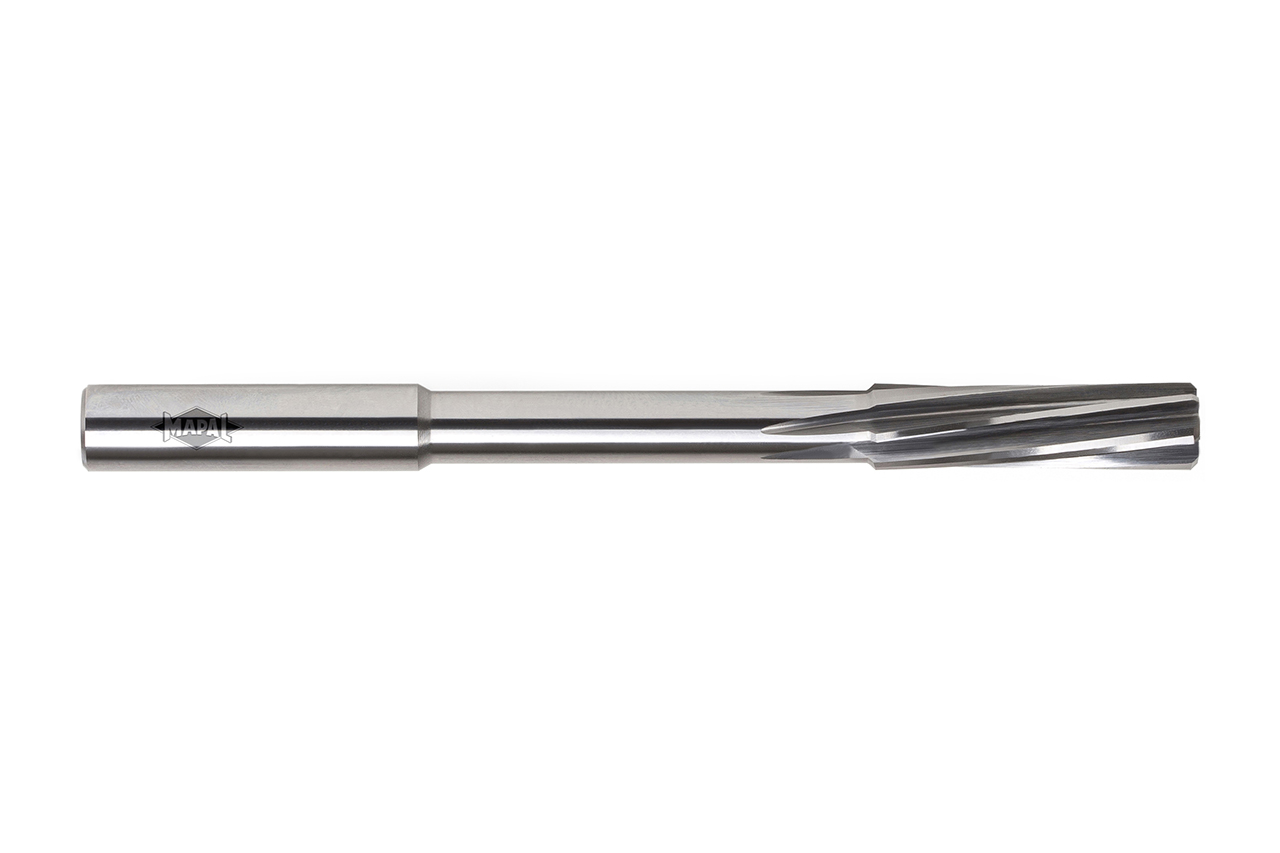

NC machine reamer
Diameter d1 (mm)
6.0
Your unit price
*Login requiredProduct description
NC machine reamers are a particularly cost-effective option for the production of precise bores. While their performance data is below that of high-performance reamers, these tools are widely used because they are characterized by their quality and ease of use.
Technical specifications
- Connection type
- Cylindrical shank
- Connection size
- 0060
- Type of bore
- Through bore

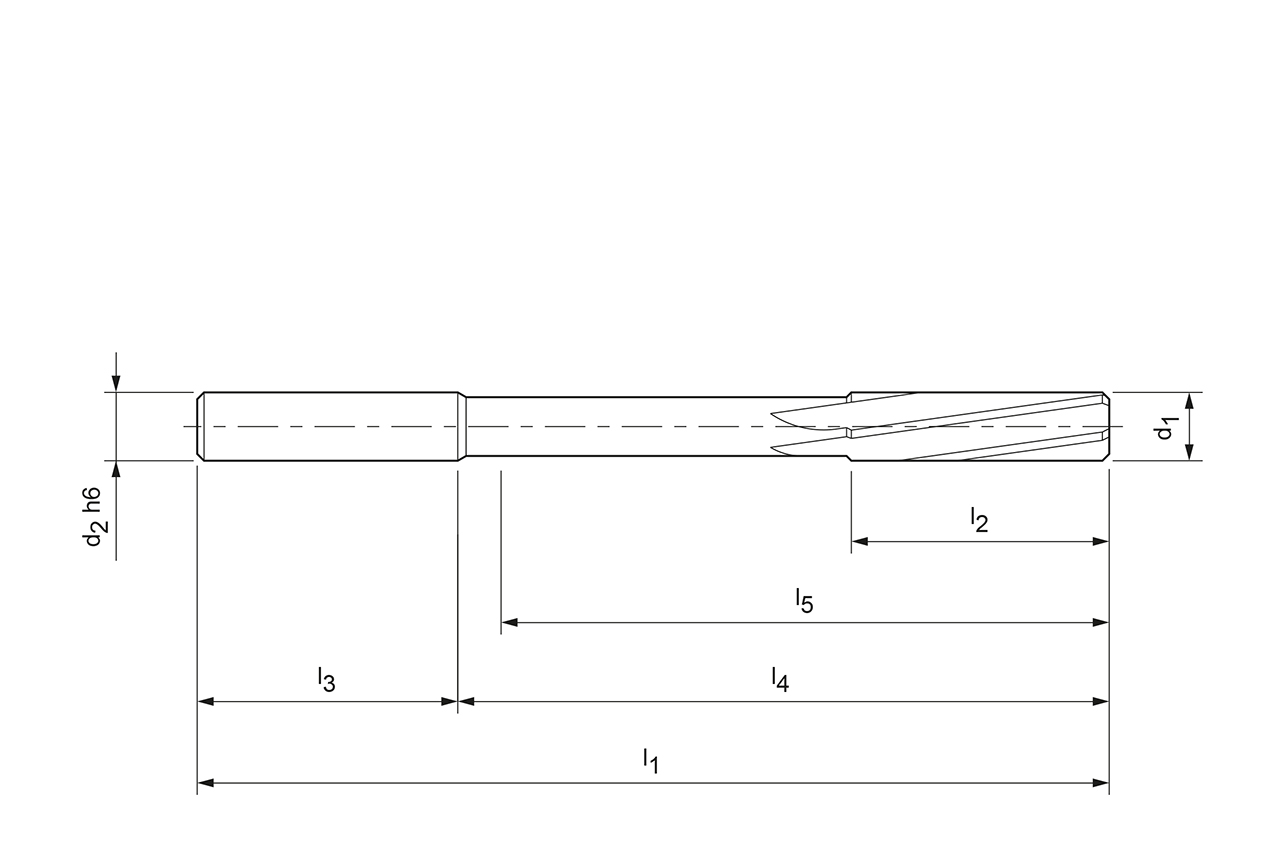

- d1
- 6 mm
- d3
- 6 mm
- l1
- 93 mm
- l2
- 26 mm
- l3
- 36 mm
- l4
- 0 mm
- l5
- 53 mm
- Tolerance
- H7
- Cutting material
- HU613
- Cooling
- external cooling
- Number of cutting edges (z)
- 6
- Material group
- X4
- Specification
- MDR510-8093-2BØ6H7-HU613
Downloads
- Technical drawing in tif
- 30712937_608236413-000-00-ED1.TIF
- Technical drawing in dxf
- 30712937_608236413-000-00-ED1.DXF
- Technical drawing in pdf
- 30712937_608236413-000-00-ED1.PDF
- 3D envelope in stp
- 30712937_608236414-000-00-E43.STP
