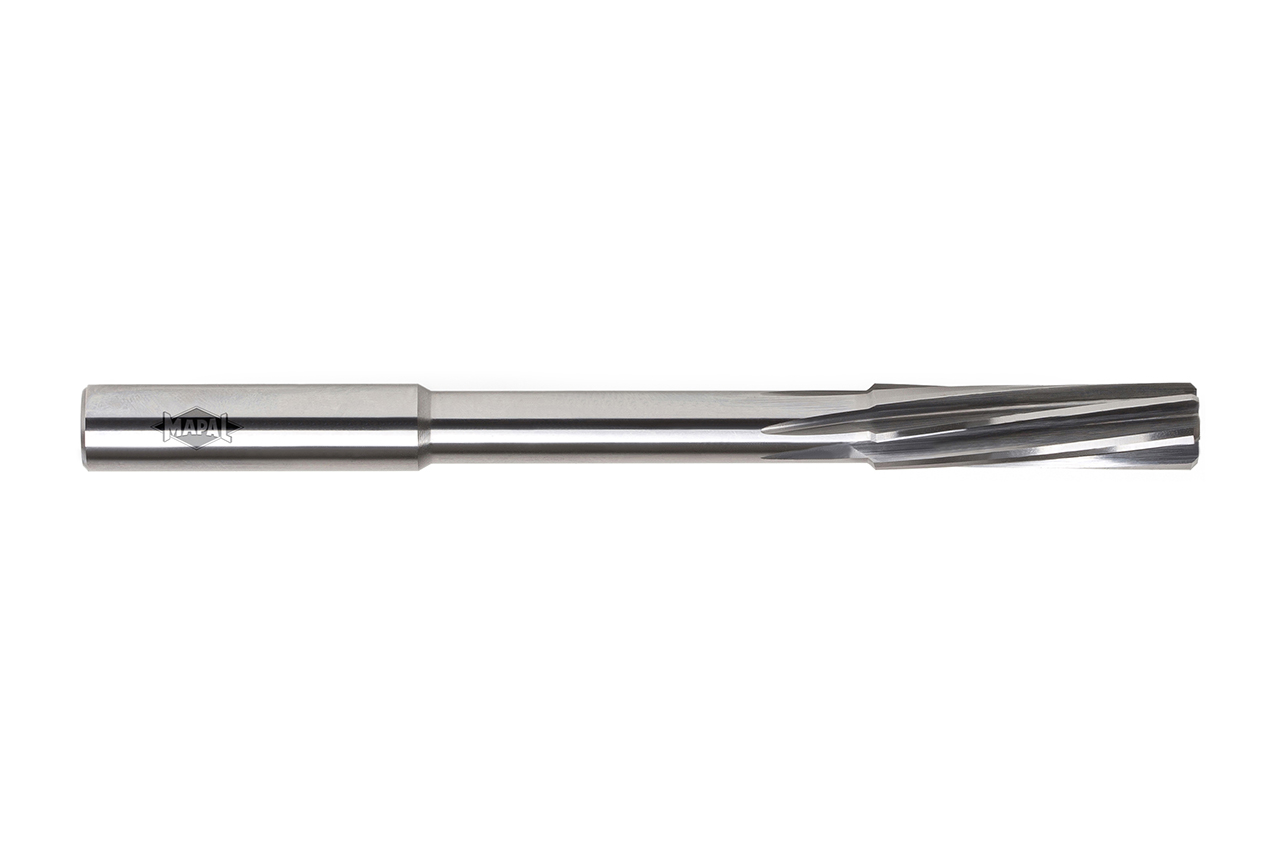

NC machine reamer

Diameter d1 (mm)

4.99

Your unit price

*Login required

Article

30712928

Quantity

Added to Your Shopping Cart

Product description

NC machine reamers are a particularly cost-effective option for the production of precise bores. While their performance data is below that of high-performance reamers, these tools are widely used because they are characterized by their quality and ease of use.

Material suitability

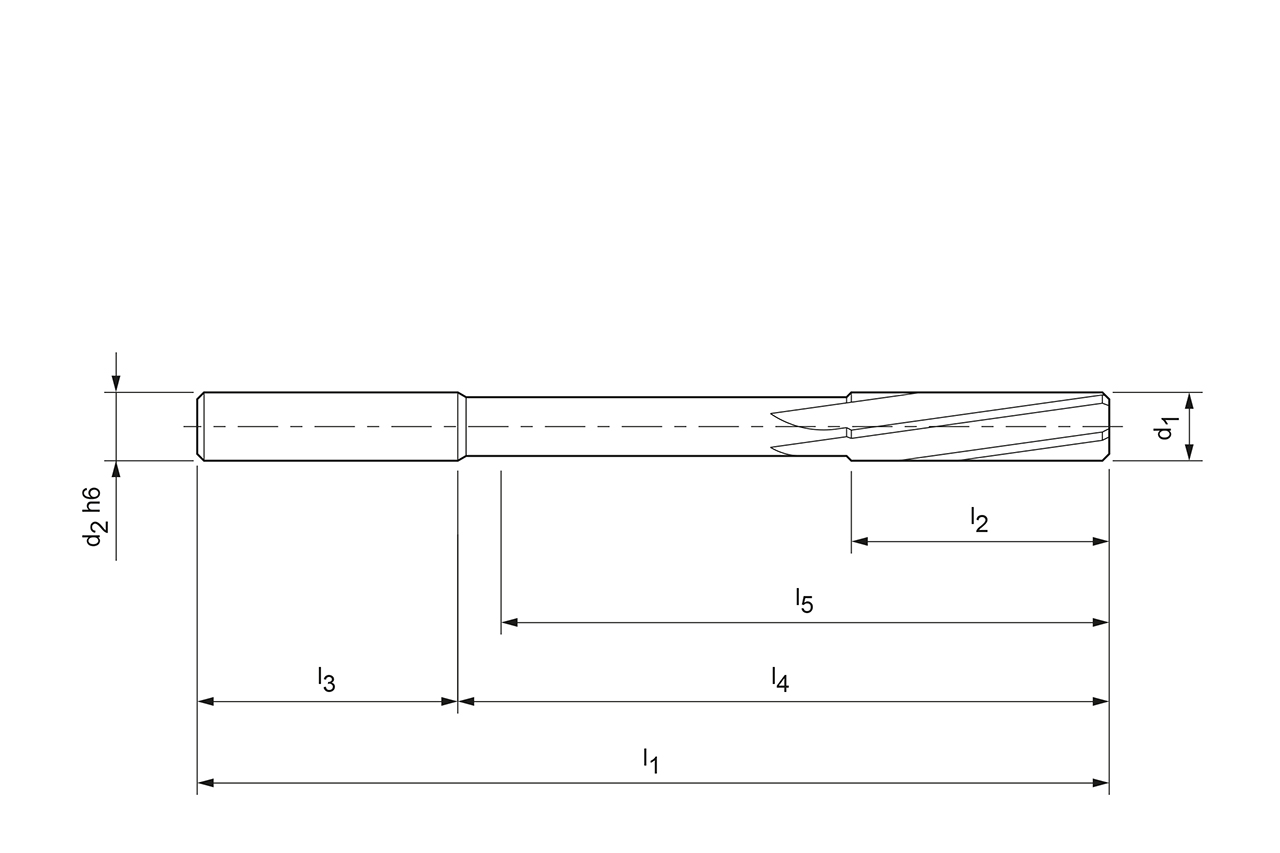

Technical specifications

Connection type: Cylindrical shank
HFS connection size: 0060
Type of bore: Through bore
d1: 4.99 mm
d3: 6 mm
l1: 93 mm
l2: 23 mm
l3: 36 mm
l4: 0 mm
l5: 52 mm
Tolerance: +4
Cutting material: HU613
Number of cutting edges (z): 6
Material group: X4
